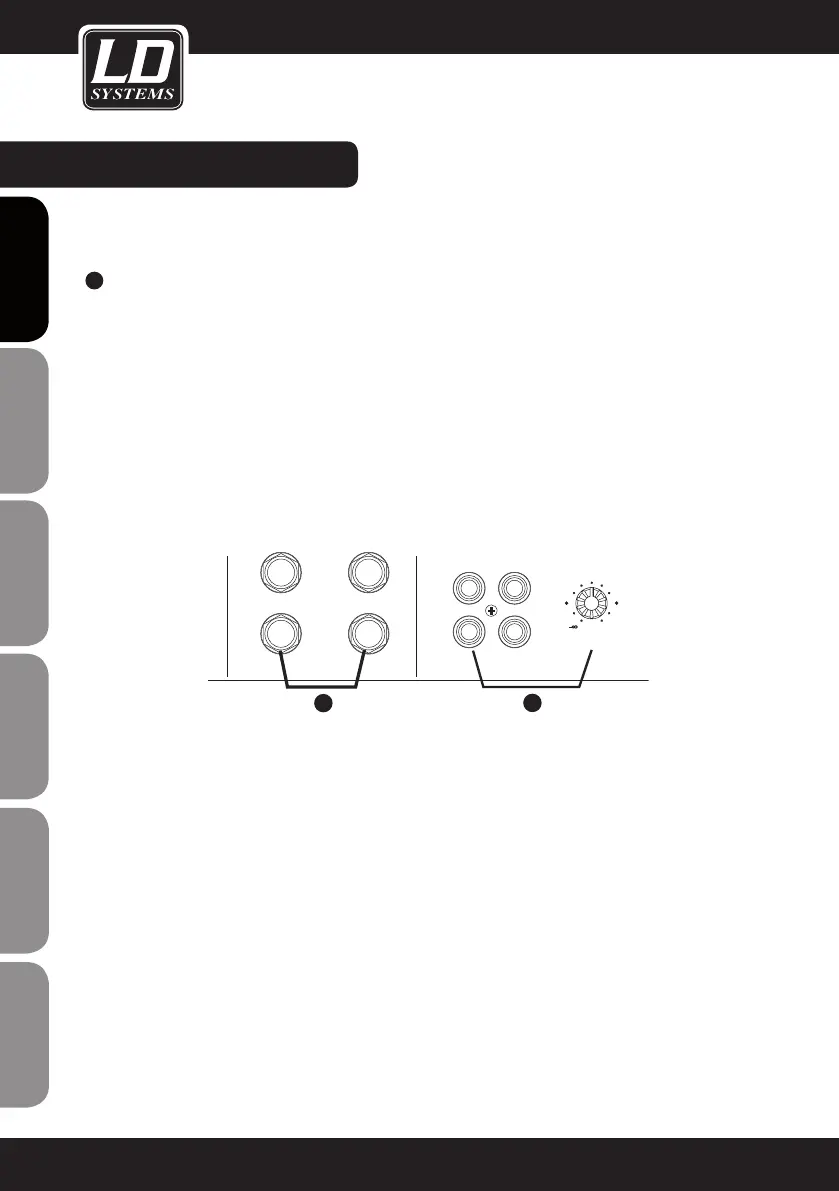

STEREO AUX RETURNS
These 6.3 mm jack (TRS) sockets are primarily used to return the audio signal from an external effects processer
to the mixer (MAIN MIX). In addition, these connectors can be used as additional AUX inputs. Note: If no connector
is plugged into Aux Return 2, the signal of the internal effects processor is present on Aux Return 2.
