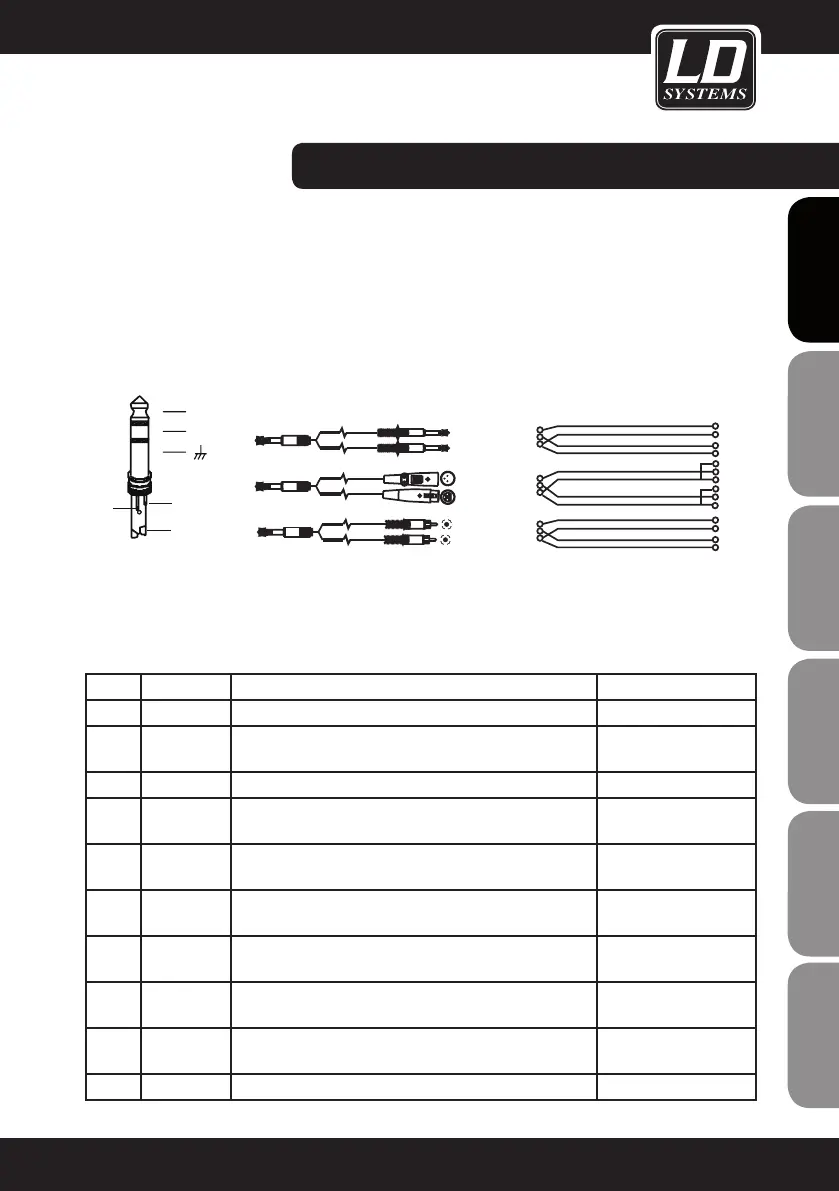

WIRING CONFIGURATION / PRESET
LIST:
BALANCED
UNBALANCED
INSERT CONNECTION
When connecting external signal processors via the main insert on the mixer, one TRS cable is required for each
send/return. The conguration of this so-called "Y" cable is depicted below.
FOR 6.3 MM STEREO PLUGS (TRS INSERT)
INSERT CABLE
Send
Return
Tip
Ring
Sleeve
2
1
3
12
3
TIP RING SLEEVE
TIP RING SLEEVE
SLEEVE TIP
SLEEVE RING TIP
TIP RING SLEEVE
Centre (Send)
Screen
Centre (Return)
Screen
Tip
Ring
Sleeve
Tip (Send)
Sleeve
Sleeve
Tip
Ring
Sleeve
1
2 (Send)
3
1
2 (Return)
3
Tip
Ring
Sleeve
Tip (Return)
NO. PRESET DESCRIPTION PARAMETER
00-09 Echo The input signal is sent to the output with a time delay Delay time: 145 - 205 ms
10-19 Echo+Verb Echo with room effect (hall) Delay time: 208 - 650 ms
Decay time: 1.7 - 2.1 s
20-29 Tremolo Amplitude modulation of the signal Rate: 0.6 Hz - 5 Hz
30-39 Plate Hall effect: Simulation of the classic plate vocal effect
(adds brightness)
Decay time: 0.9 s ~ 3.6 s
40-49 Chorus Creates the illusion of multiple instruments (voices) on the basis of a
single signal
Rate: 0.92 Hz ~ 1.72 Hz
50-59 Vocal Hall effect: Simulation of a small room with a short decay time Rev. decay time: 0.8 ~ 0.9 s
Pre-delay: 0 - 45 ms
60-69 Rotary Simulation of typical rotary speaker effect incl. bass box Modulation depth :
20% ~ 80%
70-79 Small room Hall effect: Simulation of a bright studio room effect Decay time: 0.7 ~ 2.1 s
Pre-delay : 20 - 45 ms
80-89 Flanger + Verb Combination of a modulated delay effect plus hall Decay time: 1.5 ~ 2.9 s
Rate : 0.8 Hz ~ 2.52 Hz
90-99 Large hall Hall effect: Simulation of a large room Pre-delay : 23 ~ 55 ms
17
