LDEB82G3WMB (suitable for LDEB82G3, LDEB82AG3)
LDEB102G3WMB (suitable for LDEB102G3, LDEB102AG3)
LDEB282G3WMB (suitable for LDEB282G3, LDEB282AG3)

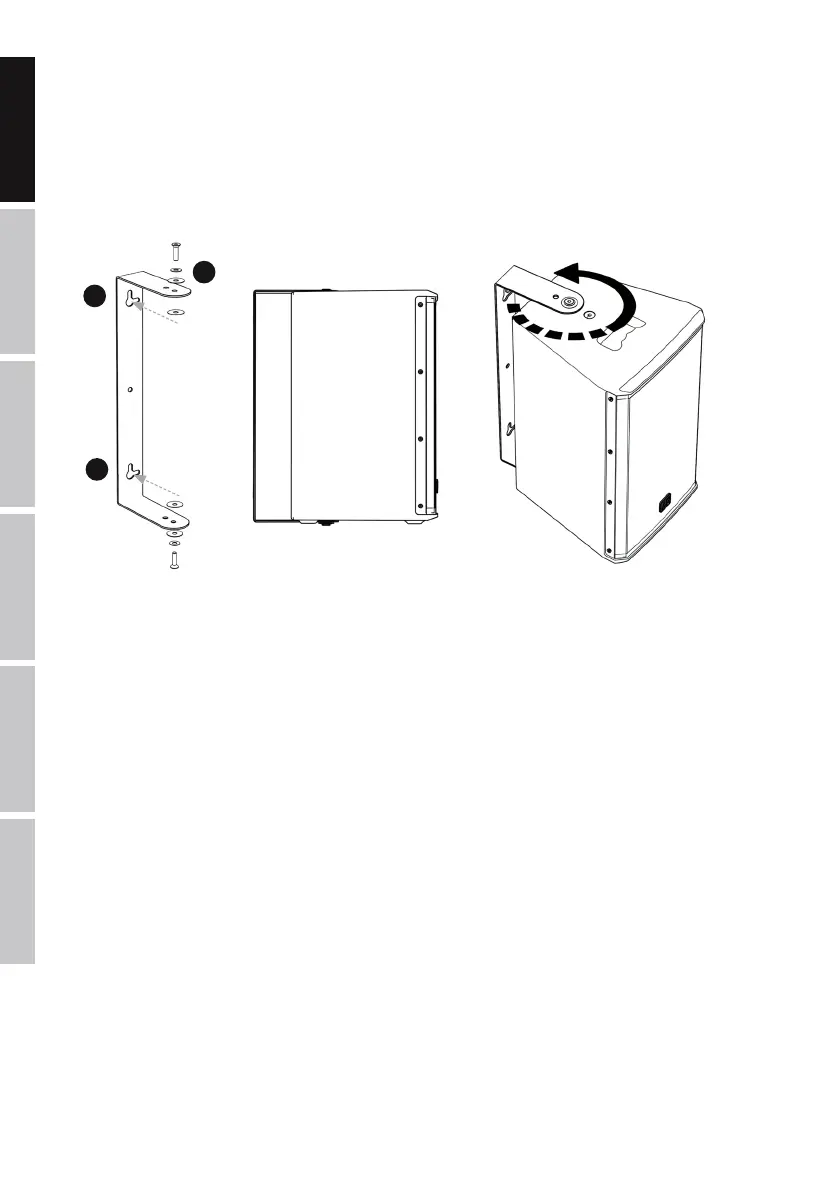

Screw the U-bracket of the desired Stinger G3 speaker in a suitable position to a load-bearing wall or ceiling (A). Use suitable screws and plugs etc.
to ensure secure mounting. Remove the M8 screws on the top and bottom of the speaker and lift the speaker into the bracket so that the thread
locations in the speaker and the holes in the bracket are aligned. Use the supplied M8 screws and washers as shown in the figure below (B, place
rubber washers between the bracket and the speaker), adjust dispersion angle as desired and tighten the screws with a suitable tool (C).
