Lea NetPlug - Adapter Status LEDs; Power Status LEDs; HomePlug Status LEDs; Ethernet Status LEDs

HomePlug Adapter Pairing and Net Management
lea-networks.com/us Copyright 2013, LEA Networks LLC. All rights reserved. LEA Networks, NetPlug, NetSocket, SoftPlug, and LEA logos are
registered trademarks. Information is subject to change without notice. Rev.073013
4
Power Status
Solid: power is on
Slow Blinking: standby mode
HomePlug Status
Solid Color: paired to network
Blinking: sending or receiving
data
Off: not paired to network
Ethernet Status
Solid: adapter is connected to
attached device
Blinking: sending or receiving
data
Off: no device attached or no
connection to Ethernet port on
device
NetPlug 200+ Only
Green: high speed connection
(>30Mbps)
Orange: medium speed connection
(15-30Mbps)
Red: low speed connection
(<15Mbps)
Reset Button
Secured Pairing Button

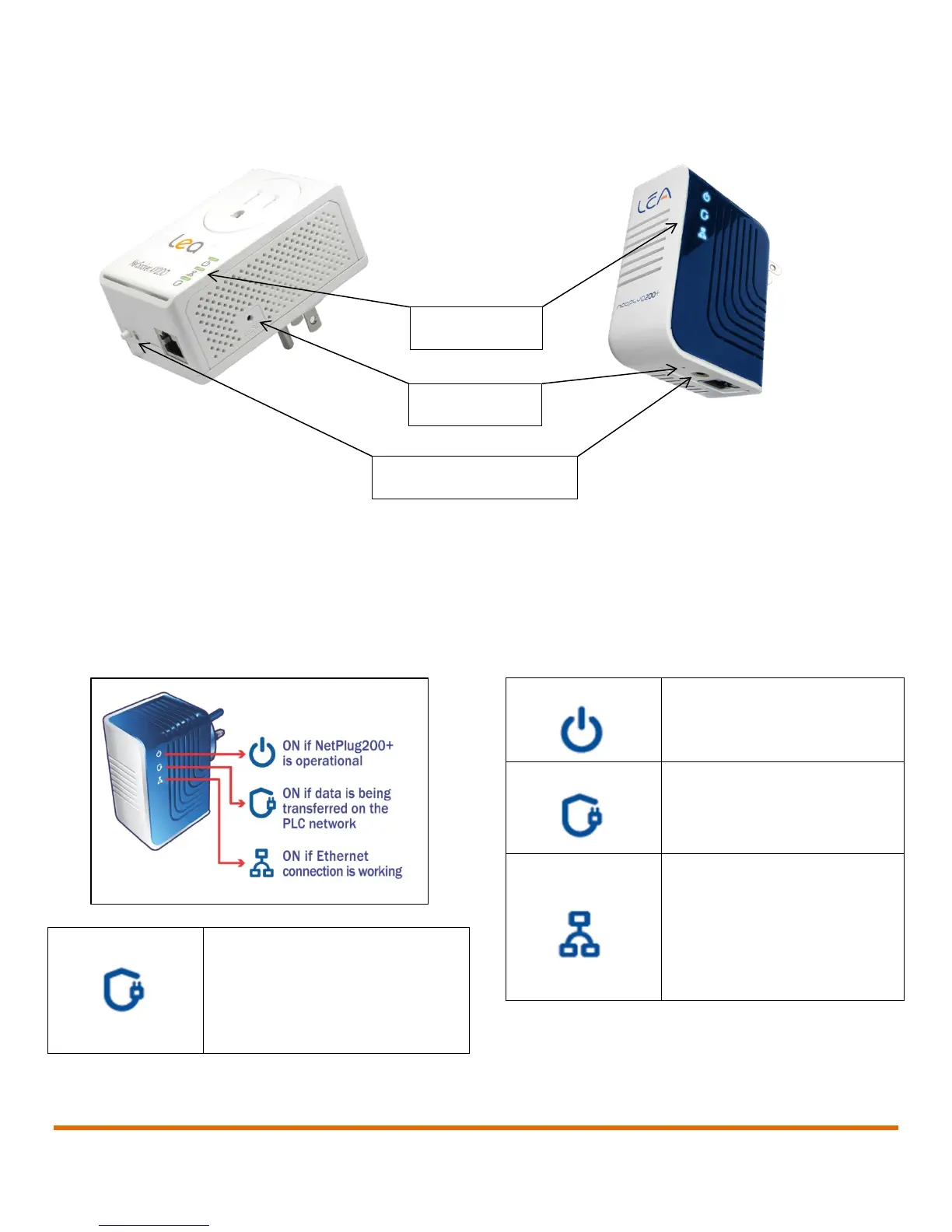

Status LEDs
Adapter Status LEDs
