6
A pair of MiST should be wall mounted approximately 6’ high and to the
sides of the listener. An optional third MiST may be used as a center rear
channel by mounting the unit behind the listener. Because MiST is actually
two independent, opposite facing, side-firing arrays in one cabinet, it
behaves as a bipolar system. When used behind the listener it may be
powered by both the left and right rear channel inputs.
Though the MiST requires only one channel of amplification per unit to
drive it when configured in the standard mode, separate input terminals for
each array allow for future steering versatility.
Instructions for attaching bracket to wall
1. Selecting a mounting site.
Note: Try to find a site with a solid wood backing.
2. Using one of the brackets as a pattern, mark four holes on the wall,
aligning the vertical holes with a stud location.
3. Drill four 1/8” (.32 cm) diameter holes as marked.

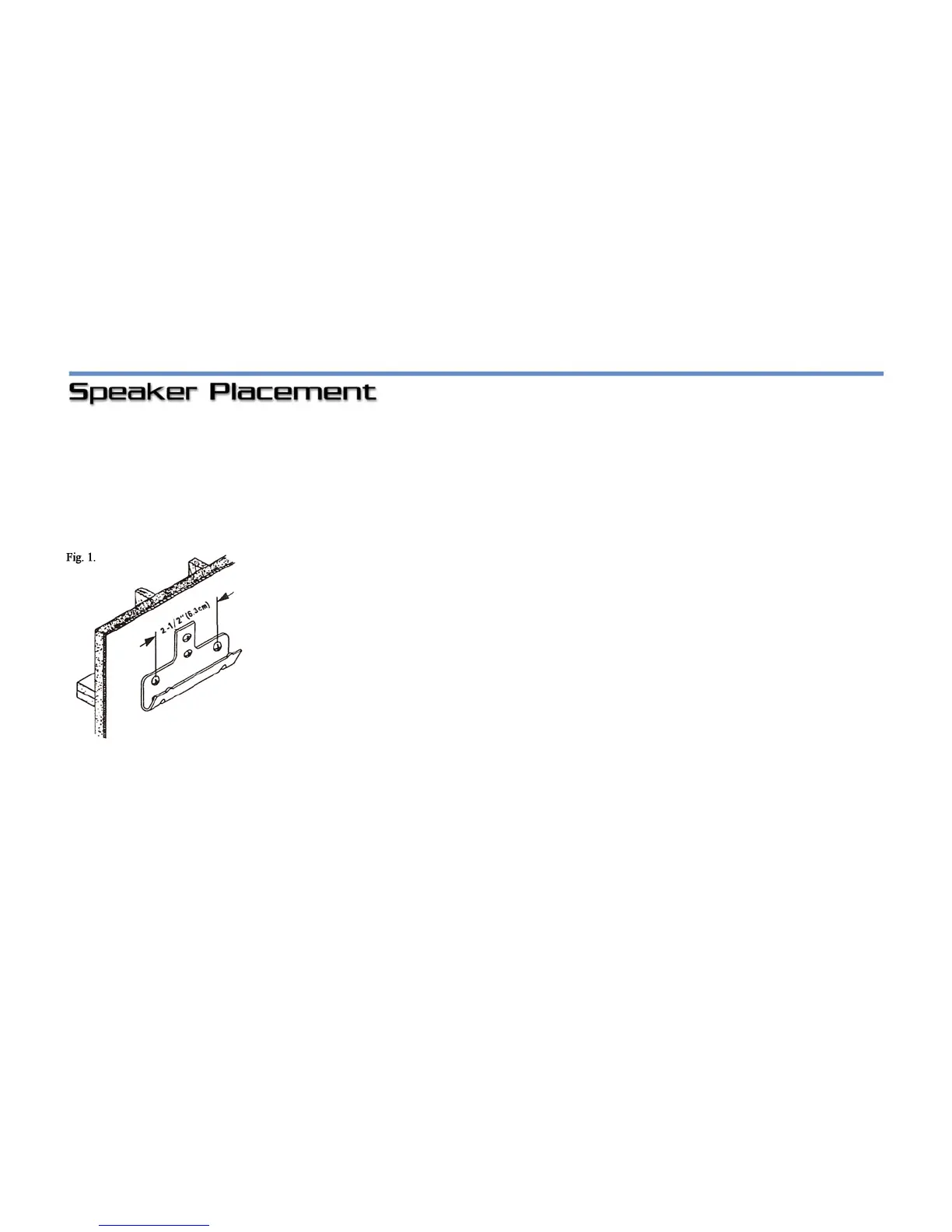

4. Fasten one bracket to the wall with four wood screws provided. (See
Figure 1)
