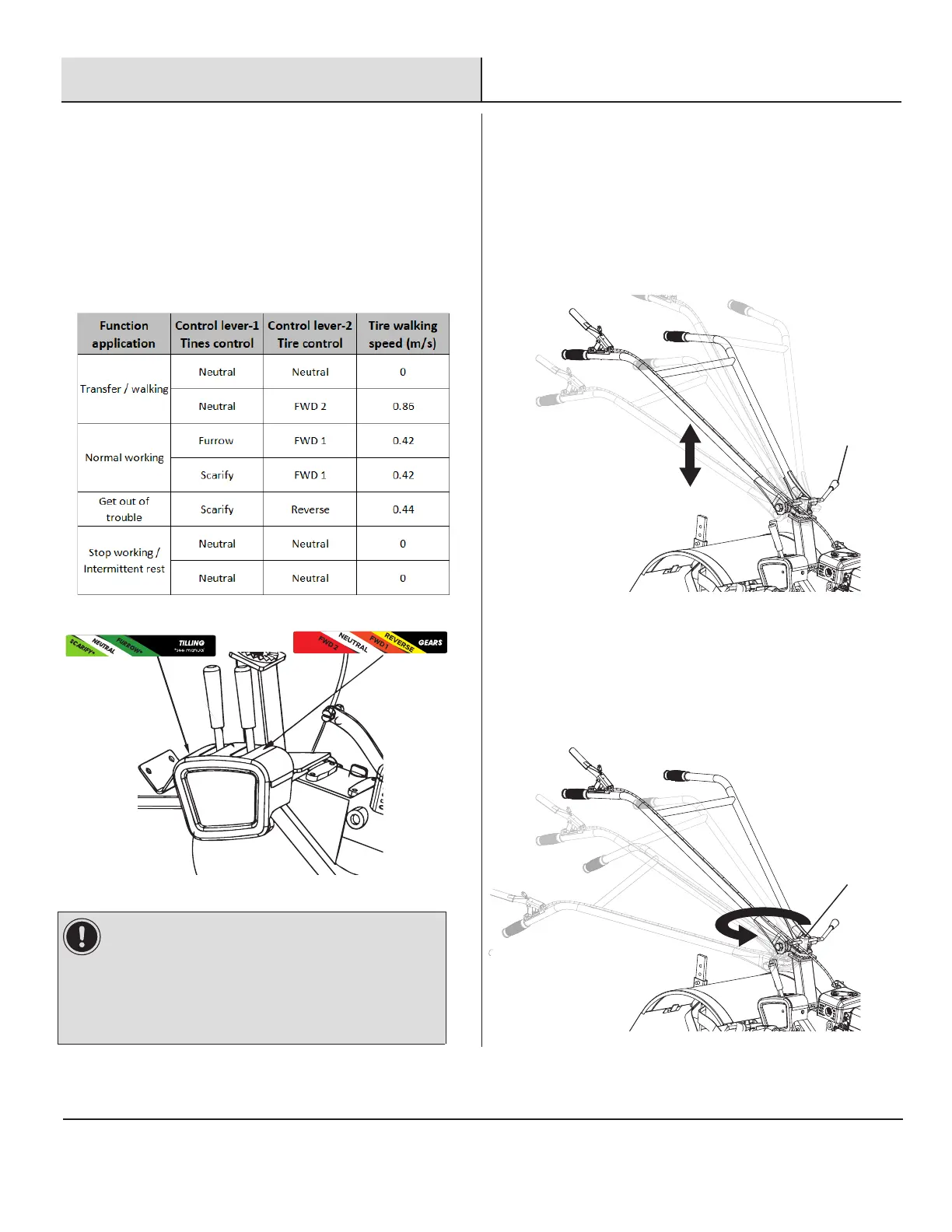

Operation (continued)
Handle Height and Left/Right
Adjustment
□
□ To adjust the handle height just loosen the up/down lever
lock (DD) and push handle up or down to the required height.
Then tighten the up/down lever lock (DD).
See Figure 1-14.
9
16
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
DD
KK
Figure 1-14
To adjust the handle axis point just loosen the left/right
handle lock (KK) and rotate the handle left or right to the
required axis point. Then tighten the left/right
handle lock (KK). See Figure 1-15
.
Figure 1-15
□
(2)(1)
Figure1-13
8
The gear box is located on the tiller frame. See Figure1-13
Control Gear Box
IMPORTANT:
I. FWD 2 cannot be used at work, FWD 2 is too fast.
II. Tire control lever is "Neutral" and the blade will not
turn.
III. When using Furrow+FWD 1, you can exchange left
and right Tines for better soil turning effect.
The control method of the gear box is matched according
to the actual work needs:
□
To Next Page
