Legendfires Garden Cube - Base and Ash Box Setup; Attaching Fire Body; Installing Burner Components

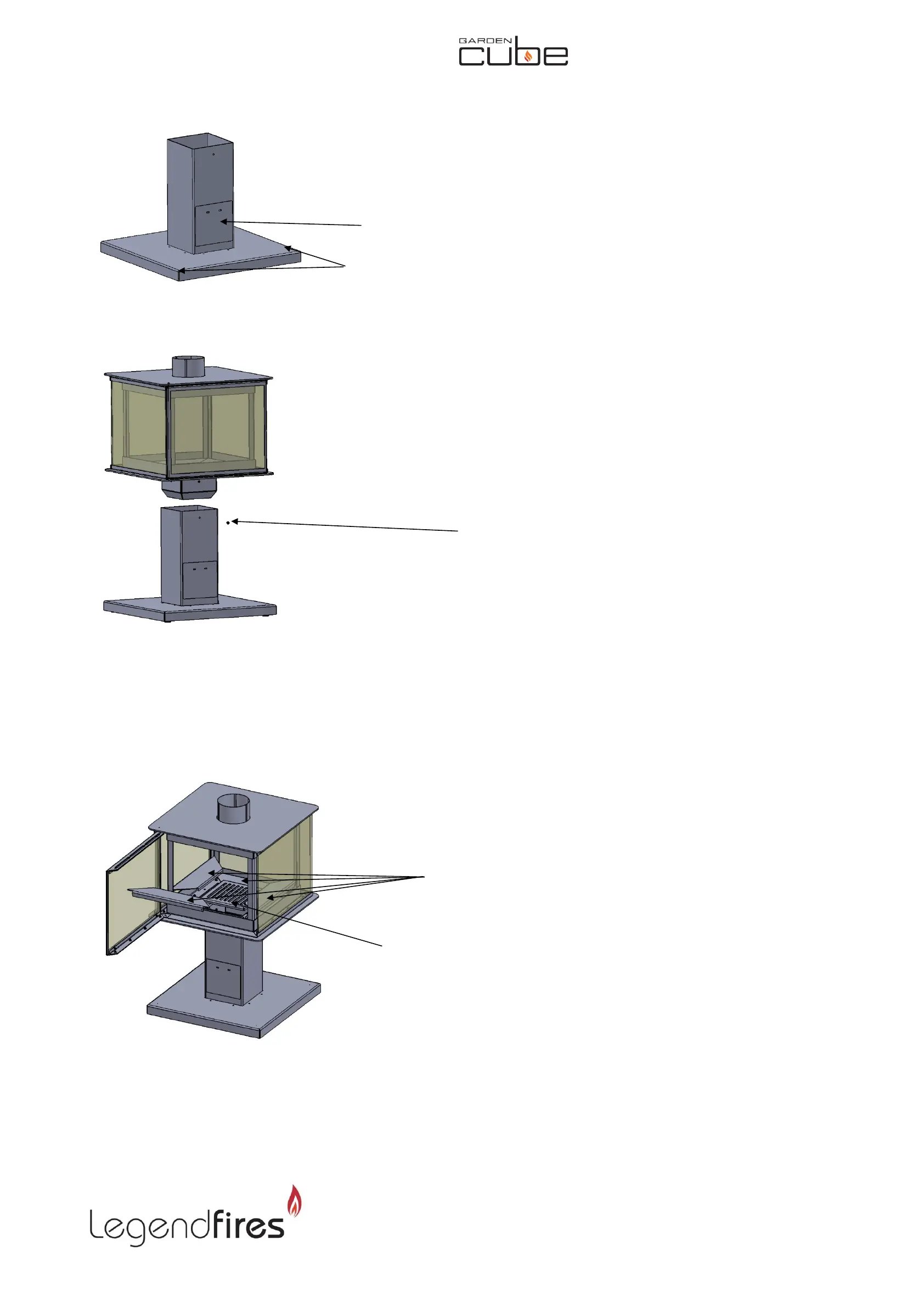

Place the Fire Base in preferred suitable location, and
adjust the feet to level as necessary. Ensuring that all
safeguard measures are complied with slide ash box in
to base pedestal.
Base adjustable feet located one in
each corner adjusted from bellow.
Lift and locate the fire body on to the base post. Note the
fire body is a heavy item and should be lifted into position
by two people. When in position secure in place with M6
fixing screw. Note the orientation of the fire body, the
screw in the top corner of the top plate should be in the
front left hand corner. This will mean that the fire door
and the ash pan are on the same side.
Ash Box
Fixing Screw 2-off
Open Door and fit the four off burner
trays as shown and the burner rack.
Burner tray
Burner Rack
