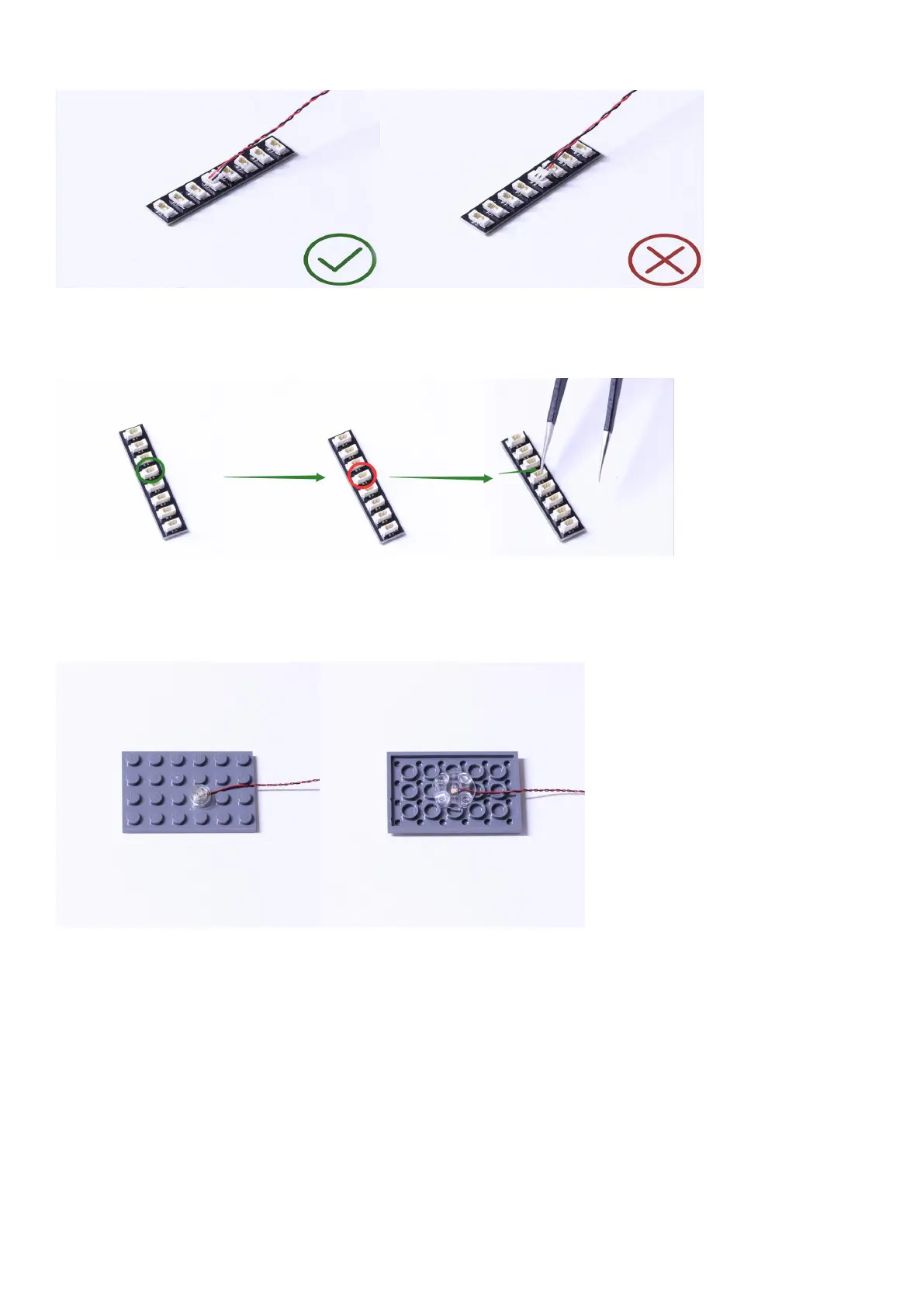

and don’t force it, for that may result in bent pins inside the port or overheating of the expansion board.
At this point, use the tweezers to straighten the bent pins.
When installing dot lights, make sure they are correctly placed (Yellow LED package is exposed). You
can put they either on the top of the studs or between studs.
Connecting cable connectors to Strip Lights
Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted
only one way. With the Strip Light facing up, ensure the side of the connector with the wires exposed
is facing down. If a plug won’t fit easily into a port connector, don’t force it. Doing so will damage the
plug and the connector.
