Leister CSS EASY - U.CAL Menu Calibration; Input Calibration Procedures; Analog Output Calibration

22 22
U.CAL menu
U.CA
User
calibration
Val Function
1 Analogue output (1)
2 Input 1 – custom 10V / 20mA
3 Input 1 - custom 60mV
4 Custom PT100 / J PT100
5 Custom PTC
6 Custom NTC
7 Input 2 - custom TA (2)
(1) The analog output in 20mA is calibrated with accuracy higher than 0.2 % f.s.; calibrate when
converting to 10V output.
(2) In the absence of calibration, accuracy is higher than 1% f.s.; calibrate only if higher
accuracy is required.
Default: 0

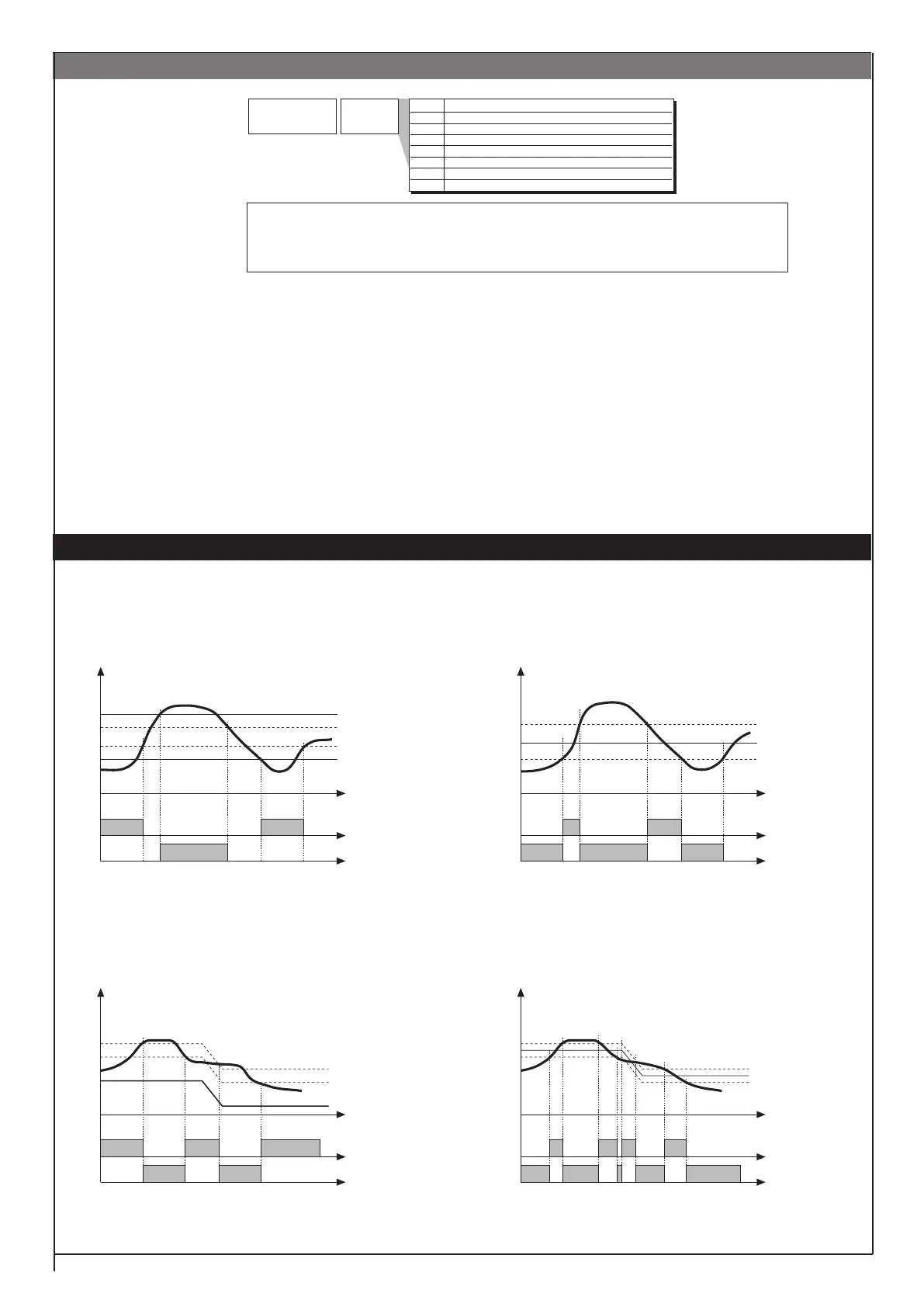

ALARMS
time
AL1 + Hyst1
AL2 + Hyst2
AL2
AL1
alarm 1
alarm 2
(*)
For AL1 = reverse absolute alarm (low) with positive Hyst1, AL1 t = 1
(*) = OFF if disabled on power-up
For AL2 = direct absolute alarm (high) with negative Hyst2, AL2 t = 0
For AL1 = symmetrical Lo absolute alarm with Hyst1, AL1 t = 5
For AL1 = symmetrical Hi absolute alarm with Hyst1, AL1 t = 4
* Minimum hysteresis = 2 scale points
Normal absolute alarm Symmetrical absolute alarm
reverse alarm
direct alarm
AL1
AL1 + [ Hyst1 * ]
AL1 - [ Hyst1* ]
time
For AL1 = Lo deviation alarm with negative Hyst 1, AL1 t = 3
For AL1 = Hi deviation alarm with negative Hyst 1, AL1 t = 2
For AL1 = Symmetrical Lo deviation alarm with Hyst 1, AL1 t = 7
For AL1 = Symmetrical Hi deviation alarm with Hyst 1, AL1 t = 6
time
SP+AL1
SP
reverse alarm
direct alarm
SP+AL1
SP
reverse
alarm
direct
alarm
time
Hyst1
Deviation alarm Symmetrical deviation Alarm
SP-AL1
