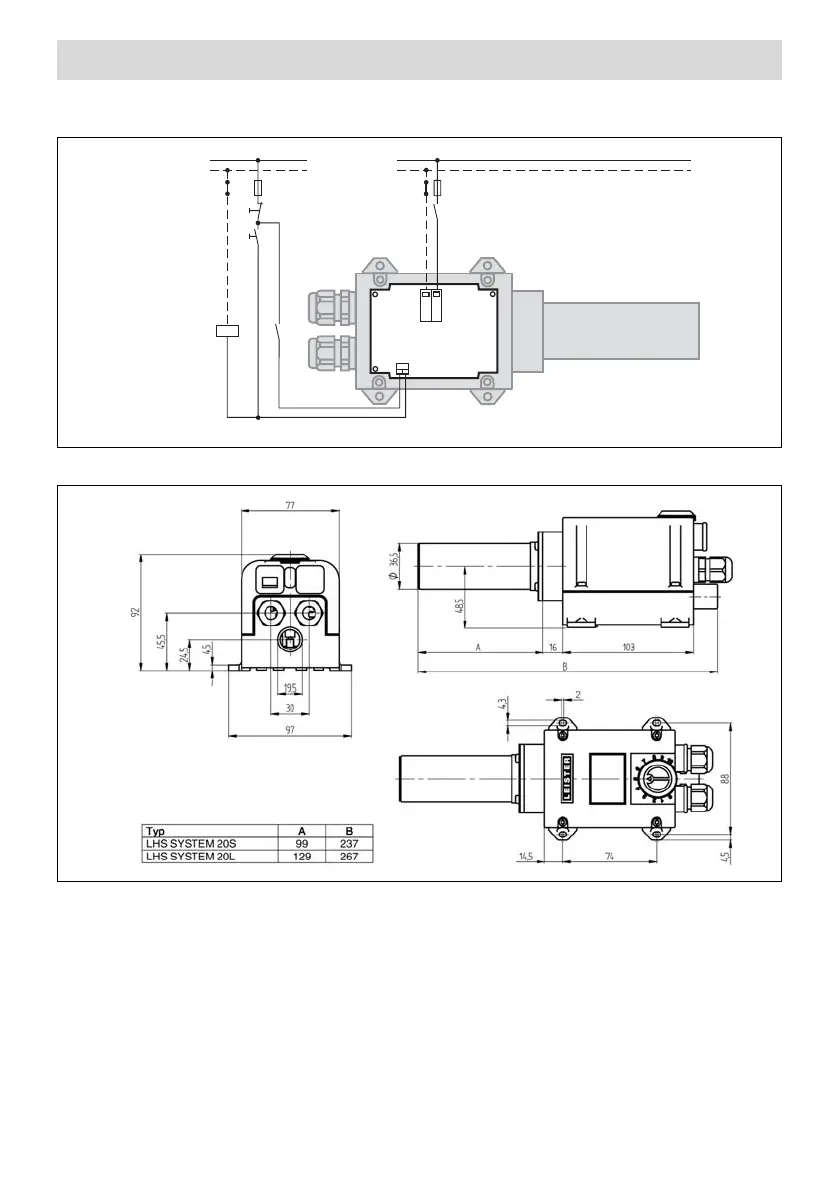

Leister LHS - Connection and Installation - 20 S;20 L; Power Unit Wiring Diagram (20 S;20 L); Installation Dimensions (20 S;20 L)

5
CONNECTION/INSTALLATION Leister LHS SYSTEM 20
Installation dimensions in mm
F2
Fuse
P
N
F1
Max 10A
L
N
N
L1
K1
K1
K1
S2
S1
OFF
ON
Power unit wiring diagram
20S/ 20L
