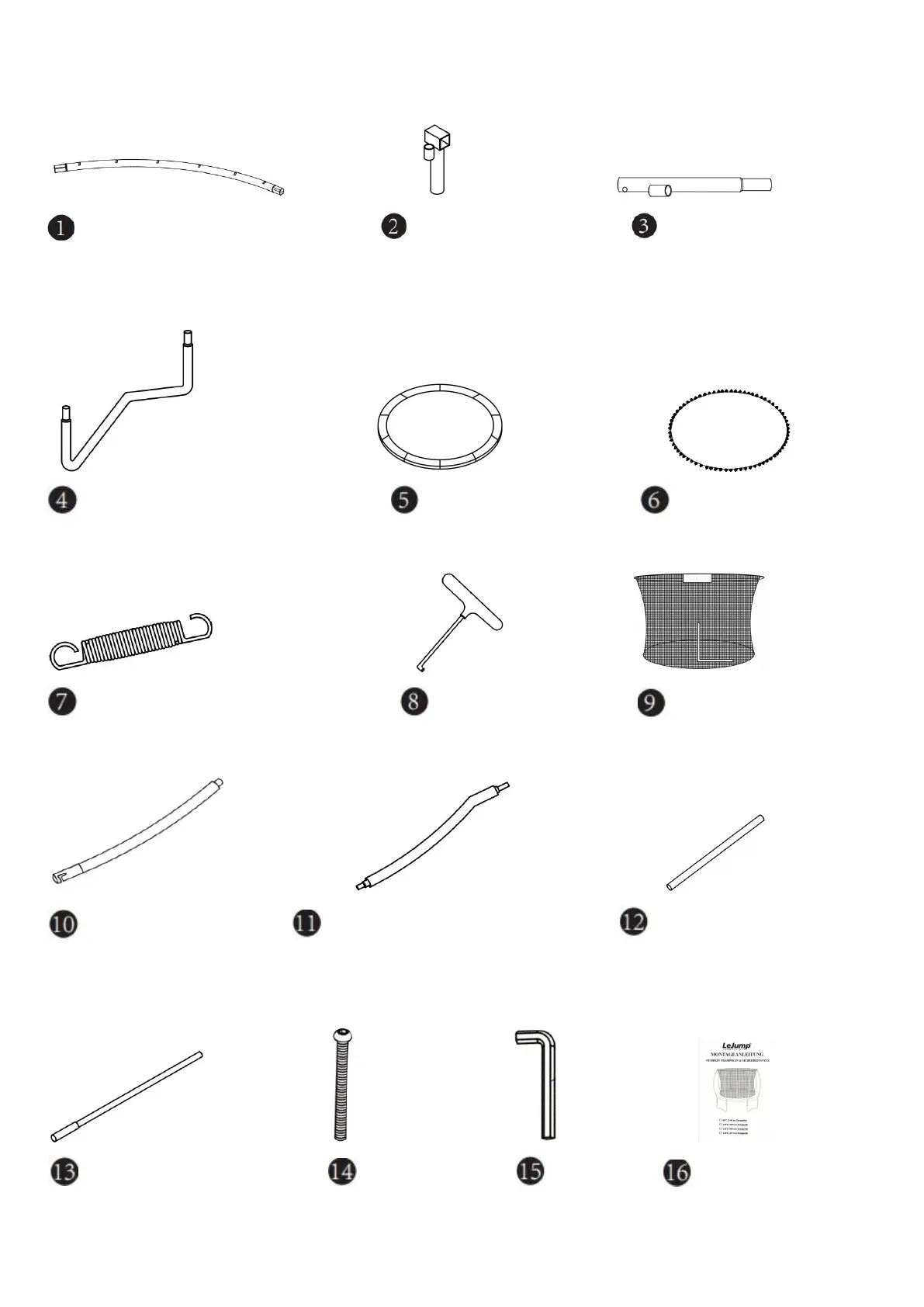

Parts Identification Chart (not to the actual scale)
Use below drawing to identify all the parts
Frame tube T-tube connector Leg extension
/upright tube
“W”shape leg tube Frame pad Jumping mat
Spring Spring tool Safety net
Upper safety net poles Lower safety net poles with foam PVC sleeves for safety net pole
with foam and top hat
Top fiberglass poles Screw wrench Instruction Book
