FIELD DEPLOYMENT
86 LELY WELGER y RPC 445 Tornado
9.4 Laying swaths
The full performance of the machine and good bale formation
can only be achieved when the swaths are prepared carefully:
lay swaths evenly.
9.5 Pick-up Guide Wheels
For field deployment, adjust the pick-up guide wheels so that
the tines of the pick-up are at least 2 cm above the ground. To
adjust the pick-up guide wheels:
Lift the pick-up using the tractor control valve: See separate
operating manual "PRO-LINK for RPC 445", chapter
"Pick-up".
(Figure 72) Pull out spring clip [1] and fit shackle [2] in the
desired hole.
Secure pick-up guide wheels with spring clip [1].
Always select the same adjustment on both sides of the
machine.
Attention!
(Figure 72) Both pick-up guide wheels cover the circular
path of the tines laterally and are therefore part of the safety
equipment. When the machine is in operation, the two guide
wheels must be mounted in the bottom position.

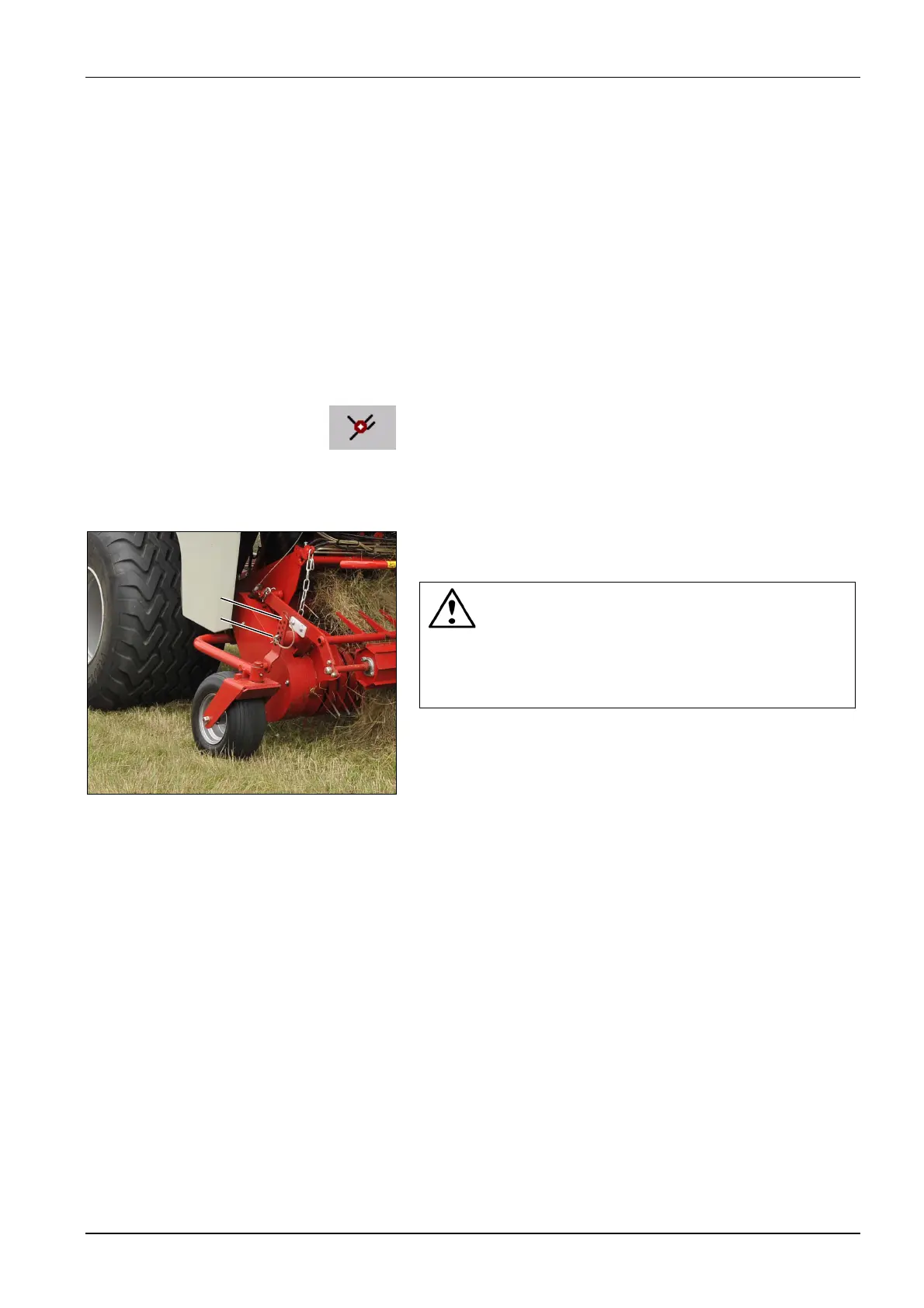

Figure 72
1
2
