GENERAL WARNINGS AND SAFETY INFORMATION
Prepare fruits for juicing:
·
· Fruit or vegetables which are hard should be left to ripen or steamed to soften.
· It is not necessary to peel or seed your fruits.
· Large pits, stems, or seeds should be removed.
·
Before use hand wash the juicer in warm soapy water.
1. You will need 2 bowls, one to collect the juice/puree and one for the waste.
2. Fill the juicer bowl with prepared fruit.
3. Turn the motor on and begin to feed fruit into the juicer using the stomper to guide the fruit into the juicer throat.
4. Do not force the juicer to work faster than it is intended to. Allow the machine to do the work.
5. It is normal for some pulp to pass into the waste. If you notice the waste is not as dry as expected process through the
machine again.
Prior to use use wash all parts thoroughly in warm soapy water and hand dry.
Attach the juicer head to your LEM Big Bite Grinder motor by using the star bolt that came with your grinder.
Insert the slotted end of the drive shaft into the slot in the end of the auger.
Insert the assembled drive shaft/auger into the juicer head lining up the drive with the drive gear of the motor and set
Place the screen over the auger and line up the locator pins with the notches in the juicer head.
Slide the retaining ring over the screen and thread onto the juicer head and hand tighten.
Assemble the juice tray by securing the belts around the screen. Make sure the juice tray sits behind the retaining ring.
Attach the splash guard by inserting the hinges on the back of the juice tray into the holes on the splash guard. Press the
tray clips on the sides of the tray to snap in place.
Attach the waste funnel to the end of the screen by lining up the notch and turning clockwise to lock in place.
Insert the bowl in throat of the juicer head.
You’re now ready to make juice/puree.

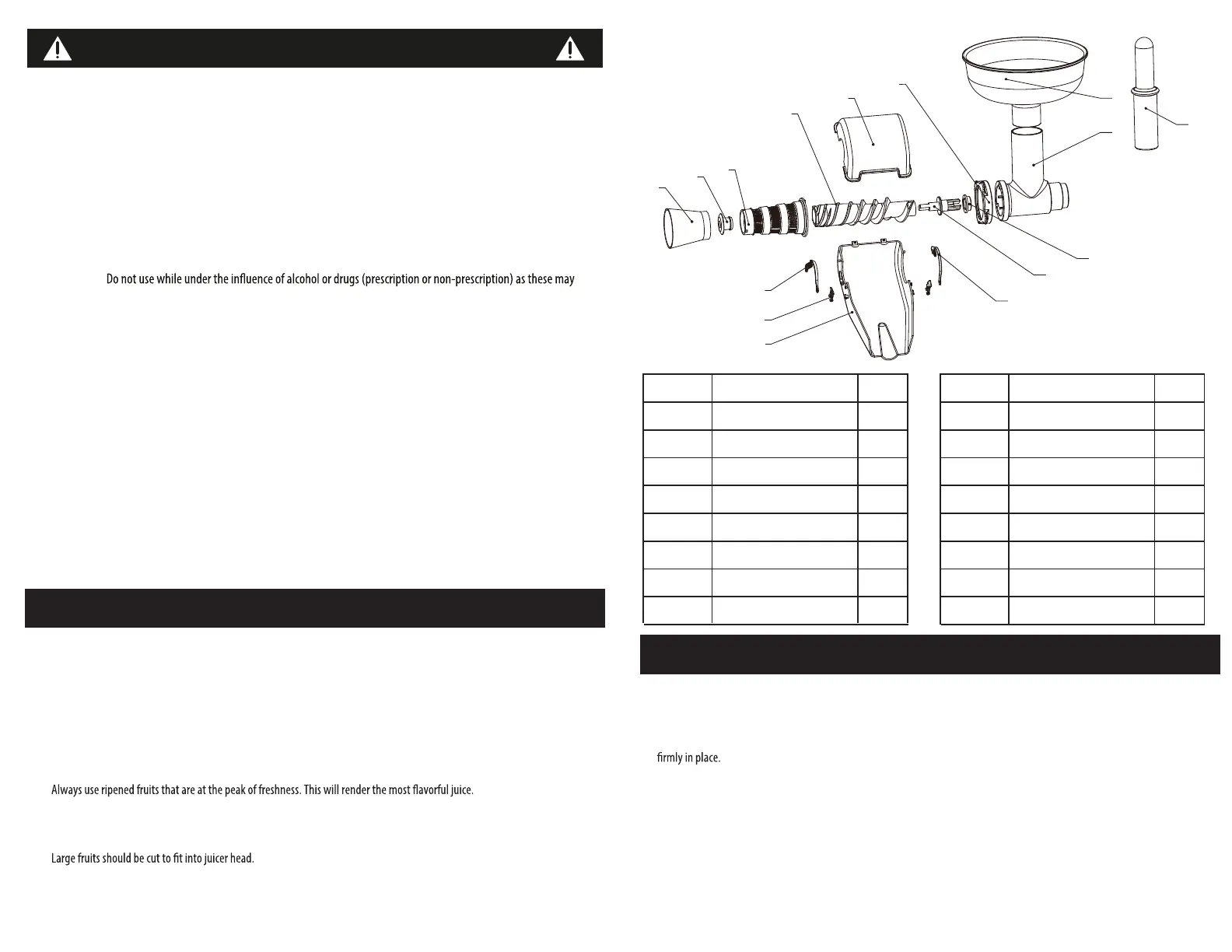

PARTS LIST
PARTS LIST
USING YOUR JUICER ATTACHMENT
IT IS IMPORTANT TO READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND SAFEGUARDS PRIOR TO USE
REFER TO YOUR GRINDERS SAFETY PRECAUTIONS FOR MOTOR SAFETY PRIOR TO OPERATION
1. Always ensure that the product is properly assembled and safely set up before use.
2. DO NOT leave the product unattended if it can be switched on and operated.
3. CAUTION: This product is not recommended for use near or by children or persons with certain disabilities. Set up and
store out of reach of children. When not in use, store device in a secure and dry place out of reach of children.
4. The product is designed for domestic use and not for commercial purposes.
5. Use the product with the supplied accessories only. WARNING: The use of attachments not recommended or sold by
the manufacturer may cause injury, damage to personal property, and may void your warranty.
6. WARNING:
impair user’s ability to properly assemble or safely operate the product.
7. The manufacturer declines any responsibility in the case of improper use of this product. Improper use of this product
voids the warranty.
8. Avoid contacting moving parts. Wait until all parts have come to a complete stop and disconnect from the power
source before removing any parts of the juicer.
9. Never feed food into product by hand as serious injury may occur, always use your stomper.
10. Thoroughly hand-wash all parts in warm soapy water prior to use. Do not soak. NOT DISHWASHER SAFE
11. Tie back loose hair and clothing. Remove neckties, rings, watches, bracelets or other jewelry before operating the
juicer.
12. Use on a level, stable surface to prevent tipping. Never move while unit is in use.
13.
SAVE THESE INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Part No. Description QTY
1 Juice Tray
Tray Clip
Short Connecting Belt
Waste Funnel
Rubber Plug
Screen
Auger
Splash Guard
1
2
1
1
1
1
1
1
2
3
4
5
6
7
8
Part No. Description QTY
9
Stomper
Bowl
Head
Bushing
Drive Shaft
Long Connecting Belt
Retaining Ring
1
1
1
1
1
1
1
10
11
12
13
14
15
13
5
14
9
6
7
8
10
11
12
3
2
1
15
4
