Page 24

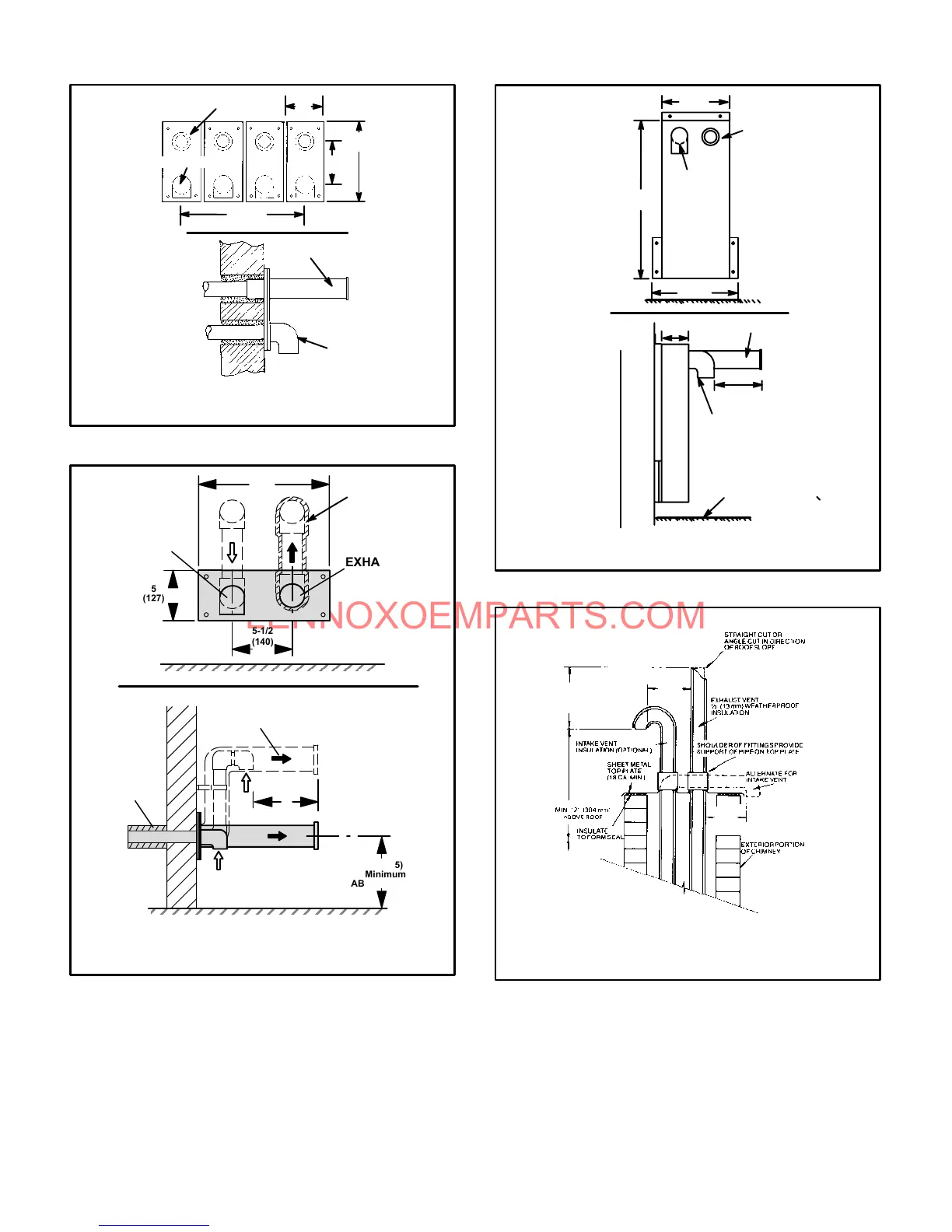

FIGURE 35
EXHAUST
VENT
INTAKE VENT
5-1/2
(140)
Front View
12
(305)
5
(127)
18 MAX.
(457)
EXHAUST VENT
INTAKE
VENT
Side View
OPTIONAL VENT TERMINATION FOR
MULTIPLE UNIT INSTALLATION
WALL TERMINATION KIT WTK
Inches (mm)
FIGURE 36
12 MIN.
(305)
Above Grade
COVER EXHAUST
VENT WITH
1/2 (13)
FOAM
INSULATION
Front View
Side View
VENT TERMINATIONS
MODEL WTK WALL TERMINATION KIT (30G28)
EXTENDED VENT FOR GRADE CLEARANCE
Inches (mm)
5
(127)
5Ć1/2
(140)
EXHAUST
AIR
INTAKE
AIR
GRADE
12
(305)
8 (203)
Minimum
12 (305)
Minimum
ABOVE GRADE
INTAKE
AIR
EXHAUST
AIR
GRAD
E
FIGURE 37
VENT TERMINATIONS
MODEL WTKX (30G79)
EXTENSION RISER FOR GRADE CLEARANCE
4
(102)
8 MIN.
(203)
EXHAUST VENT
INTAKE
VENT
GRADE
GRADE
EXHAUST
VENT
INTAKE
VENT
34
(864)
12
(305)
9
(229)
NOTE-Enclosed exhaust pipe
is insulated with 1/2" (13mm)
foam insulation. If intake and
exhaust pipes are reversed, slit
and remove foam insulation
and reapply to other vent. ExĆ
haust vent must be insulated.
Front View
Side View
OUTSIDE WALL
G26 VENTING IN EXISTING CHIMNEY
NOTE-Do not discharge exhaust gases directly into any chimney or vent stack. If vertiĆ
cal discharge through an existing unused chimney or stack is required, insert piping
inside chimney until the pipe open end is above top of chimney and terminate as illusĆ
trated. In any exterior portion of chimney, the exhaust vent must be insulated. An alterĆ
nate method is to fill the chimney with vermiculite or equal to take advantage of its
acoustic and thermal properties.
FIGURE 38
8" - 12"
(203mm - 305mm)
3" - 8"
(76mm-
203mm)
3" - 8"
(76mm-
203mm)
