Page 43

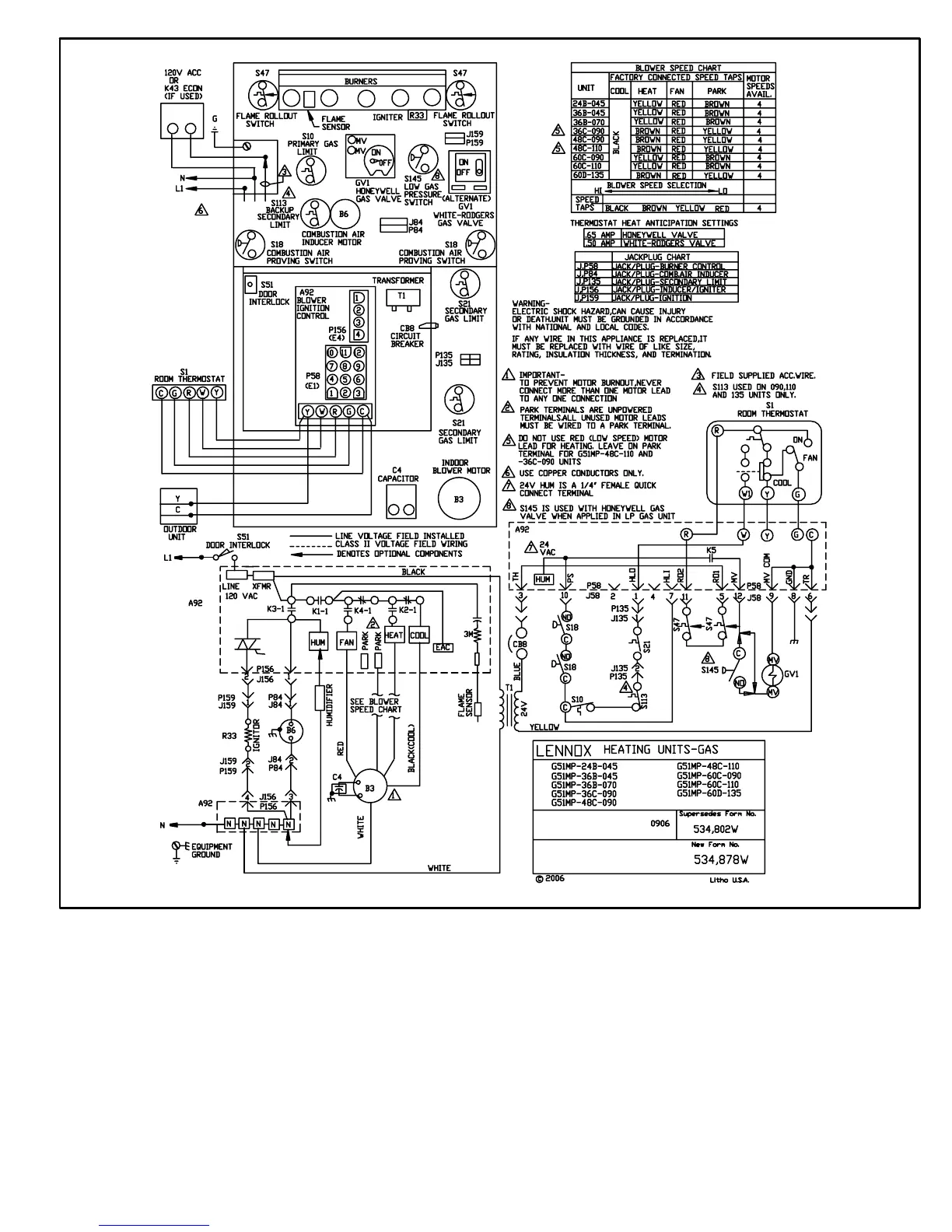

1 − When there is a call for heat, W1 of the thermostat en-
ergizes W of the furnace control with 24VAC.
2 − S10 primary limit switch, S47 rollout switch and S21
secondary limit are closed. Call for heat can continue.
3 − Control (A92) energizes combustion air inducer B6.
Combustion air inducer runs until S18 combustion air
prove switch closes (switch must close within 2−1/2
minutes or control goes into 5 minute Watchguard
Pressure Switch delay). Once S18 closes, a 15−sec-
ond pre−purge follows.
4 − Control (A92) energizes ignitor. A 20−second warm−up
period begins.
5 − Gas valve opens for a 4−second trial for ignition
6 − Flame is sensed, gas valve remains open for the heat
call.
7 − After 45−second delay, SureLight control (A92) ener-
gizes indoor blower B3.
8 − When heat demand is satisfied, W1 of the indoor ther-
mostat de−energizes W of the control which de−ener-
gizes the gas valve. Combustion air inducer B6 contin-
ues a 5−second post−purge period, and indoor blower
B3 completes a selected OFF time delay.
