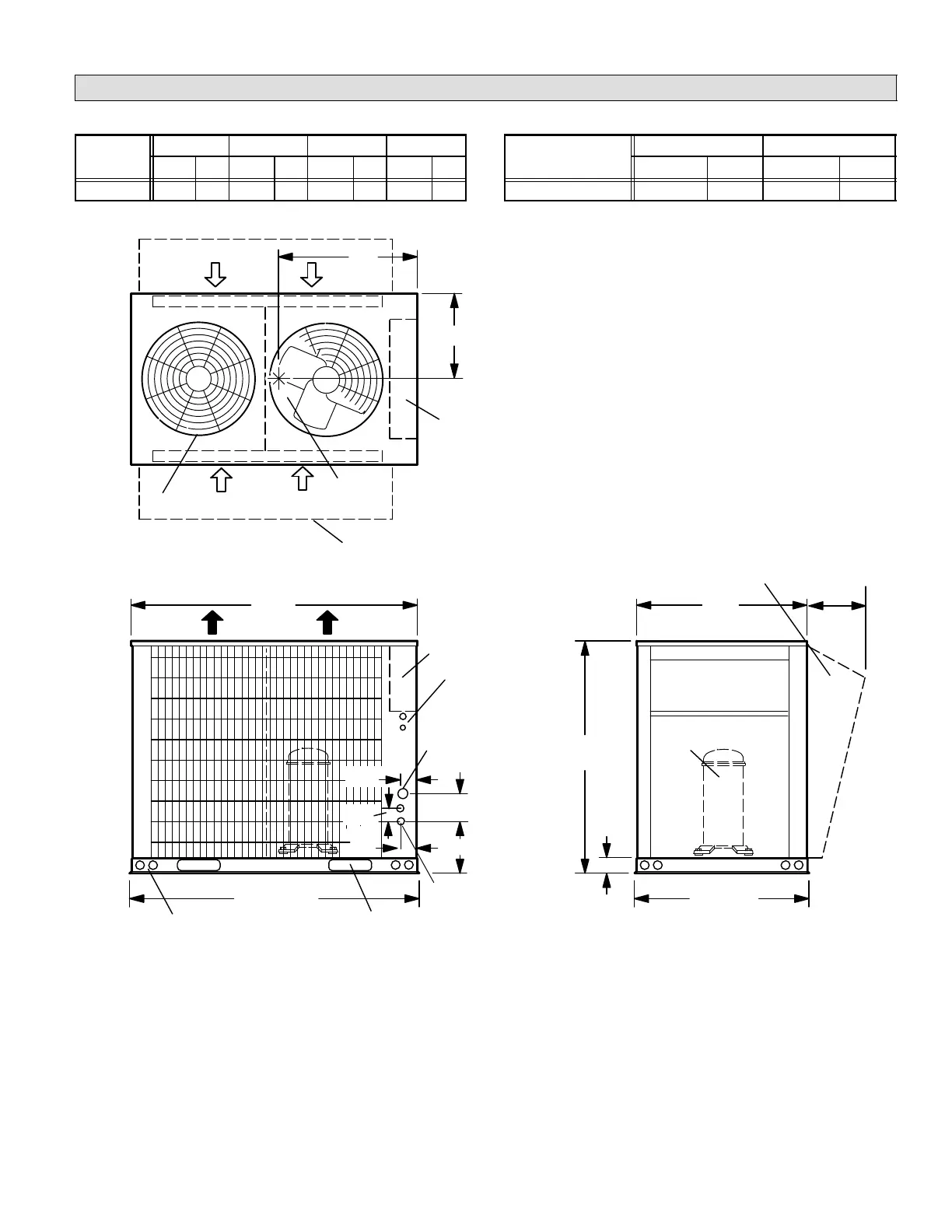

HS29−120 Dimensions − inches (mm)
Corner Weight
MdlN
AA BB CC DD
Model No.
lbs. kg lbs. kg lbs. kg lbs. kg
HS29−120 118 54 161 73 161 73 118 54
Center Of Gravity
MdlN
EE FF
Model No.
inch mm inch mm
HS29−120 30−1/2 775 17−5/8 448
Side View
Top View
70−3/4
(1797)
Outdoor Coil
Outdoor Coil
Outdoor Fans And
Guards (2)
Control
Box
Lifting Holes
(For Rigging)
Forklift SlotS
(Both Sides)
Discharge Air
Inlet Air
Electrical Inlets
(Either Side)
Liquid Line
(Either Side)
1−7/16
(37)
65/8
(168)
43/8
(111)
AA BB
CCDD
Center Of
Gravity
EE
FF
Control Box
34
(864)
49
(1245)
Compressor
Control
Box Access
31/4
(83)
Service View
72 (1829) 353/4 (908)
Base Base
Suction Line
(Either Side)
3−3/8
(86)
Optional Hail Guard
(Field Installed Both Sides)
Optional Hail Guard
(Field Installed Both Sides)
1−3/4
(44)
12
(305)
