Lennox KCA150 User Manual

Page 20

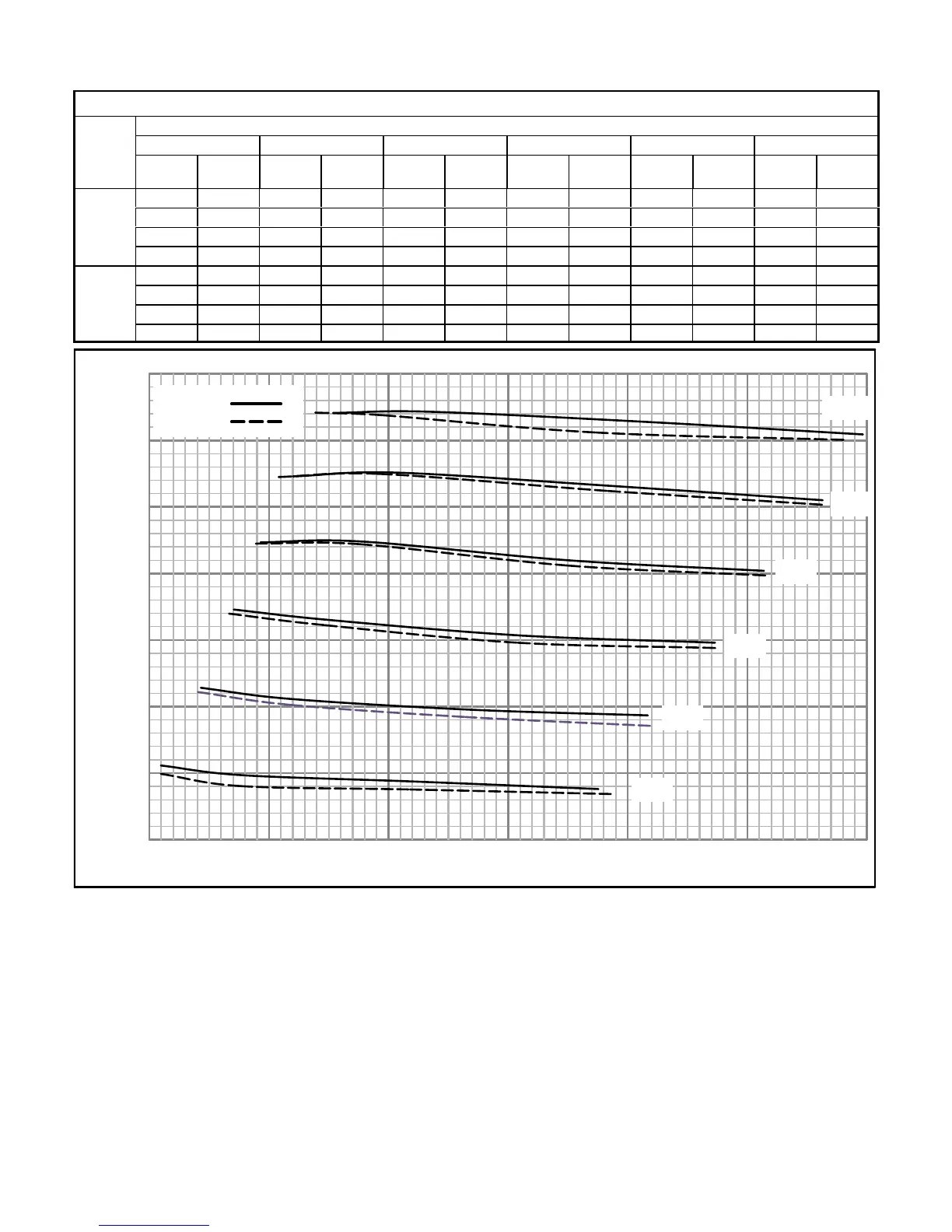

TABLE 5
102S Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
111 252 114 289 117 332 119 378 122 428 125 483
118 256 122 295 125 337 128 383 131 434 133 489
132 269 136 307 141 350 145 396 149 447 151 502
148 285 152 322 157 367 161 413 166 465 170 518
Circuit 2
111 249 114 288 117 331 119 377 121 428 124 482
118 254 122 295 125 336 128 383 129 433 130 483
132 271 136 308 141 350 145 397 148 447 147 500
149 291 152 325 157 371 162 417 166 468 168 520
60
70
80
90
100
110
120
130
110 120 130 140 150 160 170
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°
Charging Curves
Circuit 1
Circuit 2
