First remove the left side of evaporator from
the groove of bottom shell and then remove
the right side from the clasp on the bottom
shell.
Instruction: Some wiring terminal of this
product is with lock catch and other devices.
The pulling method is as below:
1.Remove the soft sheath for some terminals
at rst, hold the circlip and then pull out the
terminals.
2.Pull out the holder for some terminals at
rst (holder is not available for some wiring
terminal), hold the connector and then pull the
terminal.
Circlip
Soft sheath
Holder
Connector

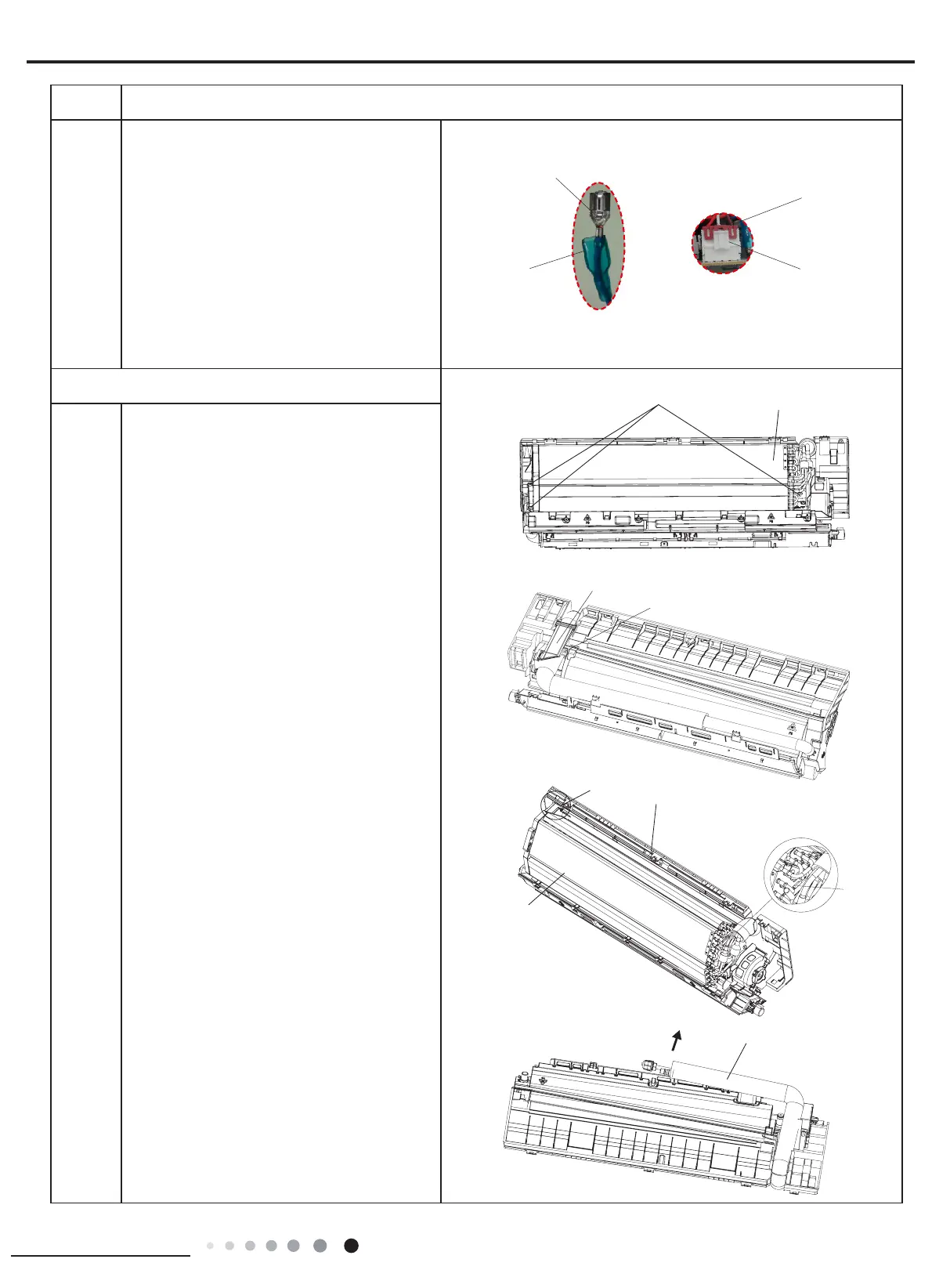

ProcedureSteps
Remove 3 screws xing evaporator assy.
8. Remove evaporator assy
Screws
Connection pipe clamp
Evaporator assy
Evaporator assy
Screw
Groove
Bottom shell
Clasp
Connection pipe
At the back of the unit, remove the
screw fixing connection pipe clamp
and then remove the connection pipe
clamp.
Adjust the position of connection pipe
on evaporator slightly and then lift the
evaporator upwards to remove it.
