Lennox LM009CI-100T432-1 User Manual

85
Installation and Maintenance
Service Manual
Step
Procedure
a

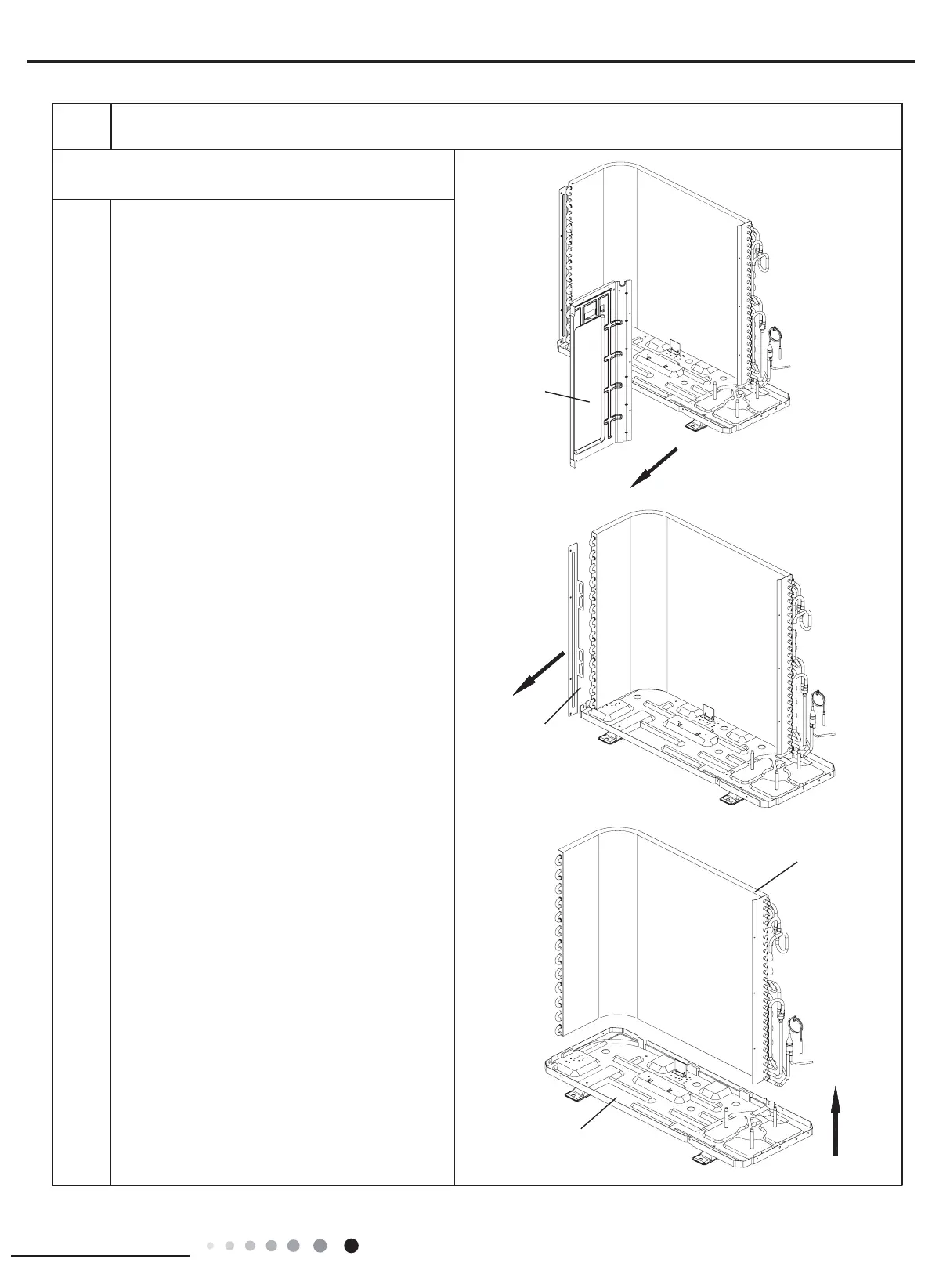

9. Remove chassis sub-assy and condenser
Remove the screws fixing the isolation sheet and
then remove the isolation sheet.
b
Remove screws connecting the support (condenser)
and the condenser assy, and then remove the
support (condenser).
c
Dissemble the chassis sub-assy and the condenser
sub-assy.
isolation sheet
support
chassis sub-assy
condenser
