2.Graspthemicroprocessoronthesidesandliftitstraightupandoutofthesocket.Donottouchthe
contactsonthemicroprocessorsocket.

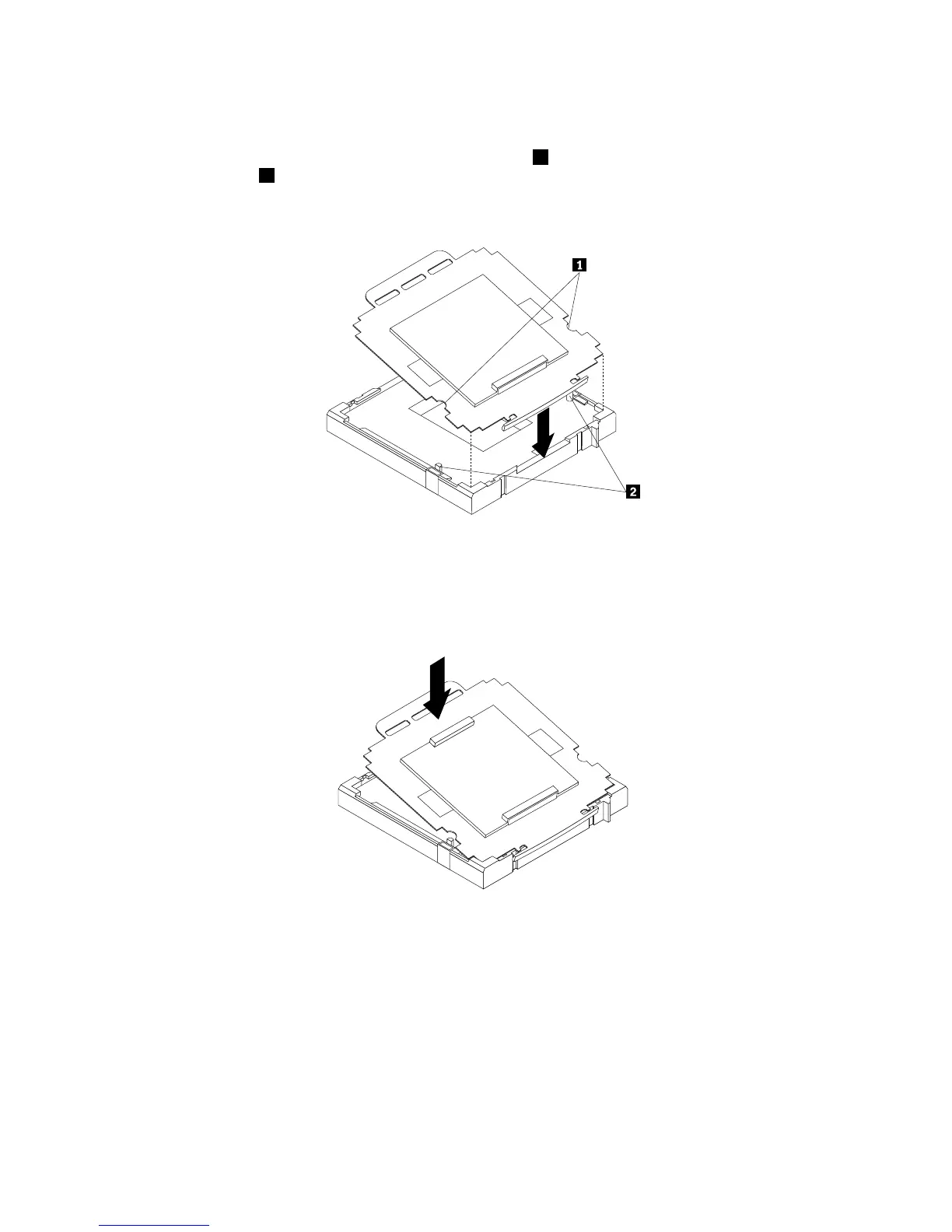

3.Notetheorientationofthesocketcover.Alignthenotches1ofthemicroprocessorsocketcoverwith
thealignmentkeys2ofthemicroprocessorsocket.
4.Installonesideofthesocketcoverintothemicroprocessorsocketasshown.
Figure72.Installingthesocketcover
Note:Yourmicroprocessorsocketandcovermightlookslightlydifferentfromtheillustration.
5.Carefullypresstheothersideofthesocketcoverdownwardsuntilthesocketcoversnapsintoplace.
Figure73.Securingthesocketcover
6.Carefullycheckthefourcornersofthesocketcovertomakesurethatthecoverissecuredinthe
microprocessorsocket.
7.Lowerthemicroprocessorretainerandthenlowerthelevertosecuretheretainer.Makesurethe
leverislockedintoposition.
8.Followanyadditionalinstructionsincludedwiththereplacementpartyoureceived.
138ThinkCentreHardwareMaintenanceManual
