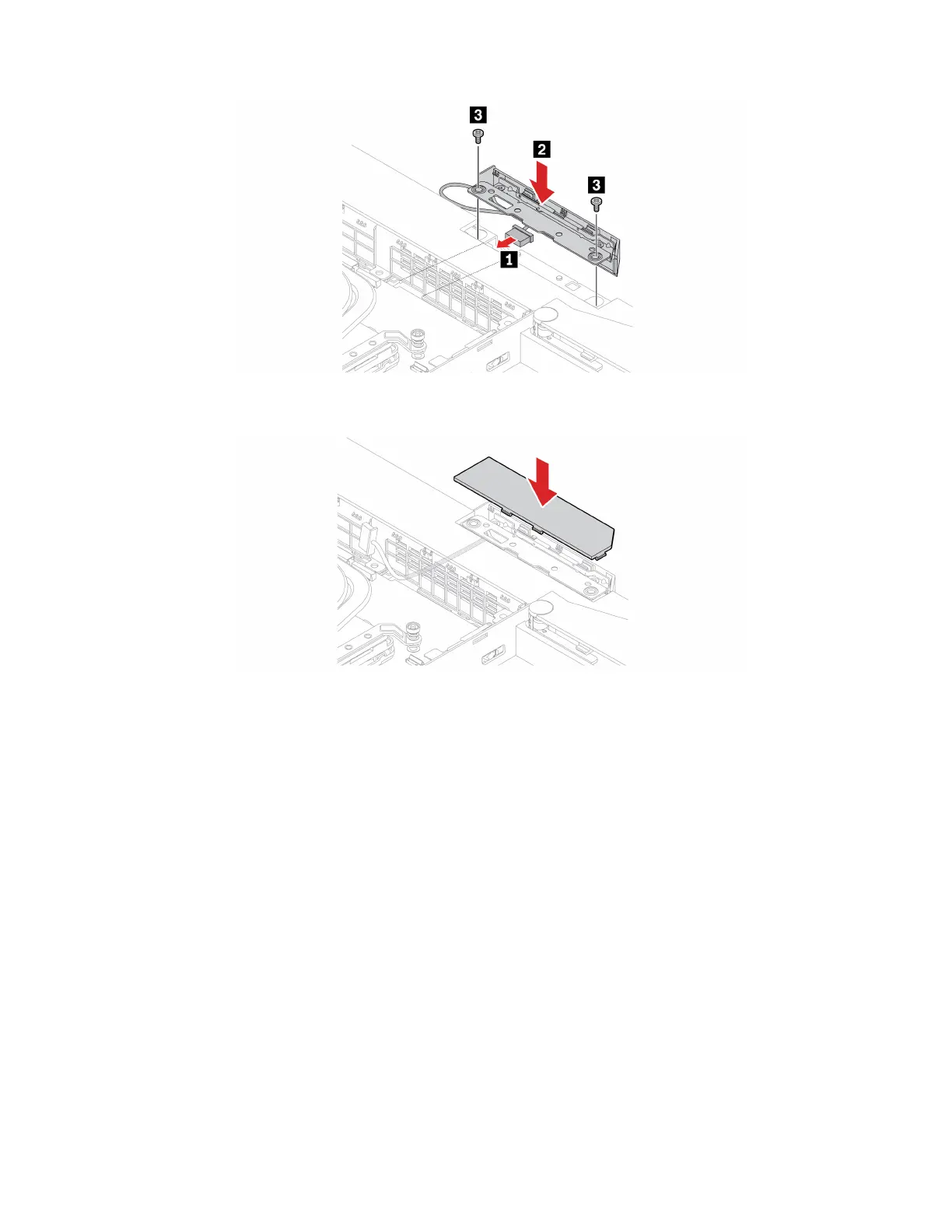

Figure 147. Installing the integrated camera and microphone module
Figure 148. Installing the shield of the integrated camera and microphone module
10. Connect the new integrated camera and microphone module cable to the system board.
11. Reinstall the removed parts.
12. Place the computer in an upright position.
13. If a locking device is available, use it to lock the computer.
14. Reconnect the external cables and power cords to the corresponding connectors on the computer.
Main frame
Prerequisite
Before you start, read Chapter 1 “Important safety information” on page 1 and print the following
instructions.
Replacement procedure
1. Remove the computer stand. See “Computer stand” on page 61.
2. Remove the rear cover. See “Rear cover” on page 65.
3. Remove the optical drive. See “Optical drive” on page 66.
4. Remove the optical drive holder. See “Optical drive holder” on page 69.
130
M70a and M90a Hardware Maintenance Manual
