Lenovo ThinkPad L410 User Manual

When installing the keyboard, do as follows:
Table 26. Installation of the keyboard
1. Attach the connectors.

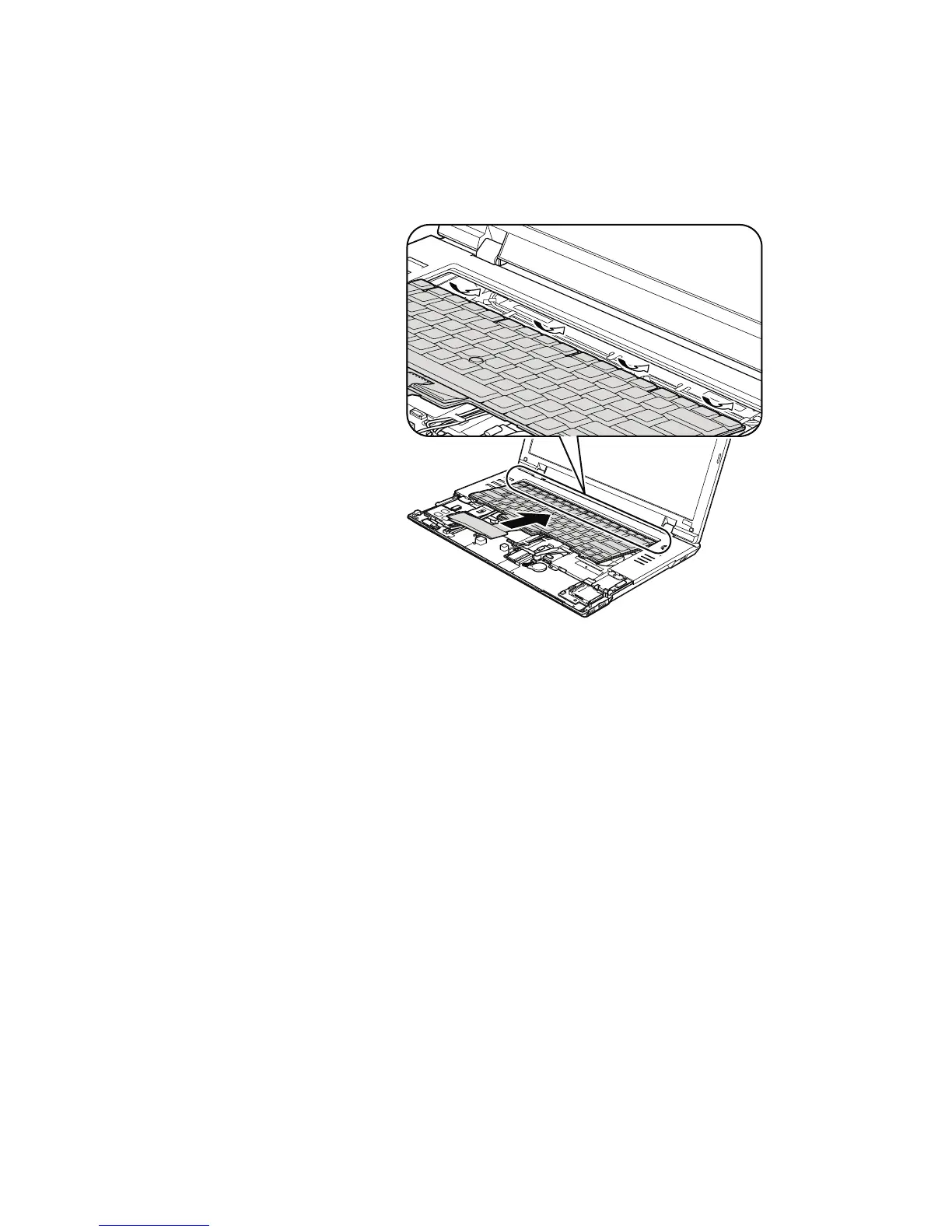

2. Attach the keyboard so that the keyboard edges are under the frame as
shown in this figure.
3. To make sure that the front side of the keyboard is housed firmly, gently
press the keys with your thumbs and try to slide the keyboard toward you.
4. Secure the keyboard by tightening the screws from the bottom side of the
computer.
Removing and replacing a FRU 109

Lenovo ThinkPad L410 Specifications

General

Processor	Intel Core 2 Duo
Display	14.1-inch
Resolution	1280x800
Operating System	Windows 7 Professional
Graphics	Intel GMA 4500MHD
Optical Drive	DVD-RW
Card Reader	4-in-1 card reader
Webcam	Yes
Chipset	Intel GM45
RAM	Up to 8GB DDR3
Storage	Up to 500GB HDD
Battery	6-cell Li-ion
Wireless	802.11b/g/n
Ethernet	10/100/1000 Gigabit Ethernet
Bluetooth	Bluetooth 2.1
Ports	3 x USB 2.0, VGA
