Server model with four 3.5-inch hot-swap drives
Use this section to understand the internal cable routing for the server model with four 3.5-inch hot-swap
drives.

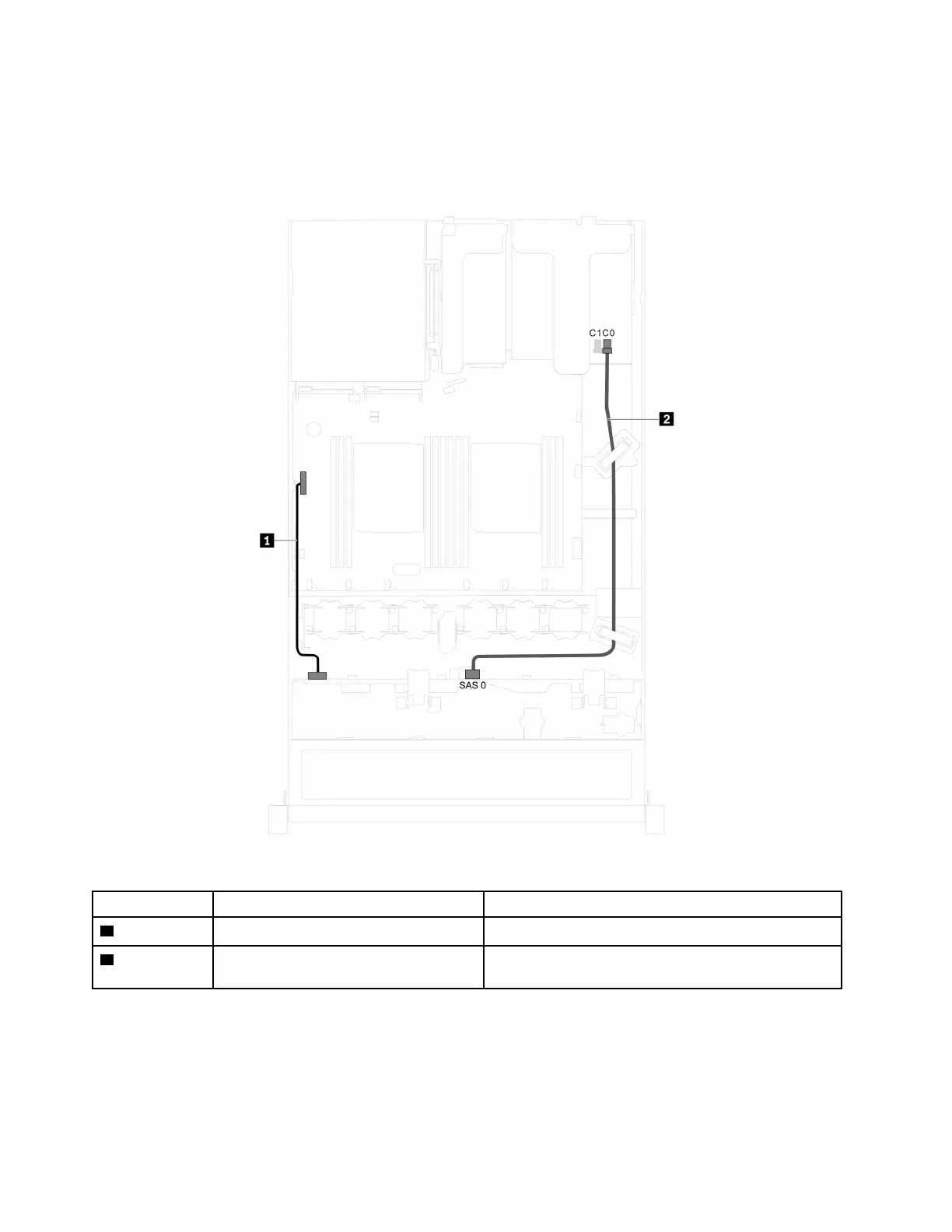

The following illustration shows the cable routing for the server model with four 3.5-inch hot-swap drives.
Figure 18. Cable routing for the server model with four 3.5-inch hot-swap drives
Cable
From To
1 Power cable Power connector on the backplane Backplane power connector on the system board
2 SAS signal
cable
SAS 0 connector on the backplane C0 connector on the HBA/RAID adapter
38 ThinkSystem SR530 Maintenance Manual
