Step 3. If the server does not have a RAID flash power module holder on the chassis, install one first.

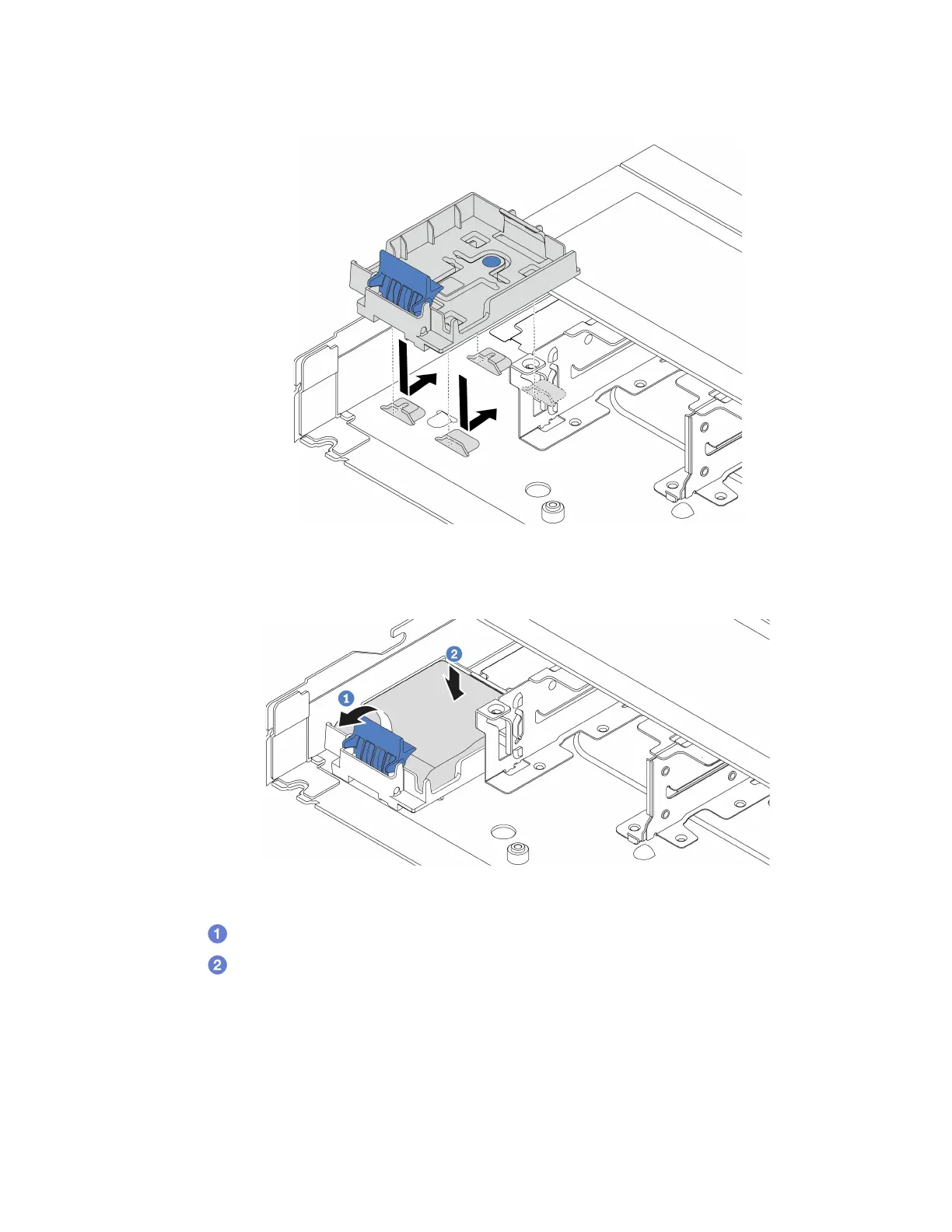

Figure 108. RAID flash power module holder installation
Step 4. Install the RAID flash power module on the chassis.
Figure 109. Installation of the RAID flash power module on the chassis
a.
Open the retention clip on the holder.
b.
Put the RAID flash power module into the holder and press it down to secure it into the
holder.
After you finish
1. Connect the super capacitor module to an adapter with the extension cable that comes with the flash
power module. See
“RAID flash power modules” on page 227.
2. Complete the parts replacement. See
“Complete the parts replacement” on page 215.
Chapter 5. Hardware replacement procedures 163
