Remove the RAID super capacitor module on the chassis
Use this information to remove the RAID super capacitor module on the chassis.
About this task
Attention:
• Read Installation Guidelines to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure
Step 1. Remove the top cover. See Remove the top cover.
Step 2. Disconnect the cable of the RAID super capacitor module.
Step 3. Remove the RAID super capacitor module on the chassis.

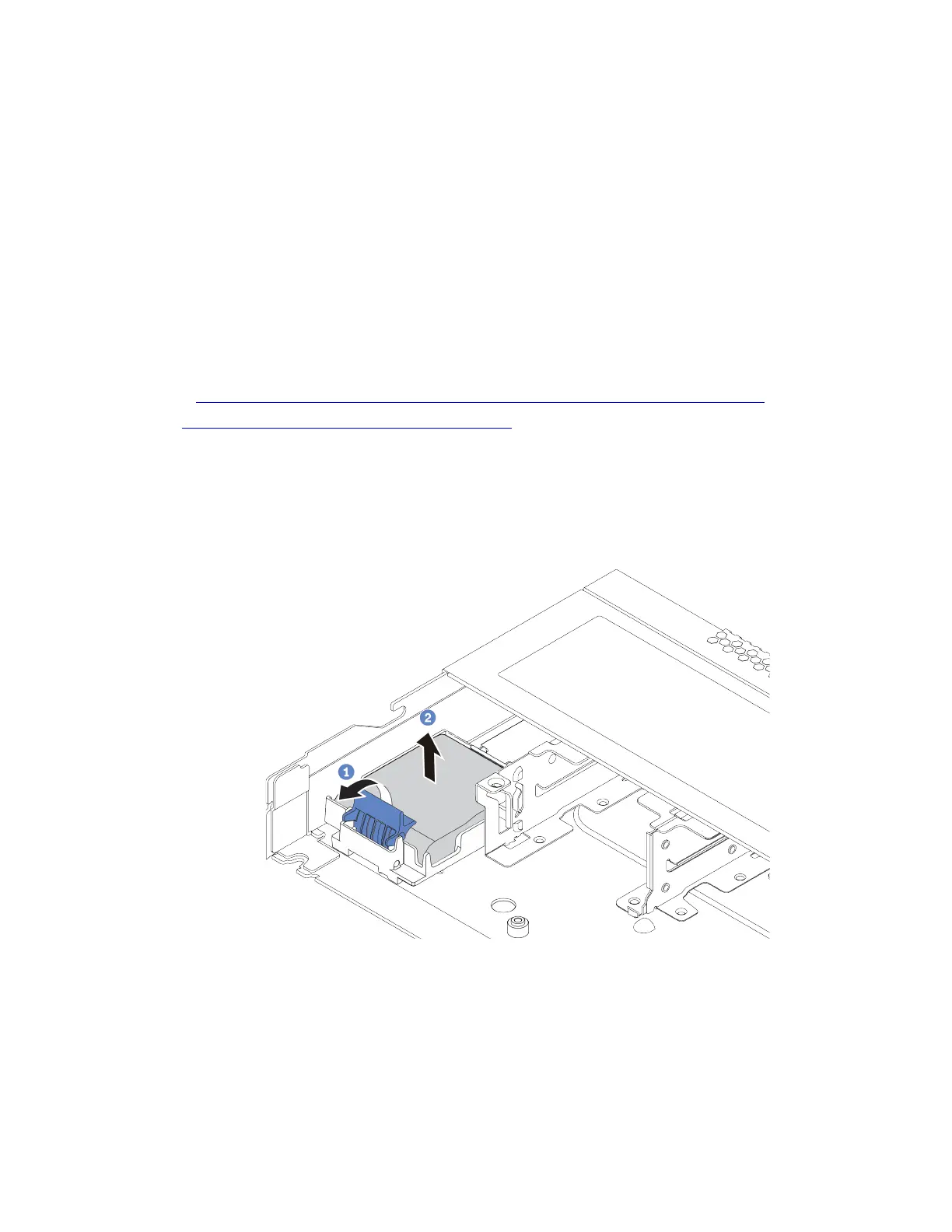

Figure 103. Removal of the RAID super capacitor module on the chassis
a. Open the retention clip on the holder of the RAID super capacitor module.
b. Take the RAID super capacitor module out of the holder.
Chapter 4. Hardware replacement procedures 207
