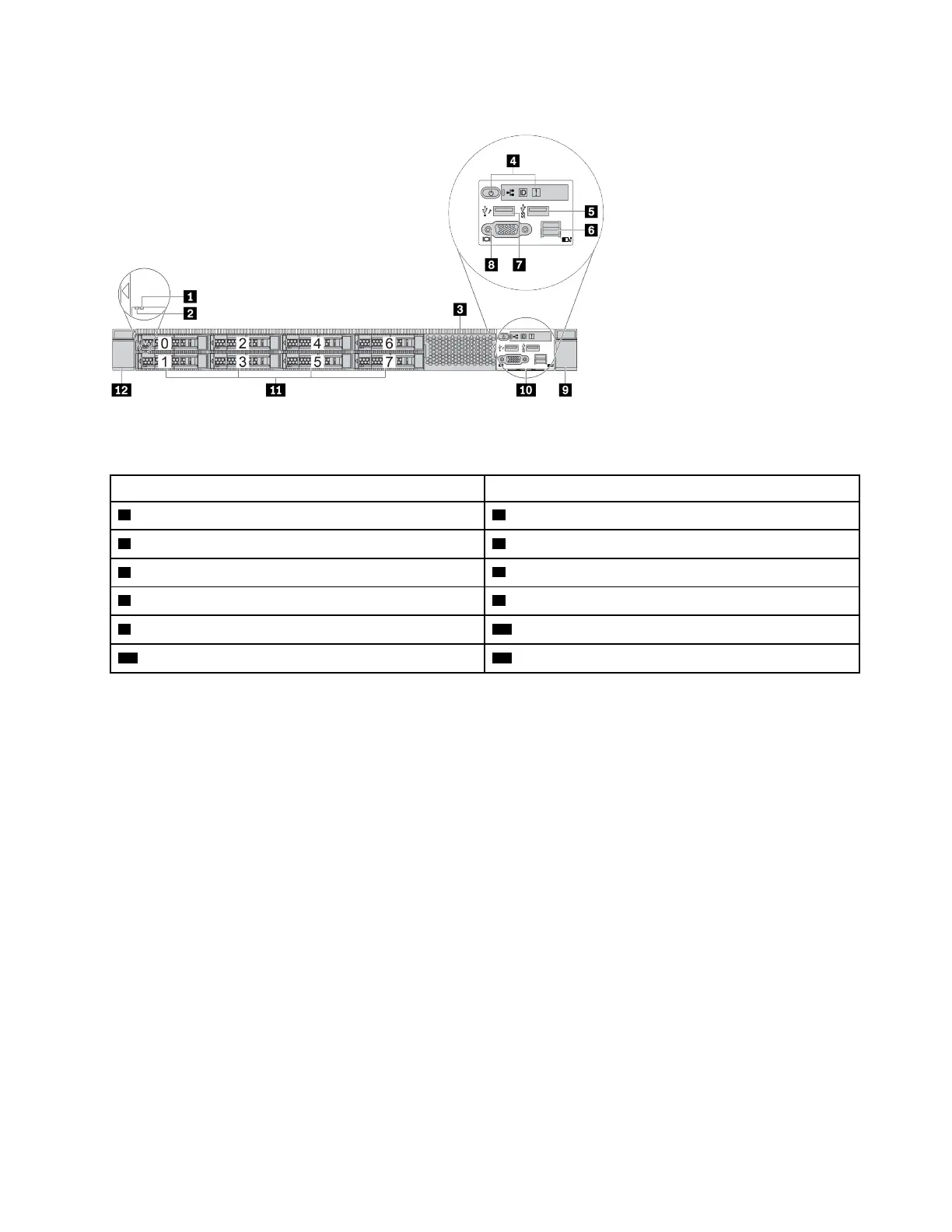

Server model with eight 2.5-inch drive bays
Table 4. Components on the front of the server
Callout Callout
1 Drive status LED 2 Drive activity LED
3 Drive bay filler (1)
4 Diagnostics panel
5 USB 3.1 Gen 1 connector
6 External diagnostics connector
7 XClarity Controller USB connector 8 VGA connector (optional)
9 Rack latch (right)
10 Pull-out information tab
11 Drive bays (8) 12 Rack latch (left)
Note: For more information about each component, see Front components overview.
Chapter 2. Server components 15
