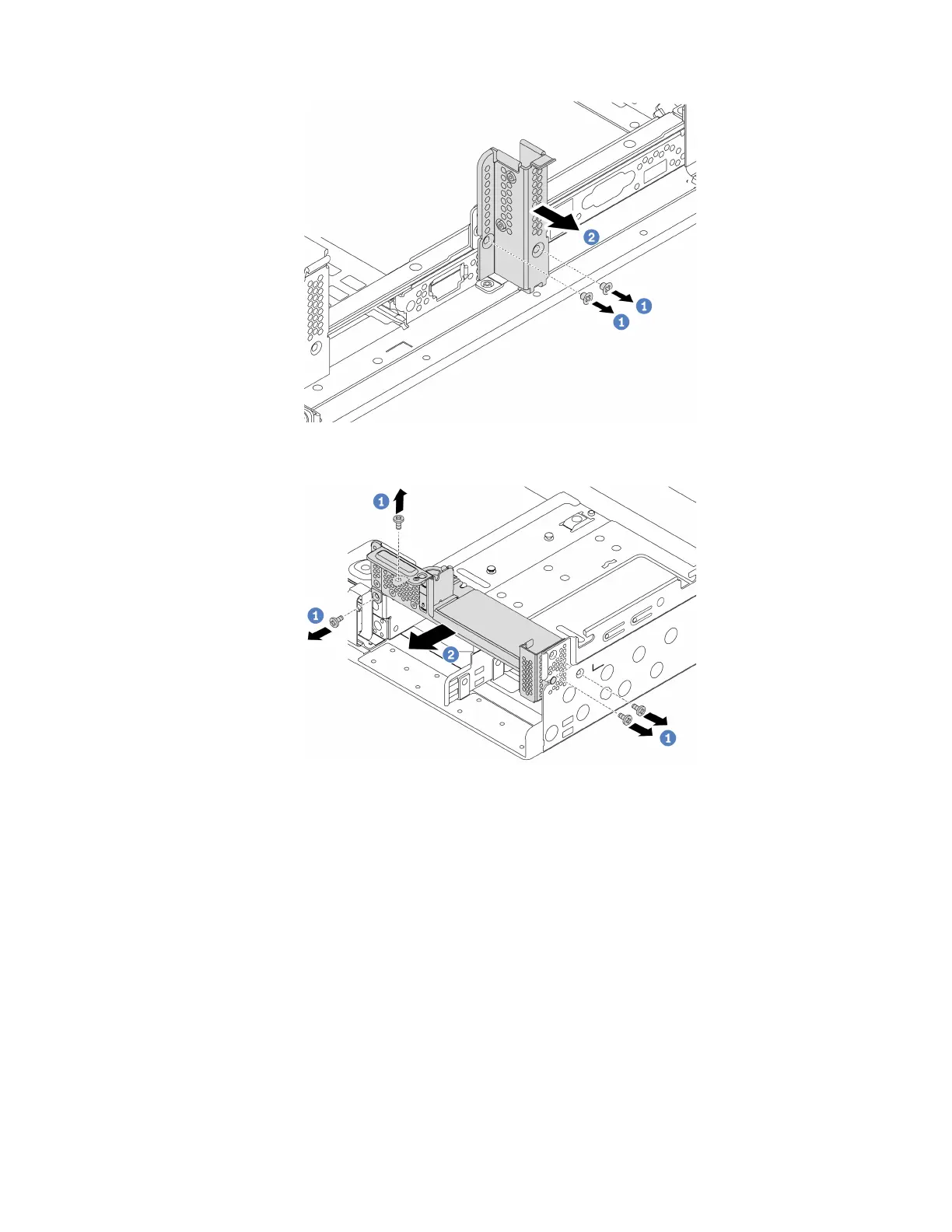

Figure 252. B1 rearwall bracket removal (middle)
Figure 253. C1 rearwall bracket removal (right)
After you finish
1. Install required rearwall brackets back to the rear chassis.
2. If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
326
ThinkSystem SR650 V2Maintenance Manual
