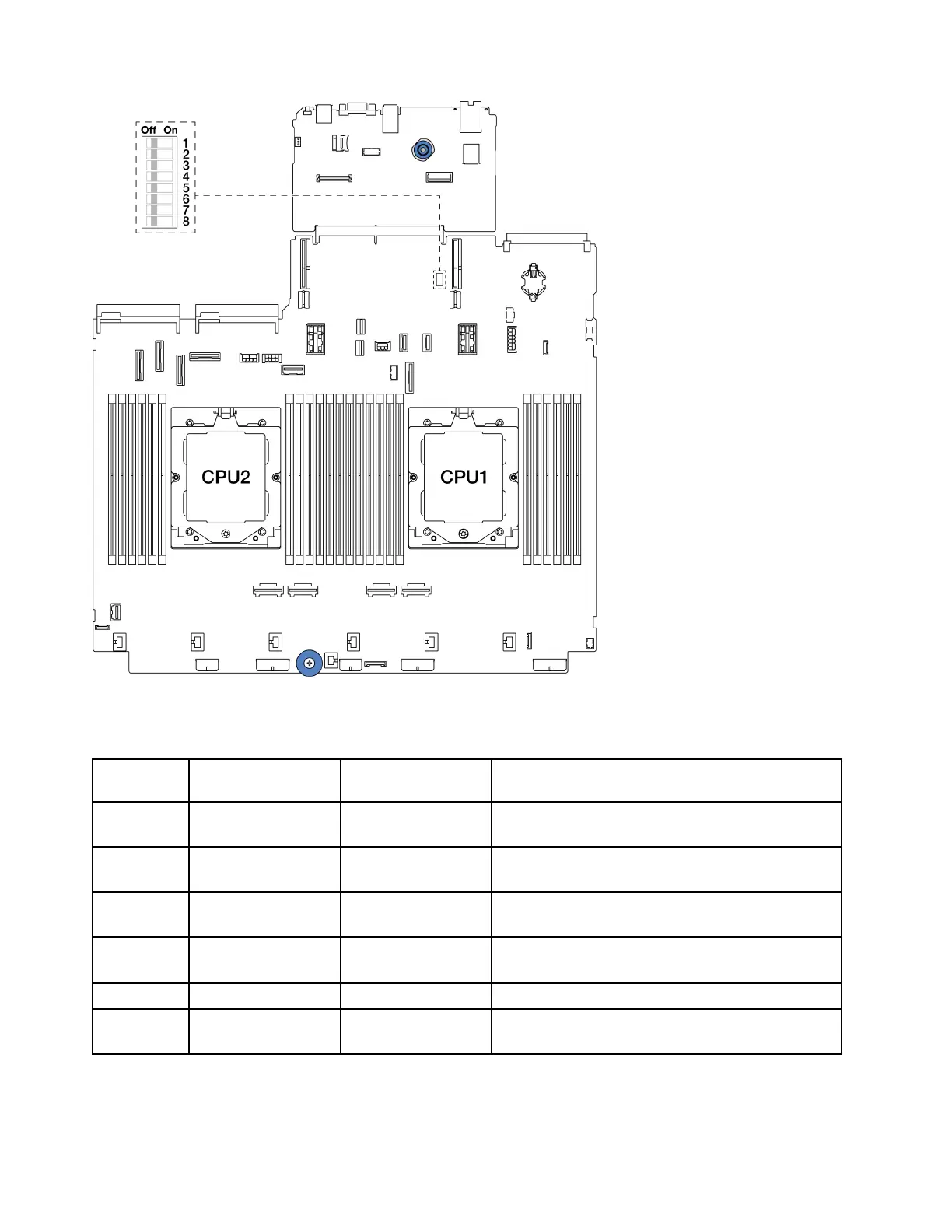

Figure 8. Switch block on the system board assembly
Table 13. Switch block on the system board assembly
Switch
number Switch name
Default position Description
SW5-1 Force BMC CPU
reset
Off Forces BMC and CPU into reset when changing it to
the ON position.
SW5-2 Clear CMOS Off Clears the real-time clock (RTC) registry when
changing it to the ON position.
SW5-3 Password override Off Overrides the power-on password when changing it
to the ON position.
SW5-4 FPGA reset Off Forces FPGA into reset when changing it to the ON
position.
SW5-5 N/A N/A N/A
SW5-6 MFG mode Off Enables MFG mode of firmware (UEFI/XCC/FPGA)
when changing it to the ON position.
24 ThinkSystem SR665 V3 System Configuration Guide
