b. Grasp the riser assembly by its edges and carefully lift it straight up and off the chassis.
• Riser 3 assembly
Note: The following uses the Gen 4 riser 3 cage as an example for illustration. The replacement
procedure is the same for Gen 5 riser 3 cage.
Grasp the riser assembly by its edges and carefully lift it straight up and off the chassis.

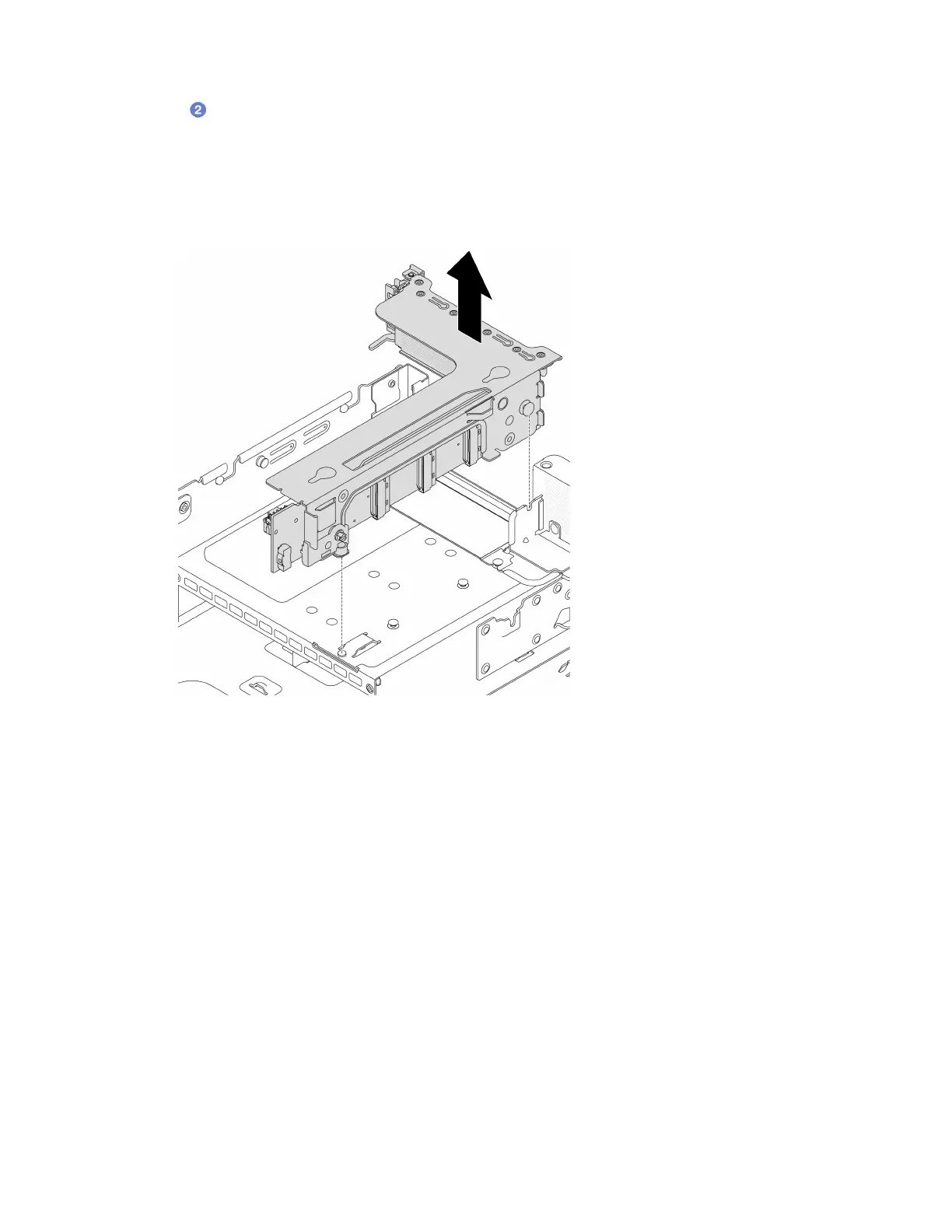

Figure 202. Removing the riser 3 assembly
• 4LP riser 3/4 assembly
1. Remove riser 3 assembly and riser 4 assembly.
