Procedure
Step 1. Remove the top cover. See “Remove the top cover” on page 392.
Step 2. Disconnect the cable of the super capacitor module.
Step 3. Remove the super capacitor module.

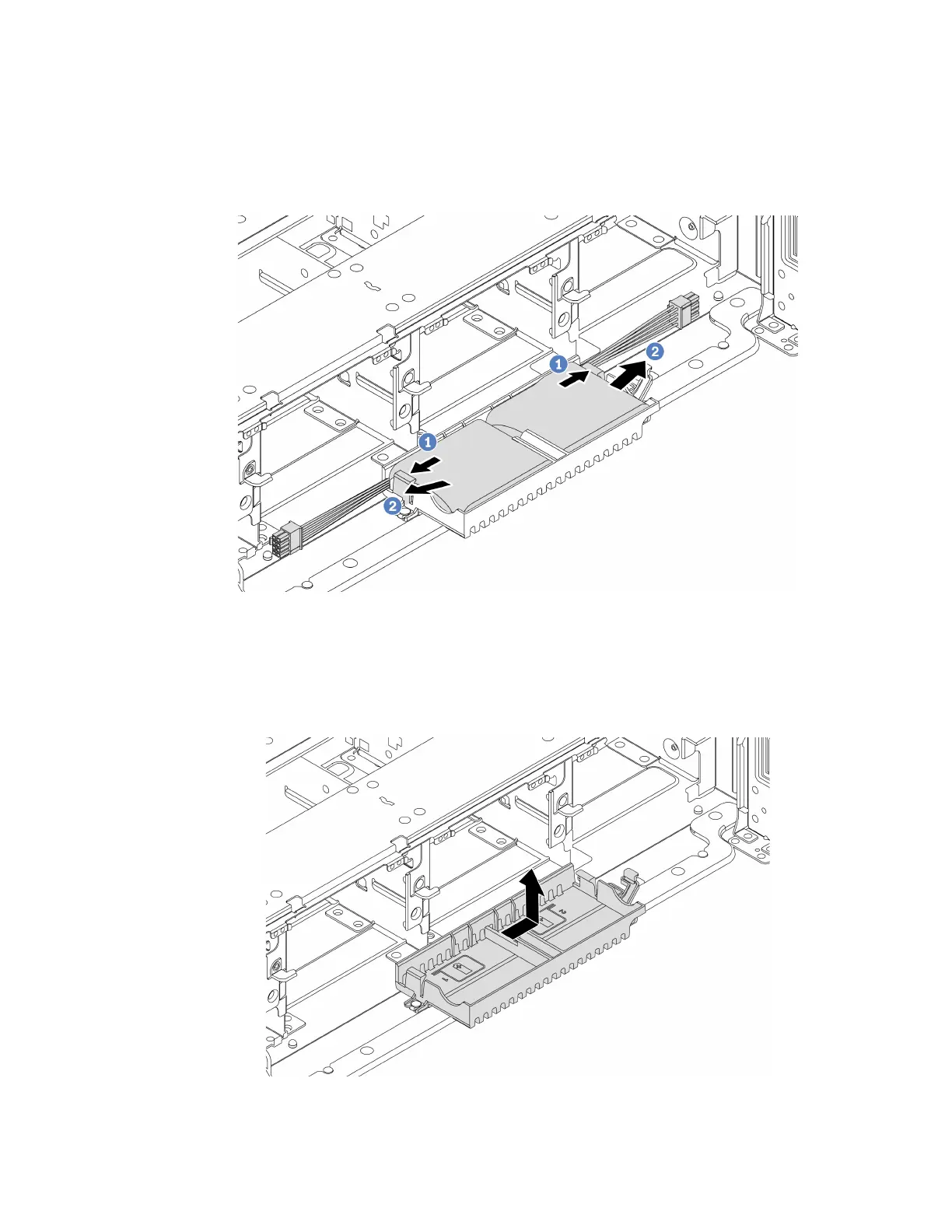

Figure 138. Super capacitor module removal
1. Open the retention clip on the super capacitor holder.
2. Take the super capacitor module out of the holder.
Step 4. Remove the super capacitor holder as shown if necessary.
Figure 139. Super capacitor holder removal
