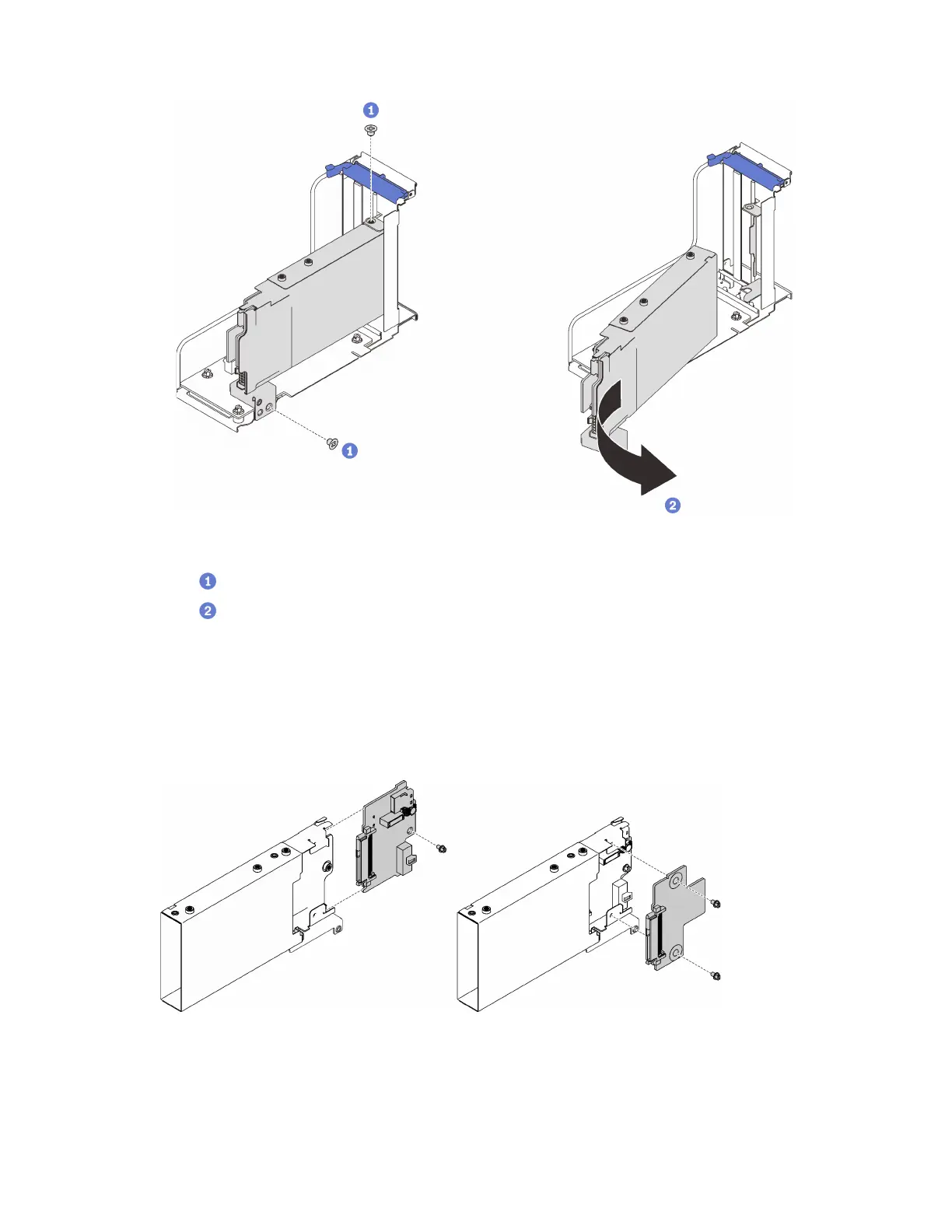

Figure 34. Removing the 7mm drive cage from the riser
Remove the two screws that secure the drive cage to the riser.
Rotate the drive cage to remove it from the riser.
After this task is completed
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
• If you plan to recycle the component:
1. Remove the three screws that secure the two drive backplanes to the drive cage.
Figure 35. Disassembling the 7mm drive cage
2. Recycle the component in compliance with local regulations.
Chapter 4. Hardware replacement procedures 117
