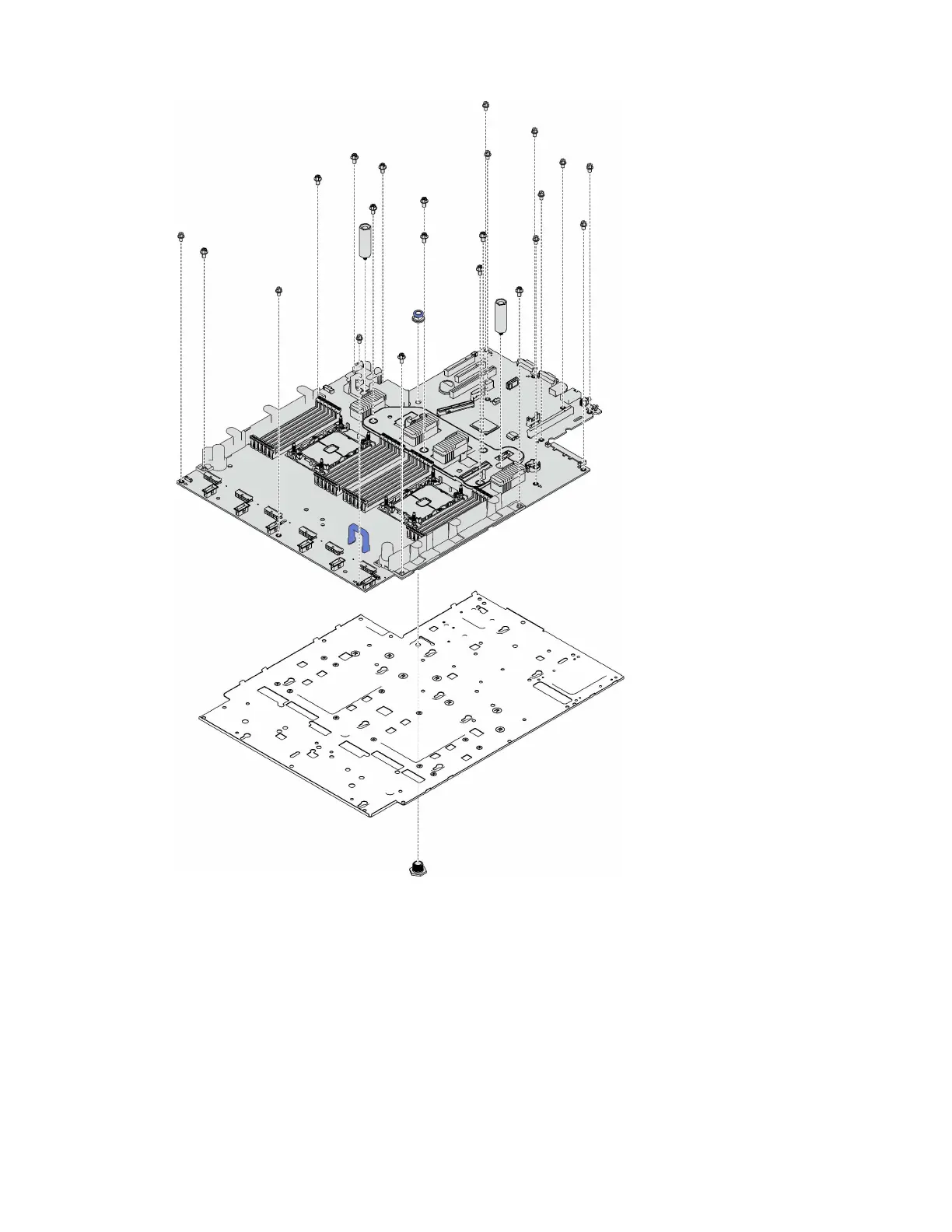

Figure 122. Disassembling the system board
Step 3. Separate the system board from the supporting sheet metal.
After this task is completed
Recycle the unit in compliance with local regulations.
Install the system board
Follow instructions in this section to install the system board.
Attention:
Chapter 4. Hardware replacement procedures 207
