Table 46. Processor and memory module layout: processor 1 and 2
1 DIMM 1-6 4 DIMM 7-18
2 DIMM 19-24 5 Processor 1
3 Processor 2

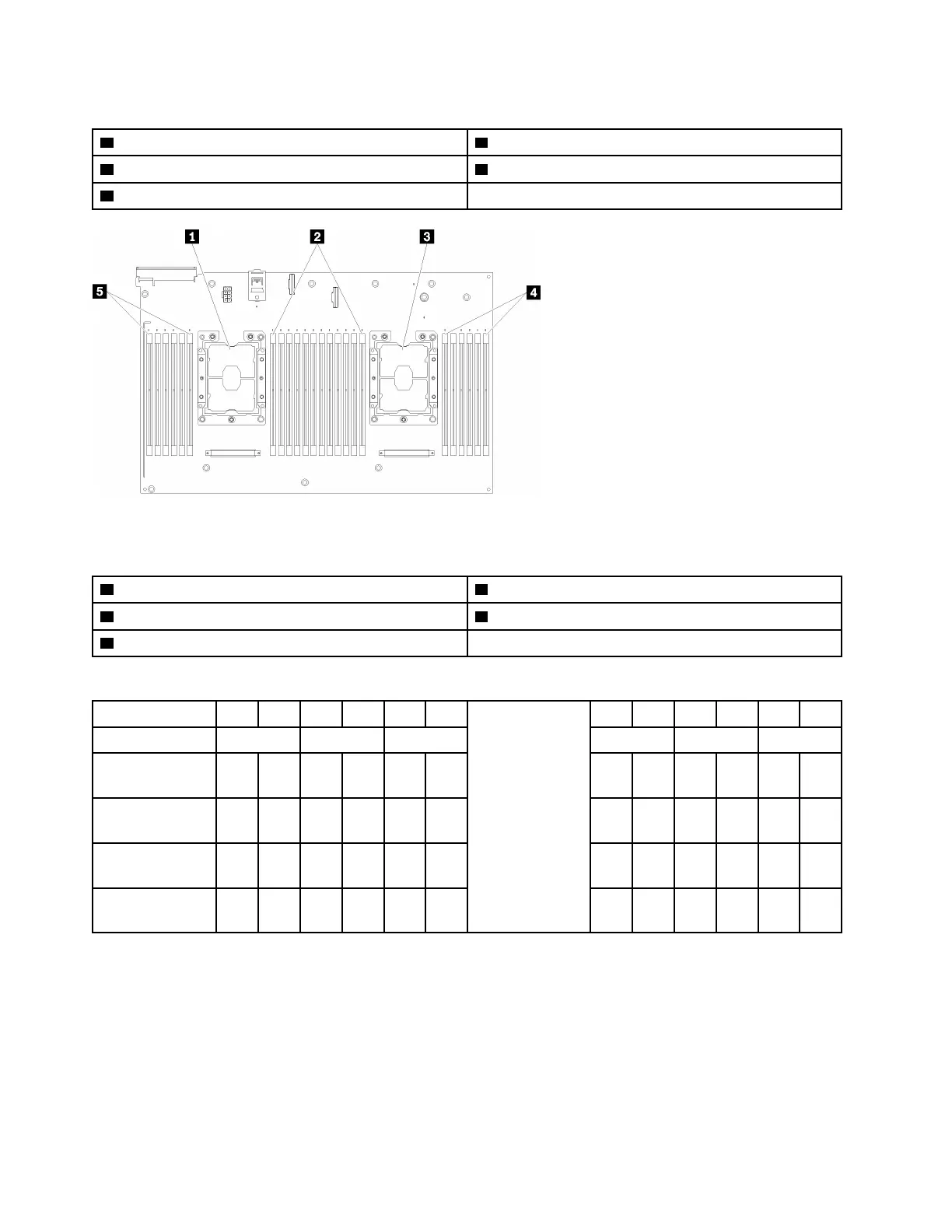

Figure 47. Processor and memory module layout: processor 3 and 4
Table 47. Processor and memory module layout: processor 3 and 4
1 Processor 3 4 DIMM 43-48
2 DIMM 31-42 5 DIMM 25-30
3 Processor 4
Table 48. Channel and slot information of DIMMs around a processor
Slot 0 1 0 1 0 1
Processor
1 0 1 0 1 0
Channel Channel 2 Channel 1 Channel 0 Channel 0 Channel 1 Channel 2
DIMM number
(Processor 1)
1 2 3 4 5 6 7 8 9 10 11 12
DIMM number
(Processor 2)
13 14 15 16 17 18 19 20 21 22 23 24
DIMM number
(Processor 3)
25 26 27 28 29 30 31 32 33 34 35 36
DIMM number
(Processor 4)
37 38 39 40 41 42 43 44 45 46 47 48
Memory mirroring DIMM population sequences for each of the supported processor configurations is shown
by one of the following topics:
•
“Installation order: memory mirroring with two processors” on page 69
• “Installation order: memory mirroring with four processors” on page 70
68
ThinkSystem SR860 Setup Guide
