Lenze 8200 motec Series - Mounting of function module (option)

Electrical installation
Mounting of function module (option)
5

94
EDK82MV752 DE/EN/FR 7.2
5.4 Mounting of function module (option)
 Stop!
ƒ Control cables must always be shielded to prevent interference injections!
ƒ Remove the FIF cover from the electronic module and the protection covers
of the function modules. Otherwise the motec and the function modules
can be damaged!
ƒ The (bus) function modules can be combined with the bus I/O E82ZAFB201.
All other combinations are not permissible!

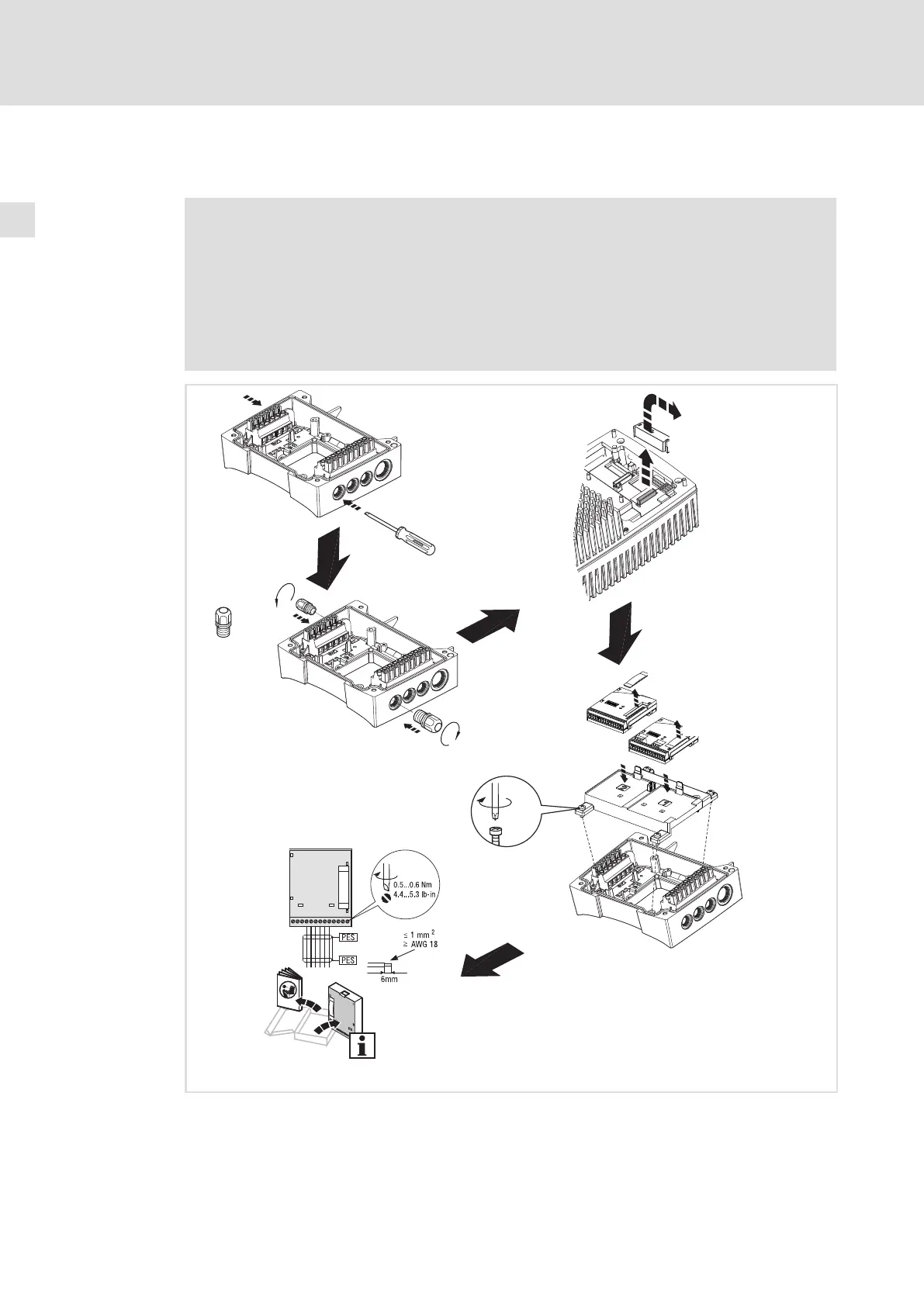

8200mot447
0
1
1
9.7 lb-in
1.1 Nm
3 x M25
4 x M16
