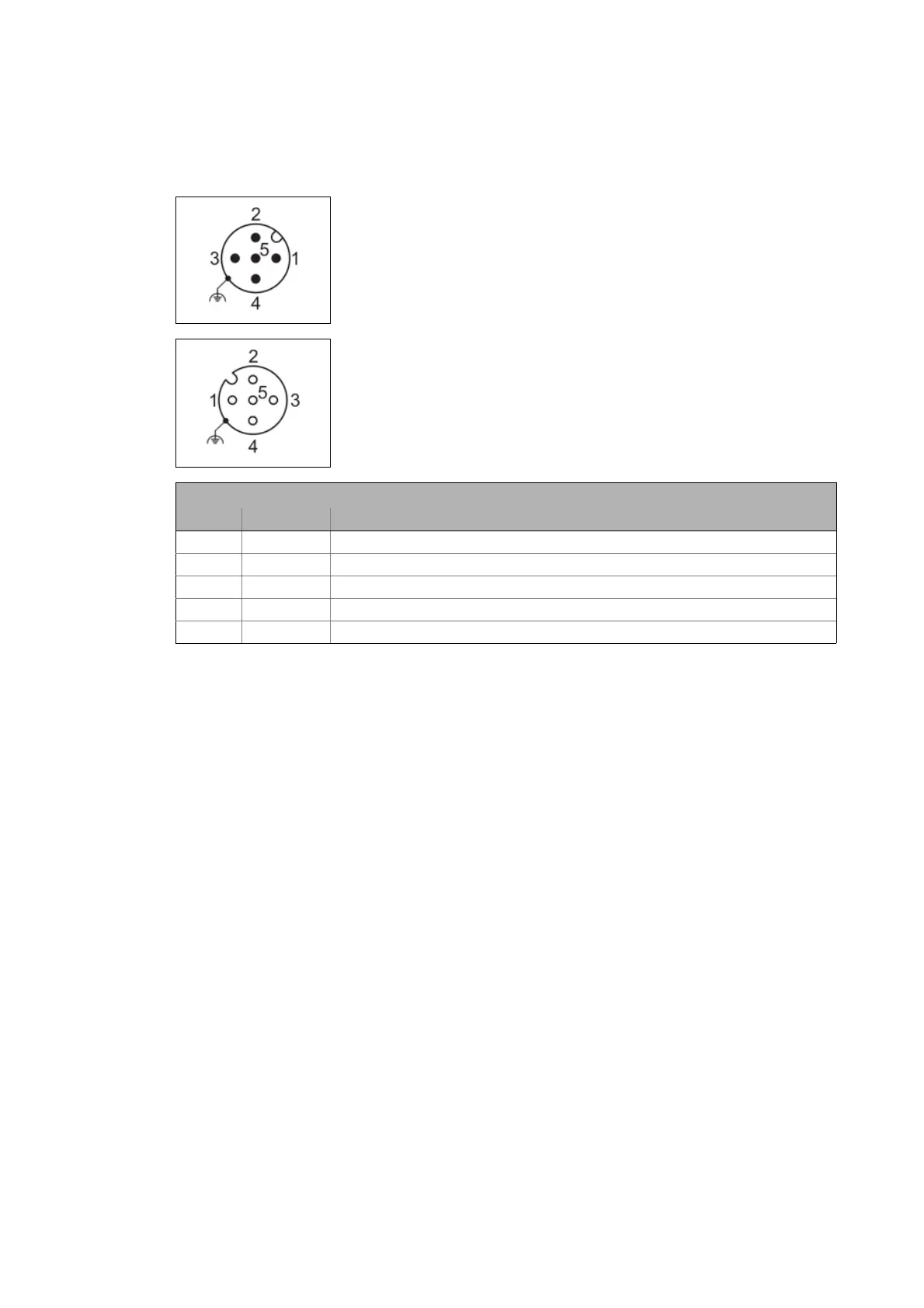

5.2.5 CANopen connection
• Input: M12 pins, 5-pole, A-coded
• Wiring of terminal strip X3
• Output: M12 socket, 5-pole, A-coded
• Wiring of terminal strip X3
CANopen connection
Pin Signal Description
1 - Not assigned
2 - Not assigned
3CG CAN GND potential
4 CH CAN-High data line
5CL CAN-Low data line
