Extensions for automation
Modules
Mounting and dismounting function modules
6
130
EDK82EV222 DE/EN/FR 13.0

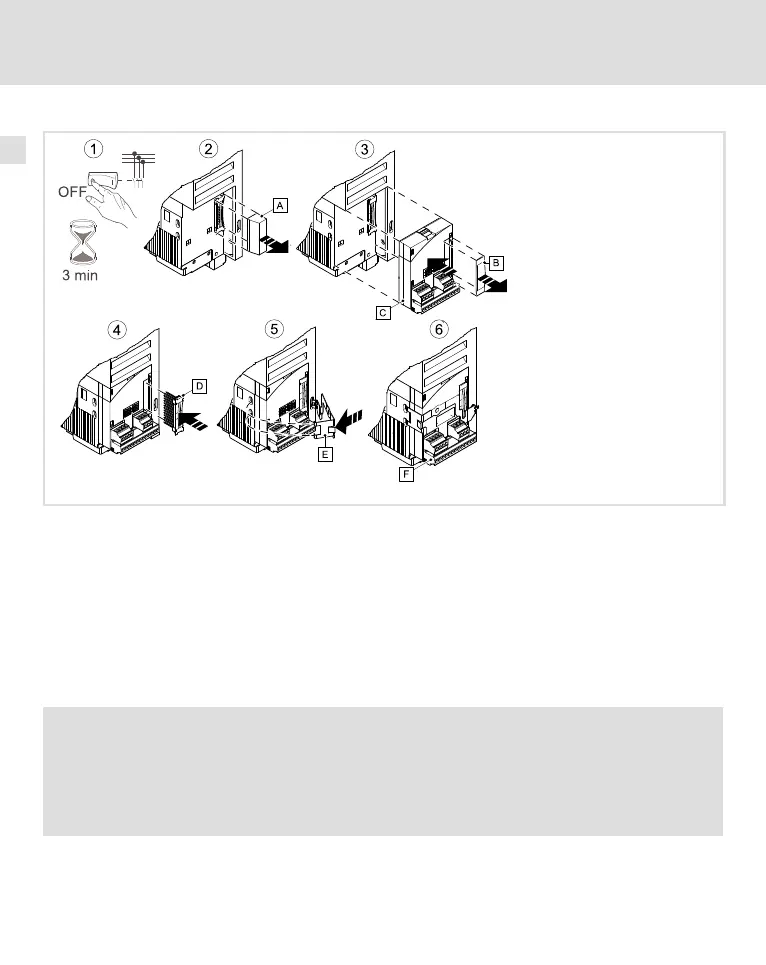

Mounting
8200vec601
1. Disconnect the drive controller from mains and wait at least 3 minutes!
2. Remove the FIF cover from the FIF interface.
3. Remove protective cap of the function module and plug function module onto the FIF
interface.
4. Insert the plug connector into the contact strip of the function module until it snaps in.
Additionally fit the retaining clip so that the module cannot be removed together with the terminal
strips during wiring:
5. Insert the retaining clip into the recess, place it on the function module and latch it.
6. Wire the function module (see mounting instructions of the function module).
Note!
Keep the FIF cover and the protection cover of the function module so that you can
attach them again after you have dismounted the function module.
The controller can only be commissioned if a function module or the FIF cover is
plugged on the FIF interface.
