Lenze EPM-H502 - 5.2 Project transfer to the operating unit

Commissioning
Project transfer to the operating unit
Connecting operating unit and PC
5

69
EDBPM−H502 DE/EN/FR 5.1
5.2 Project transfer to the operating unit
5.2.1 Connecting operating unit and PC
 Stop!
Only connect PC and operating unit when the units are switched off!
l
HMI Designer
FUSE 800 mA
+(18-32) VDC 10W
0 VDC
1
2
3
4
N. C.
1234
ASP8
1
2
0
N.C.
CAN+
Shield
CAN-
V-
1234 5
h502_007

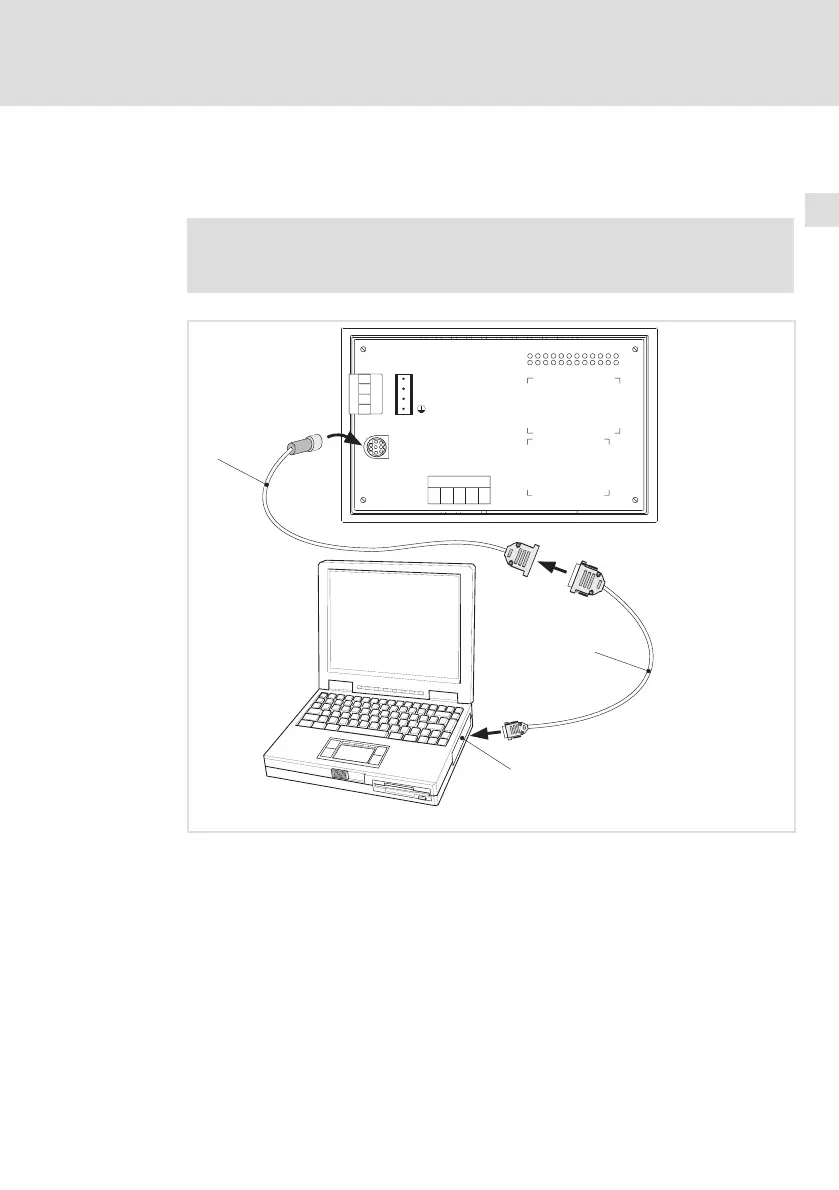

Fig. 5−1 Connecting operating unit and PC
1. Plug the programming adapter EPZ−H111  onto the ASP8 interface.
2. Connect download cable EPZ−H110  to programming adapter EPZ−H111 .
3. Plug download cable EPZ−H110
 onto COM1 or COMx  at PC.
