Mechanical installation
Dimensions
3
25
EDKRBD180R DE/EN/FR 2.0

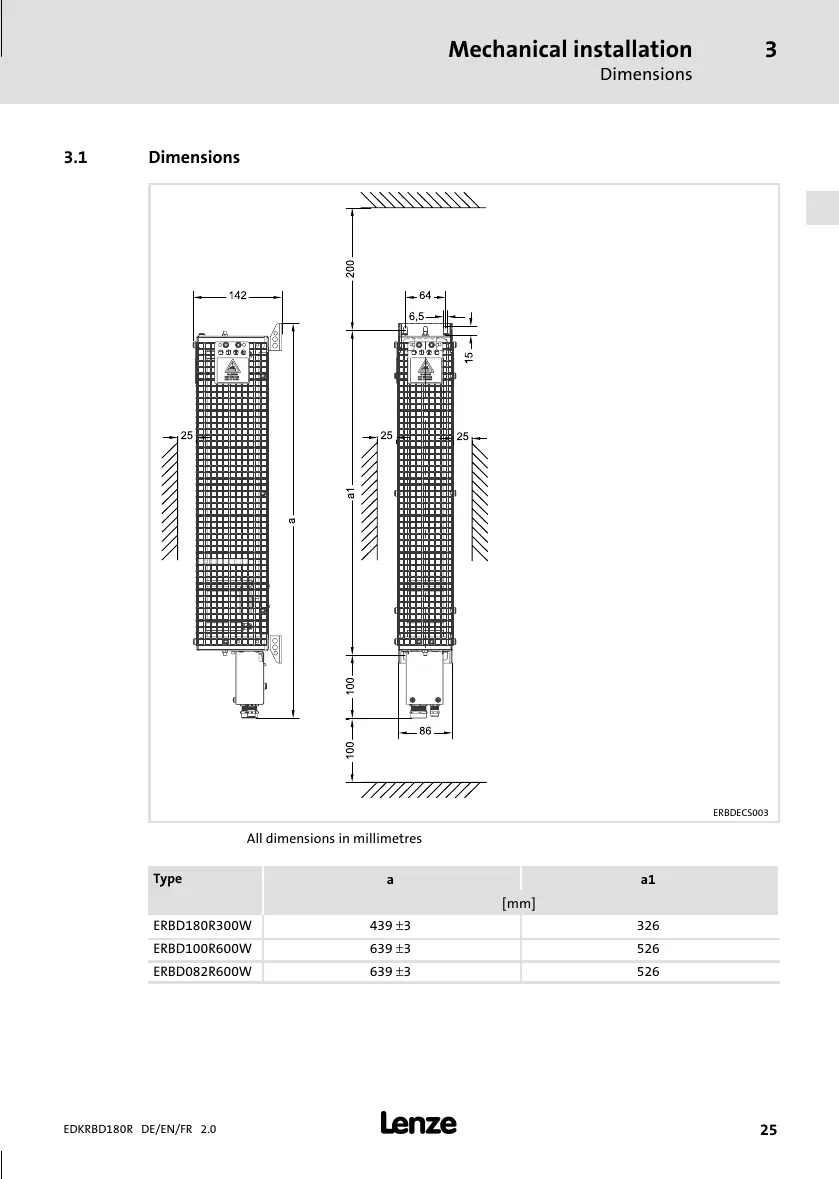

3.1 Dimensions
ERBDECS003
All dimensions in millimetres
Type
a a1
y
p
e
[mm]
ERBD180R300W 439 ±3 326
ERBD100R600W 639 ±3 526
ERBD082R600W 639 ±3 526
