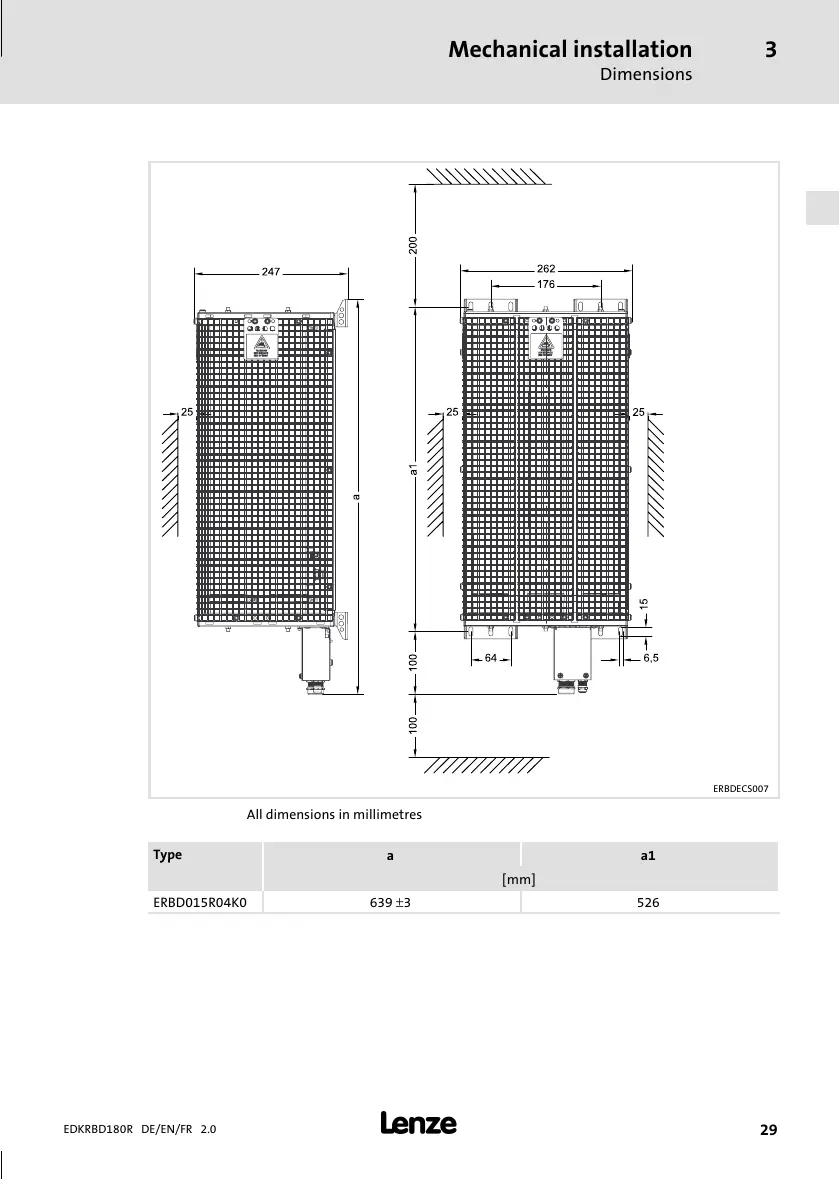

Mechanical installation
Dimensions
3
29
EDKRBD180R DE/EN/FR 2.0
ERBDECS007
All dimensions in millimetres
Type
a a1
y
p
e
[mm]
ERBD015R04K0 639 ±3 526
