Mechanical installation
Mounting steps
3
31
EDKRBD180R DE/EN/FR 2.0

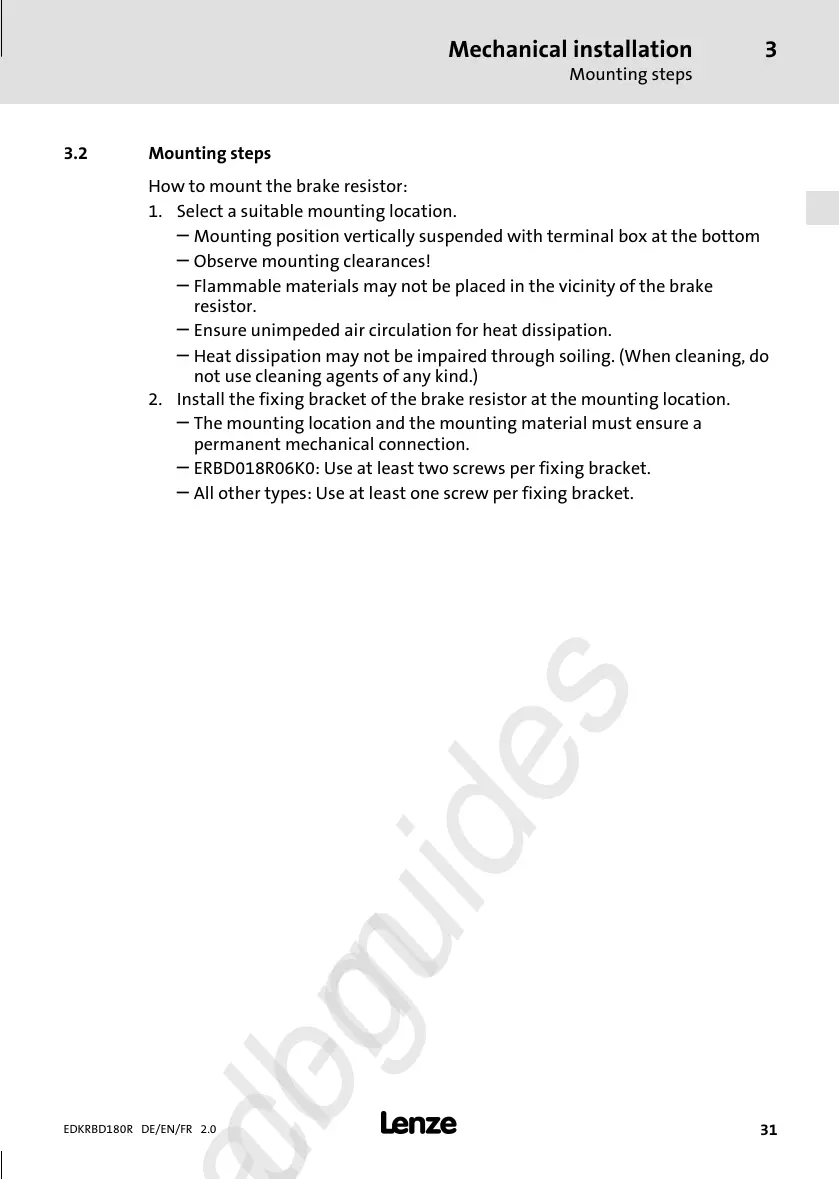

3.2 Mounting steps
How to mount the brake resistor:
1. Select a suitable mounting loc ation.
–
Mounting position vertically suspended with terminal box at the bottom
–
Observe mounting clearances!
–
Flammable materials may not be placed in the vicinity of the brake
resistor.
–
Ensure unimpeded air circ ulation for heat di ssipation.
–
Heat dissipation may not be impaired through soiling. (When cleaning, do
not use cl eaning agents of any kind.)
2. Install the fixing bracket of the brake resistor at the mounting location.
–
The mounting location and the mounting material must ensure a
permanent mechanical connection.
–
ERBD018R06K0: Use at least two screws per fixing bracket.
–
All other types: Use at least one screw per fixing brac ket.
