Lenze g500-B - Dimensions; Basic Dimensions

Dimensions
Basic dimensions
Not
es on the basic dimensions

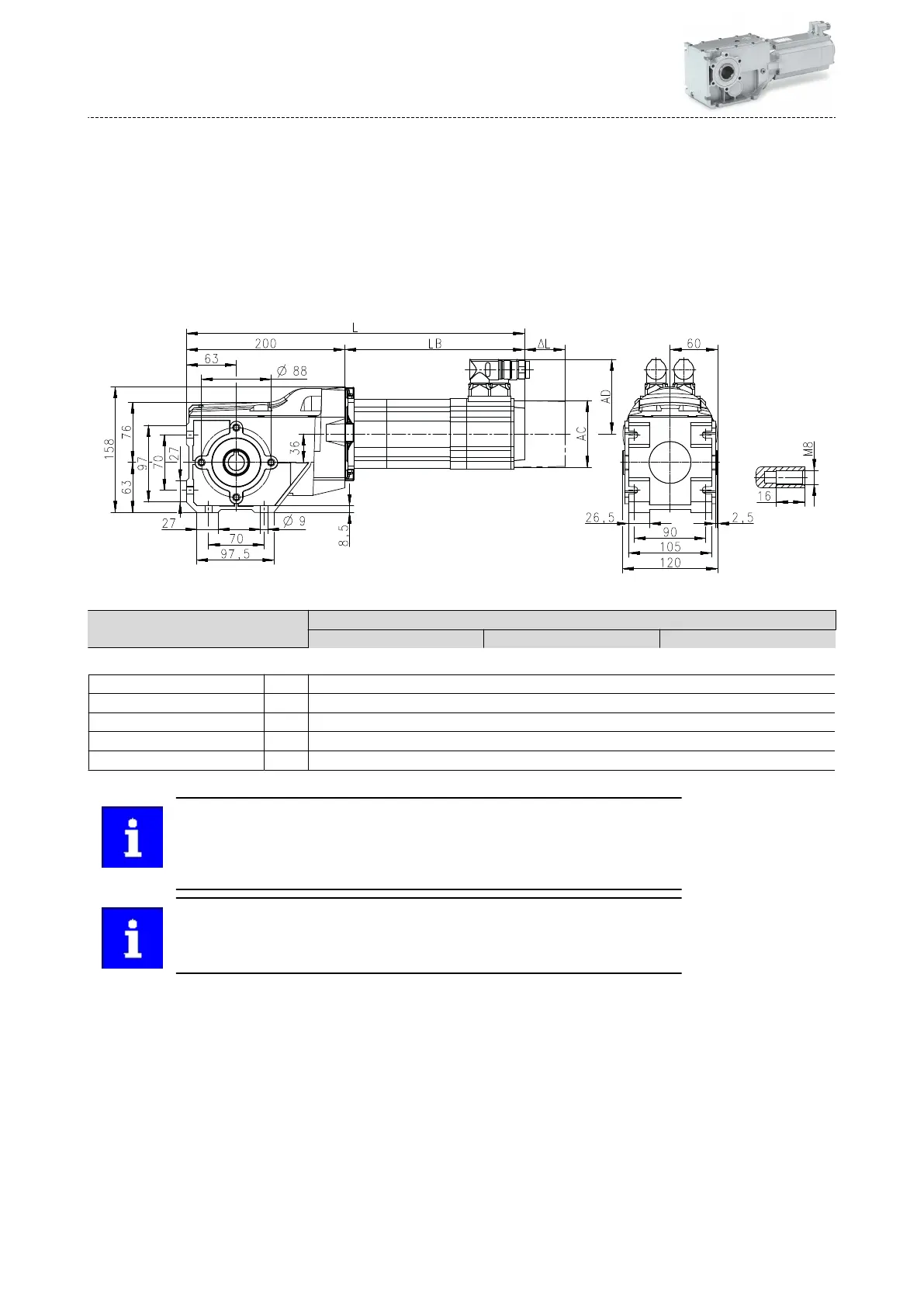

The following legend shows the layout of the dimension sheets:
Example Explanaon
g500-B110 Gearboxes
Gearbox design: hollow sha, with foot (HAR/HBR/HAK) Gearbox version ^ 12
Motor m850-
S120/S3960 S120/M3960 S120/L3960
Table content Explanaon
Total length L Total length of the drive without brake
Motor length LB Length of the motor without brake
Length of motor opons Δ L Addional leng
th (with brake)
Motor diameter AC Motor diameter
Motor/connecon distance AD Distance from motor center to connector end
If the mounng ar
ea (foot support) towards the motor is longer than the
gearbox foot, some motors collide with the mounng area!
For an accurate check of the geometrical data, Lenze recommends the use of
the »Product Finder« at www.Lenze.com.
The dimensions also apply for motors with one-cable technology
Technical data
Dimensions
Basic dimensions
