Mounng
Transmission elements
•
Fit or remove transmission elements only using suitable equipment.
•
For ng the transmission elements use the center hole in the sha.
•
Avoid impacts and shocks.
•
In case of a belt drive, tension the belt in a controlled manner according to manufacturer informaon.
•
Be sure to carry out mounng in a manner free from distoron.
•
Compensate minor inaccuracies by suitable exible couplings.
Fastening
•
Use screws with a minimum property class of 8.8.
•
Observe prescribed starng torques.
•
Secure against unintended loosening.
•
In case of an alternang load, we recommend that you apply an anaerobic curing adhesive between
ange and mounng area.
Gearbox with hollow sha
•
Use ng grease in the area of the contact surfaces of machine sha and hollow sha bore.
•
Be sure to carry out mounng in a manner free from distoron.
•
Lead forces only across the hollow sha and not across the housing.
•
For axial fastening, use the snap ring grooves in the hollow sha.

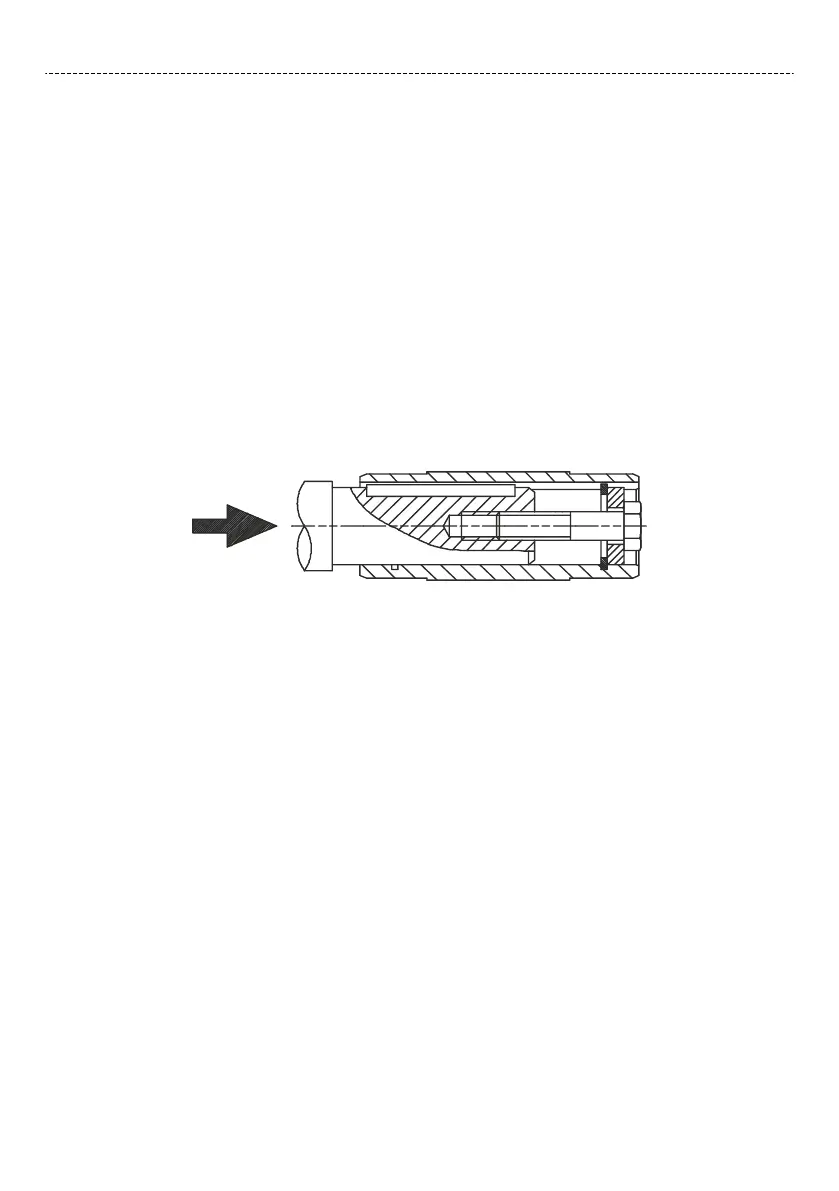

Fig. 2: Proposed soluon for axial fastening
Mechanical installaon
Mounng
