7

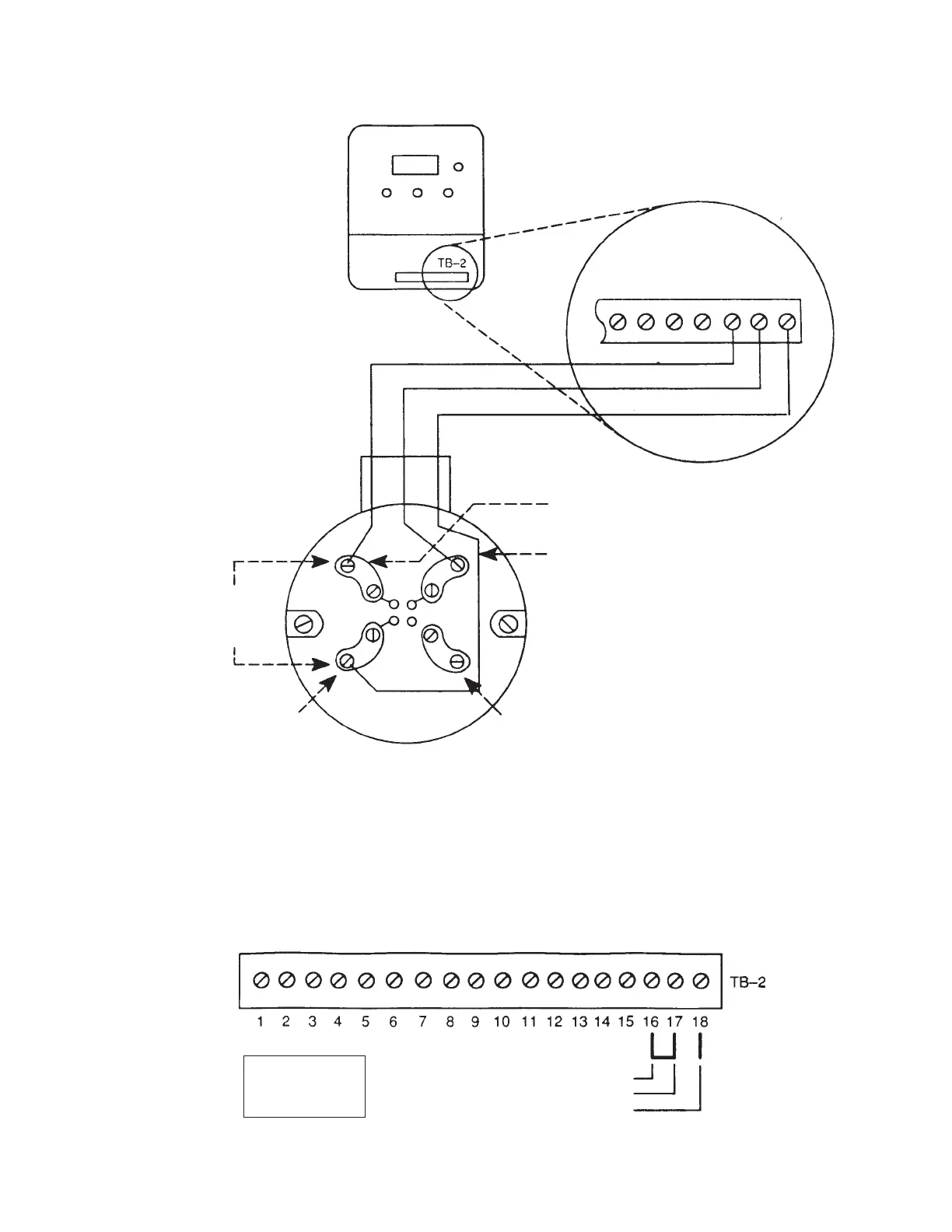

FIGURE 5
CONNECTING AN RTD TO THE PMC
FIGURE 6
PMC-1
16 17 18
Usually black
Black
Red
TB-2
Approximate
resistance = 0
Approximate
resistance
@ 75°F = 109
Unused terminal (not connected)
3 Wire RTD Head
Wiring Connections for Two—Wire RTD (temperature)
Jump
Black RTD lead
Red RTD lead
Terminal colored red
or other contrasting color
NOTE:
Jumper J5/J6
must be on J6.
