Friedrich Leutert GmbH & Co. KG MSI-3 Operating Instructions, Page 6
11
6
9
8
1
10
12
7
2
5
4c
4a
4b
4d
3
5
5
older versionolder version latest versionlatest version

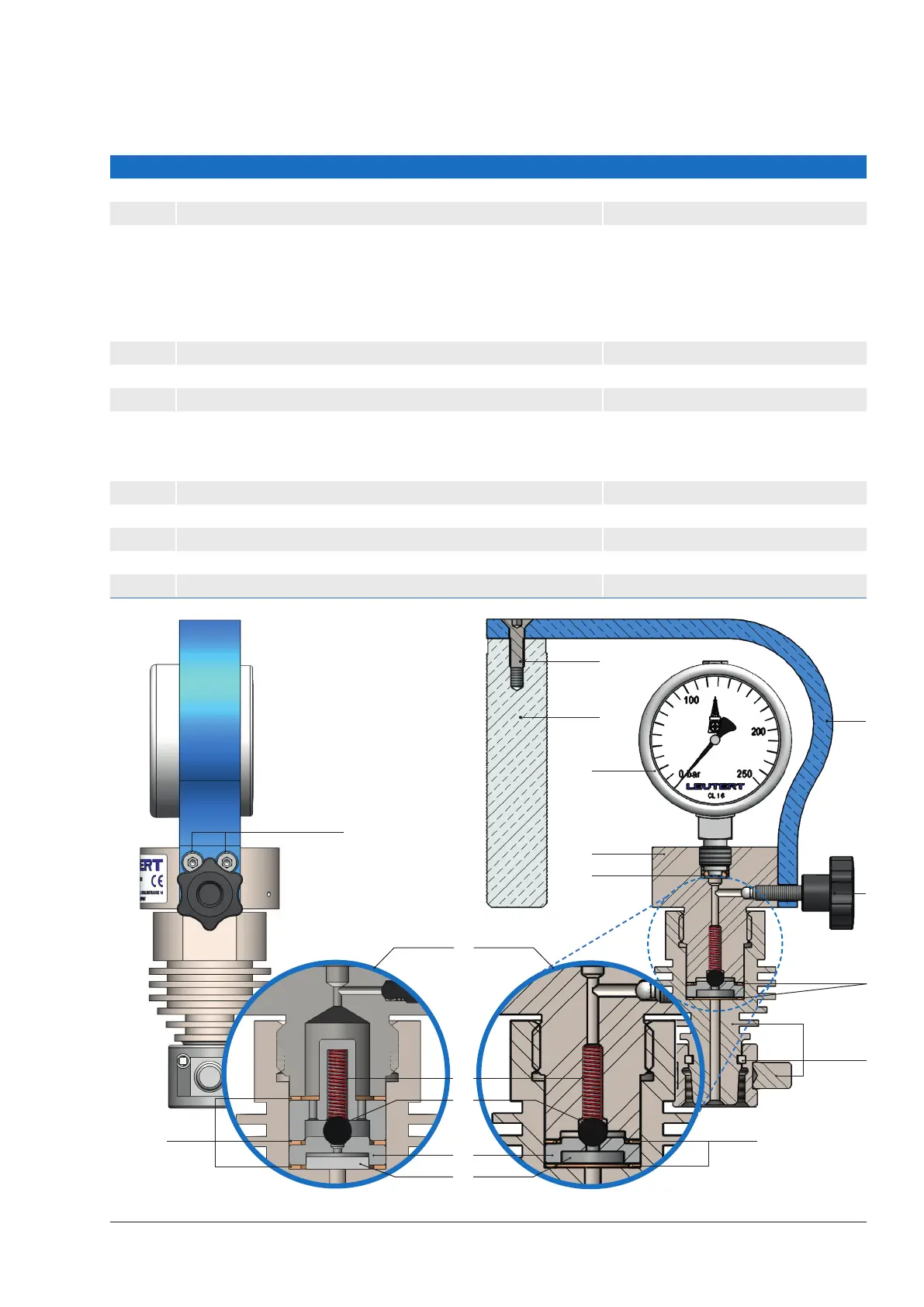

Item Description Part-No.
Components
1 Upper part 4645.11.00001
2 Bottom part assembly 4645.11.00018
3 Valve assembly 4645.99.01000
4a Spring 4645.11.00006
4b Ball 4645.11.00005
4c Valve base 4645.11.00003
4d Filter 4645.11.00003
4 Valve guide 4645.11.00004
5 Copper seal 9000.00.89123
6 Venting screw 4645.11.00008
7 Pressure gauge 0 – 160 bar 9000.00.91307
Pressure gauge 0 – 250 bar 9000.00.91308
Pressure gauge 0 – 300 bar 9000.00.91309
8 Pressure gauge seal 9000.00.89122
9 Bracket 4645.11.00009
10 Handle 4 6 45.11.0 0 011
11 Hexagonal screw ISCHRBM05.055
12
Countersunk screw SSCHR BM 0 6.110
