Step 2: Connection to PoE PD

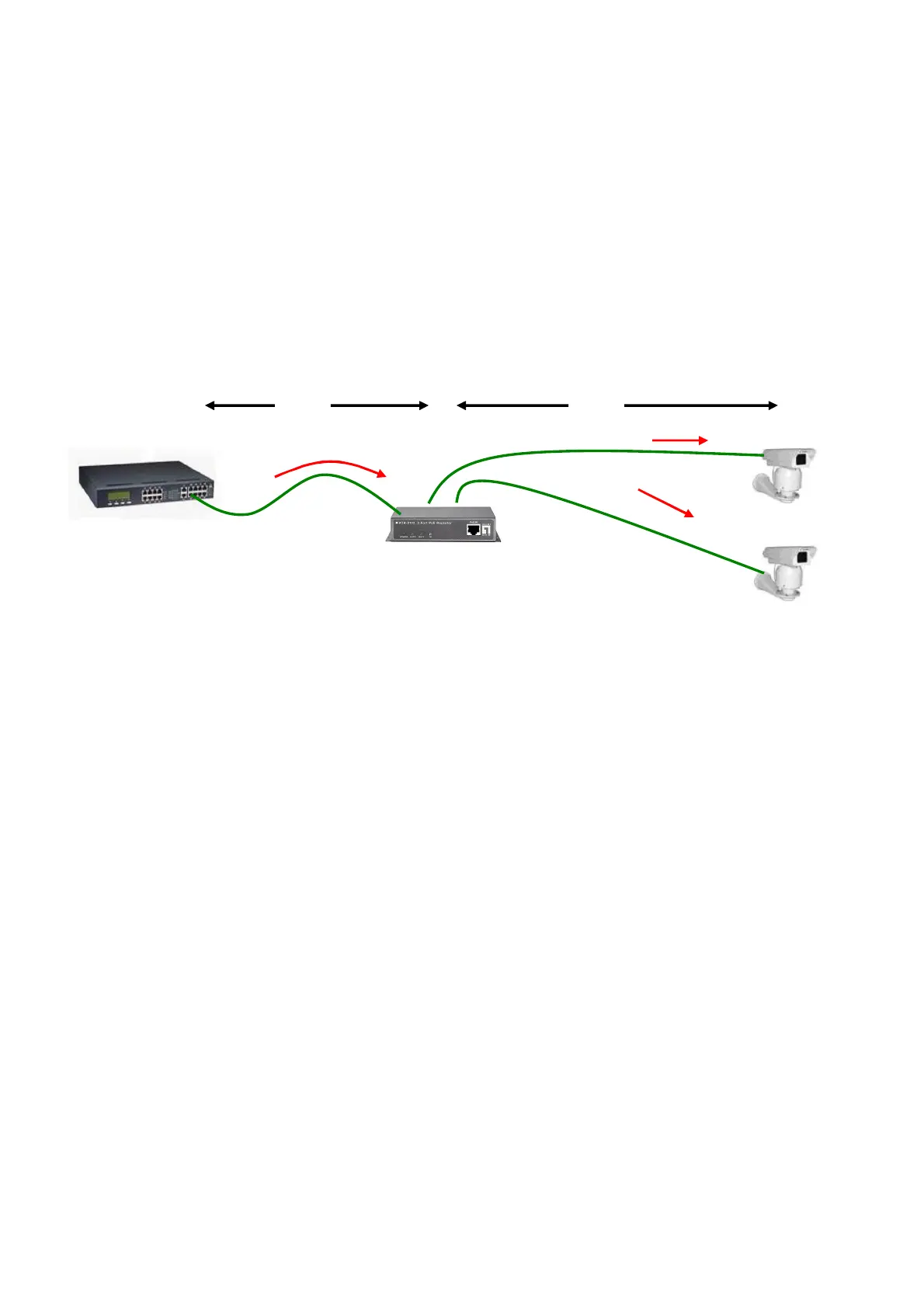

D. Connect the PoE OUT1 & OUT2 port of PR102 to power up the PD device as the following
connection.
E. The LED indicators “OUT1” will turn on indicating the PoE and Ethernet connection.
F. The LED indicators “OUT1” will flash to indicate Ethernet data activity.
G. The LED indicators “OUT2” will turn on indicating the PoE and Ethernet connection.
H. The LED indicators “OUT2” will flash to indicate Ethernet data activity.
** Note: If the Ethernet cable is not standard CAT5 cable, the POR-0102 may be working for shorter
length than 100 meter.
V1.0
POE
Ethernet Switch
100 m 100 m
POR-0102
Power
