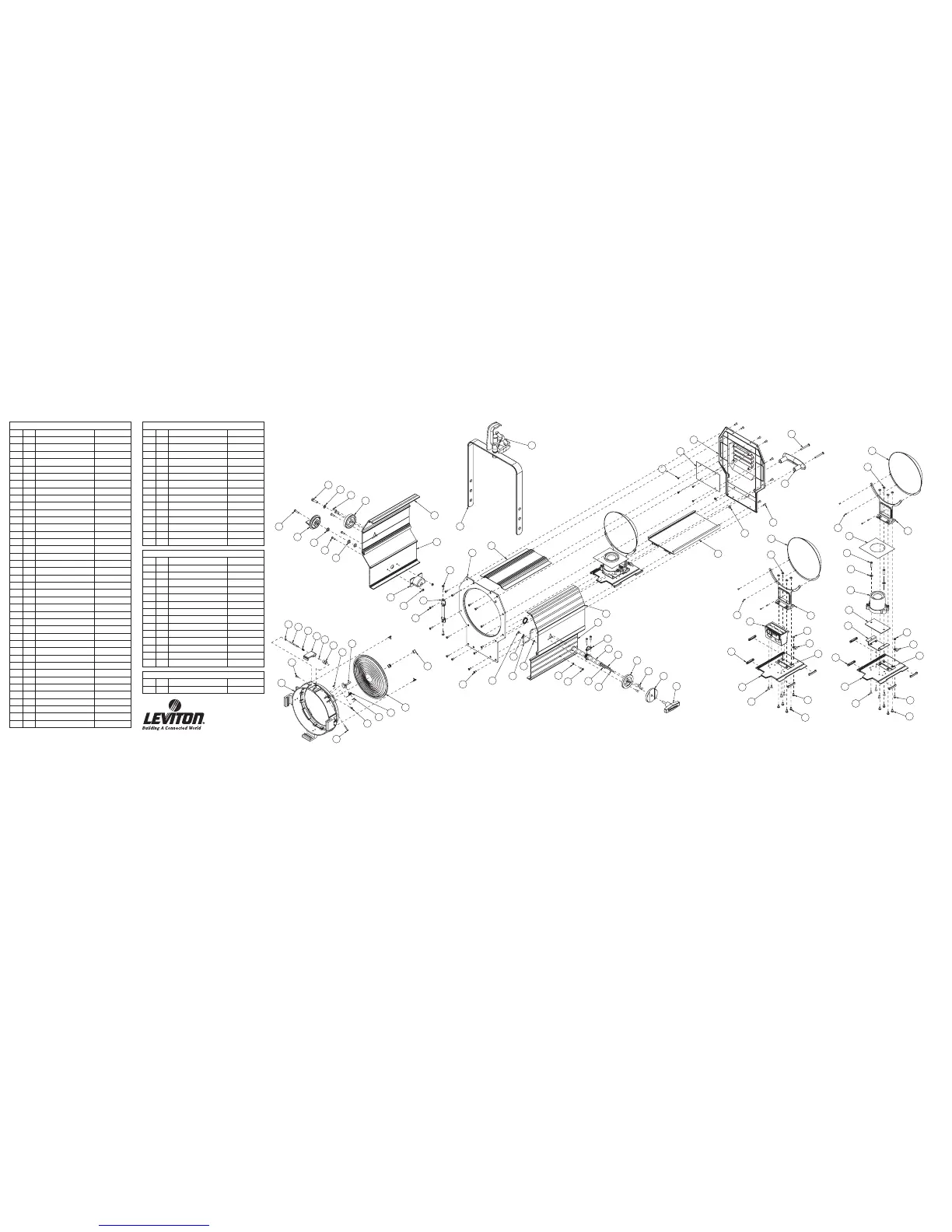

Leviton 8" - Parts List; Lamp Housing Assembly; Platform Assembly - Theater Fresnel; Platform Assembly - Television Fresnel

Leviton NSI Division Headquarters
20497 SW Teton Avenue, Tualatin, OR 97062
Customer Service Telephone: 800.736.6682
Customer Service Fax: 503.404.5594
Technical Services: 800.959.6004
Leviton Manufacturing Company, Incorporated.
59-25 Little Neck Parkway, Little Neck, NY 11362-2591.
Visit Levitonʼs websites at http://www.nsicorp.com
& http://www.leviton.com
Copyright
®
2003. Leviton Manufacturing Company, Inc. All Rights Reserved
Specifications and pricing subject to change at any time.
54
53
50
51
41
52
49
48
47
46
45
44
43
42
41
40
13
12
10
9
2
4
14
15
16
17
18
19
20
22
17
21
7
23
5
11
70
20
24
25
26
26
17
1
3
27
28
29
30
25
31
32
33
34
6
39
38
23
8
36
35
37
23
55
56
57
58
20
59
20
60
61
62
63
64
65
67
66
20
68
68
20
66
67
69
58
57
23
20
59
55
56
20
LAMP HOUSING ASSEMBLY
Ref. Qty. Description Item Number
1 1 Upper right housing
2 1 Upper left housing
3 1 Lower right housing
4 1 Lower left housing
5 1 Top housing
6 1 Focus track
7 1 Front cover
8 1 Rear cover
9 1 Standoff disk N00-HD237-690
10 3 Rivet, 3/16" x 11/16" N00-HD913-400
11 1 Yoke N00-SM281-330
12 1 Washer, flat
13 1 Bolt, hex head, 1/4-20 x 1"
14 1 Screw, pan head, 10-24 x 1"
15 1 Focus handle N00-KN280-950
16 1 Washer, fibre
17 5 Screw, pan head, 8-32 x 3/4”
18 2 Wave washer N00-HD223-440
19 1 Focus gear assembly N01-SM280-570
20 13 K-lock nut, 8-32
21 2 Screw, pan head, 10-24 x 3/4”
22 1 Hinge N00-HD781-900
23 30 Screw, flat head, 8-32 x 1/2"
24 1 Ring terminal
25 1 Green wire
26 2 Washer, internal tooth, #8
27 1 Strain relief
28 1 Sleeving, 32" long
29 1 Black wire
30 1 White wire
31 1 Standoff disk N00-SM237-550
32 3 Rivet, 3/16" x 7/16"
33 1 Pressure disk N00-SM243-380
34 1 T-bolt N00-HD062-000
35 4 Screw, pan head, 6-32 x 3/8" N00-HD020-800
36 1 Light shield
37 2 K-lock nut, 10-24
38 1 Tilt handle N00-HD707-000
39 2 Screw, pan head, 10-24 x 2"
70 1 C-clamp 000-A00CC-000
DOOR ASSEMBLY
Ref. Qty. Description Item Number
40 1 Lens door assembly
41 2 Screw, pan head, 6-32 x 1/2"
42 1 Lock pin
43 1 Latch handle
44 1 Commpression spring
45 1 Safety clip
46 1 Retaining ring
47 1 Knob
48 1 K-lock nut, 6-32
49 1 Latch
50 1 Latch spring
51 1 Washer, flat
52 1 Screw, pan head, 6-32 x 1"
53 1 8" Fresne lens N01-LE020-110
54 4 Lens fastener N00-HD935-730
PLATFORM ASSEMBLY — THEATER FRESNEL
Ref. Qty. Description Item Number
55 4 Screw, pan head, 8-32 x 3/4"
56 1 Screw, pan head, 8-32 x 1/2"
57 1 Lampholder platform
58 4 Carriage assembly guide N00-SM275-250
59 1 Cable clamp
60 1 Mogul prefocus adapter
61 1 Adapter brace
62 1 Mogul prefocus socket N01-SK020-260
63 2 Washer, flat, #10
64 2 Screw, pan head, 10-24 x 1" N00-HD031-320
65 1 Shield
66 1 Reflector mount
67 4 Rivet, 1/8" x 1/4"
68 1 Reflector
PLATFORM ASSEMBLY — TELEVISION FRESNEL
Ref. Qty. Description Item Number
69 1 Lampholder N00-AS282-310
PK-93196-10-00-0A
