2 ONEREACH SYSTEM INSTALLATION
The slide-in Media Modules provide various configurations of media conversion for
10/100/1000Mb/s network links to VoIP phones, wireless access points, security cameras, and
other devices. Each media conversion channel includes: rear panel MTP
®
or LC optical ports,
front panel RJ45 ports for the copper and indicator LED’s for fiber link, and copper link. Blank
filler plates are available for unused module positions.
The single channel systems use the 1-Port Source, mentioned earlier, as both the source and
media converter (see Part 2 Installation Instructions; item D).

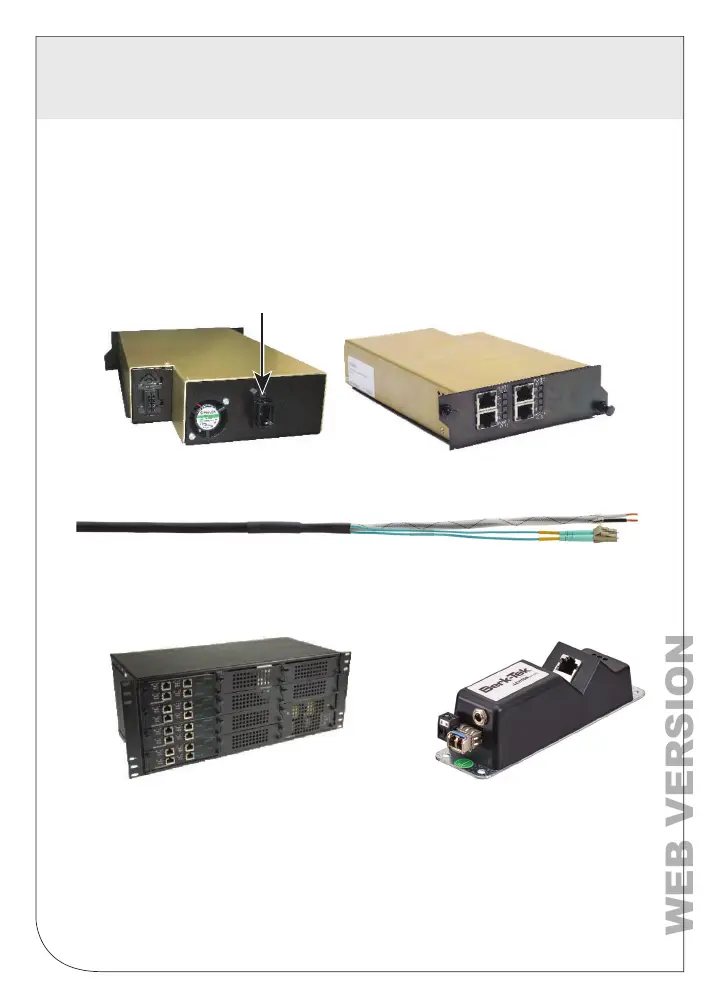

4-Port Media Module
MTP
®
Connector
PI Chassis with (1) PSM and (4) 4-Port Media
Modules and 6 Blank Filler Plates
1-Port PI Source
OneReach Cable Assembly
