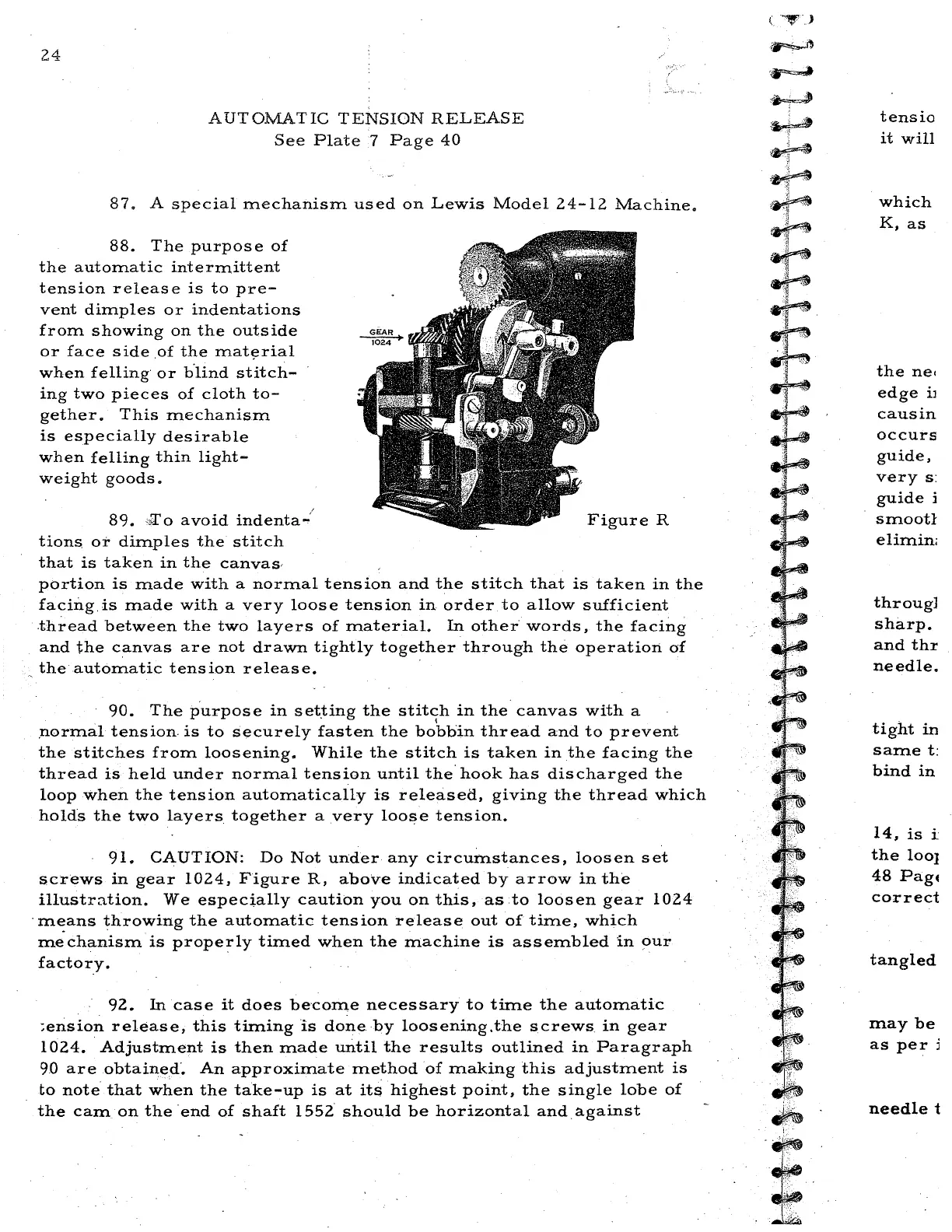

24
AUTOMATIC
TENSION
RELEASE
See
Plate
7
Page
40
87.
A
special
mechanism
used
on
Lewis
Model
24-12
Machine.
88.
The
purpose
of
the
automatic
intermittent
tension
release
is
to
pre-
vent
dimples
or
indentations
from
showing
on
the
outside
or
face
side
.of
the
mat~rial
when
felling
or
b.lind
stitch-
ing
two
pieces
of
cloth
to-
gether.
This
mechanism
is
especially
desirable
when
felling
thin
light-
weight
goods.
89.
,:;r'o
avoid
indenta.:'
tions
or
dimples
the
stitch
that
is
taken
in
the
canvas.
FigureR
portion
is
made
with
a
normal
tension
and
the
stitch
that
is
taken
in
the
facing.is
made
with
a
very
loose
tension
in
order
to
allow
sufficient
.thread
between
the
two
layers
of
material.
In
other
words,
the
facing
and
the
canvas
are
not
drawn
tightly
together
through
the
operation
of
the
automatic
tension
release.
90.
The
purpose
in
setting
the
stitch
in
the
canvas
with
a
. I
.normal
tension.
is
to
securely
fasten
the
bobbin
thread
and
to
prevent
the
stitches
from
loosening.
While
the
stitch
is
taken
in
the
facing
the
thread
is
held
under
normal
tension
until
the.
hook
has
discharged
the
loop
when
the
tension
automatically
is
releaseCl,
giving
the
thread
which
holds
the
two
layers
together
a
very
loose
tension.
91.
CAUTION:
Do
Not
under
any
circumstances,
loosen
set
screws
in
gear
1024,
Figure
R,
above
indicated
by
arrow
in
the
illustration.
We
especially
caution
you
on
this,
as
to
loosen
gear
1024
·
m~ans
throwing
the
automatic
tension
release
out
of
time,
which
mechanism
is
properly
timed
when
the
machine
is
assembled
in
our
factory.
92.
In
case
it
does
become
necessary
to
time
the
automatic
;ens
ion
release,
this
timing
is
done
by
loosening
.the
screws
in
gear
1024.
Adjustment
is
then
made
witH
the
results
outlined
in
Paragraph
90
are
obtained·.
An
approximate
method
of
making
this
adjustment
is
to
note
that
when
the
take-up
is
at
its
highest
point,
the
single
lobe
of
the
cam
on
the
·end
of
shaft
1552
should
be
horizontal
andagainst
~
~
~
~
~
~
~
~
~
~
~
~
!
~
·f
~
-·LA
-r-=
~
"
tensio
it
will
which
K,
as
the
ne•
edge
il
causin
occurs
guide,
very
s:
guide
j
smootl
elimin;
througJ
sharp.
and
thr
needle.
tight
in
same
t:
bind
in
14,
is
i
the
lOOJ
48
Page
correct
tangled
maybe
as
per
j
needle
t
