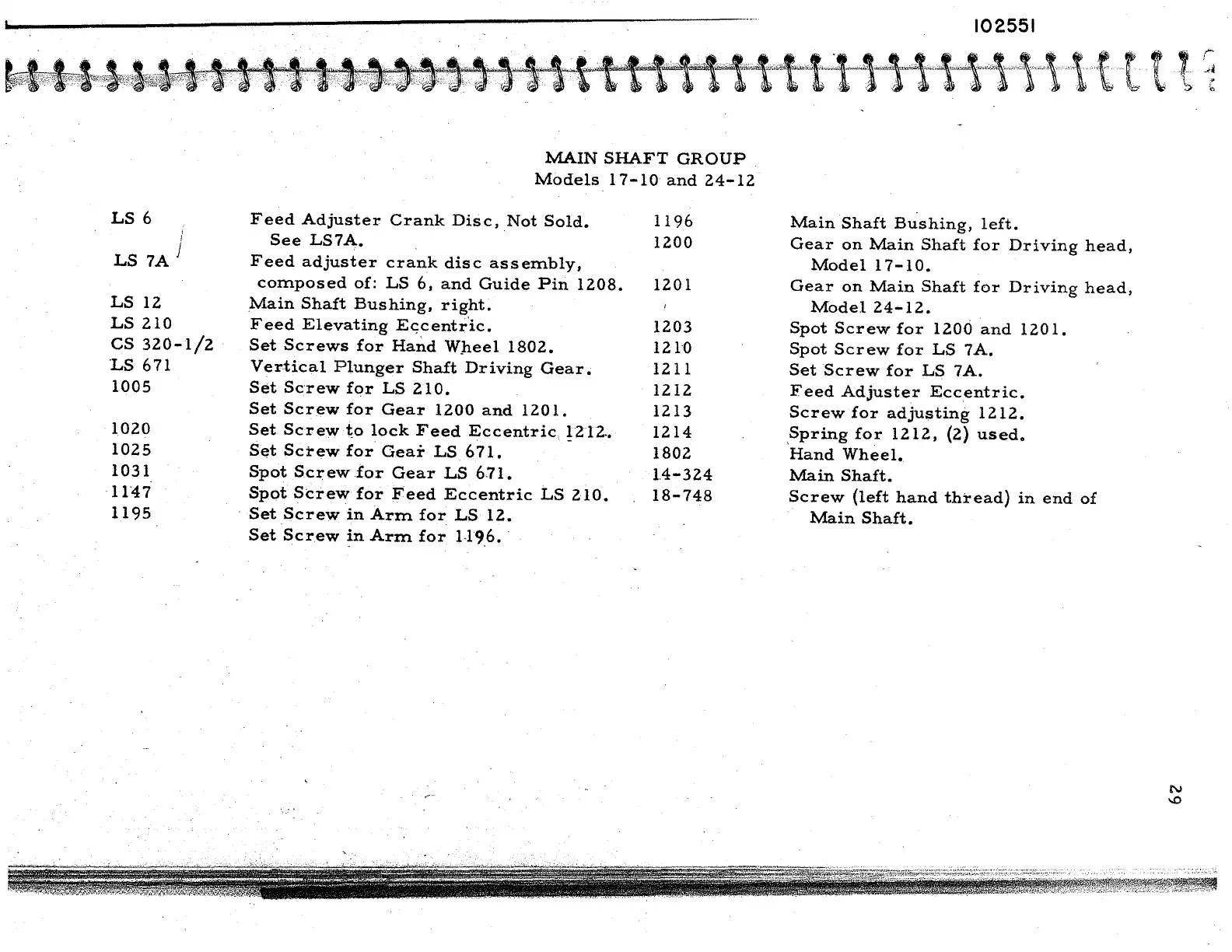

MAIN SHAFT GROUP
Models 17-10 and 24-12
Feed Adjuster Crank Disc, Not Sold.
1196
See LS7A.
1200
Feed adjuster crank disc assembly,
composed of: LS 6, and Guide Pin 1208.
1201
Main Shaft Bushing, right.
Feed Elevating Ec;centr'ic.
1203
Set Screws for Hand Wheel 1802.
1210
Vertical Plunger Shaft Driving Gear.
1211
Set Screw for LS 210.
1212
Set Screw for Gear 1200 and 120 I.
1213
Set Screw ~o lock Feed Eccentric !212 .•
1214
Set Screw for Gear LS 671.
1802
Spot Sci:"eW for Gear LS 671.
14-324
Spot Screw for Feed Eccentric LS 210.
18-748
· Set Screw in Arm for LS 12.
Set Screw in Arm for 1-196.
Main Shaft Bushing, left.
Gear on Main Shaft for Driving head,
Model 17-10.
Gear on Main Shaft for Driving head,
Model 24-12.
Spot Screw for 1200 and 1201.
Spot Screw for LS 7A.
Set Screw for LS 7A.
Feed Adjuster Eccentric.
Screwfor adjusting 1212.
Spring for 1212, (2) used.
Hand Wheel.
Main Shaft.
Screw (left hand thread) in end of
Main Shaft.
' ~ ,...
