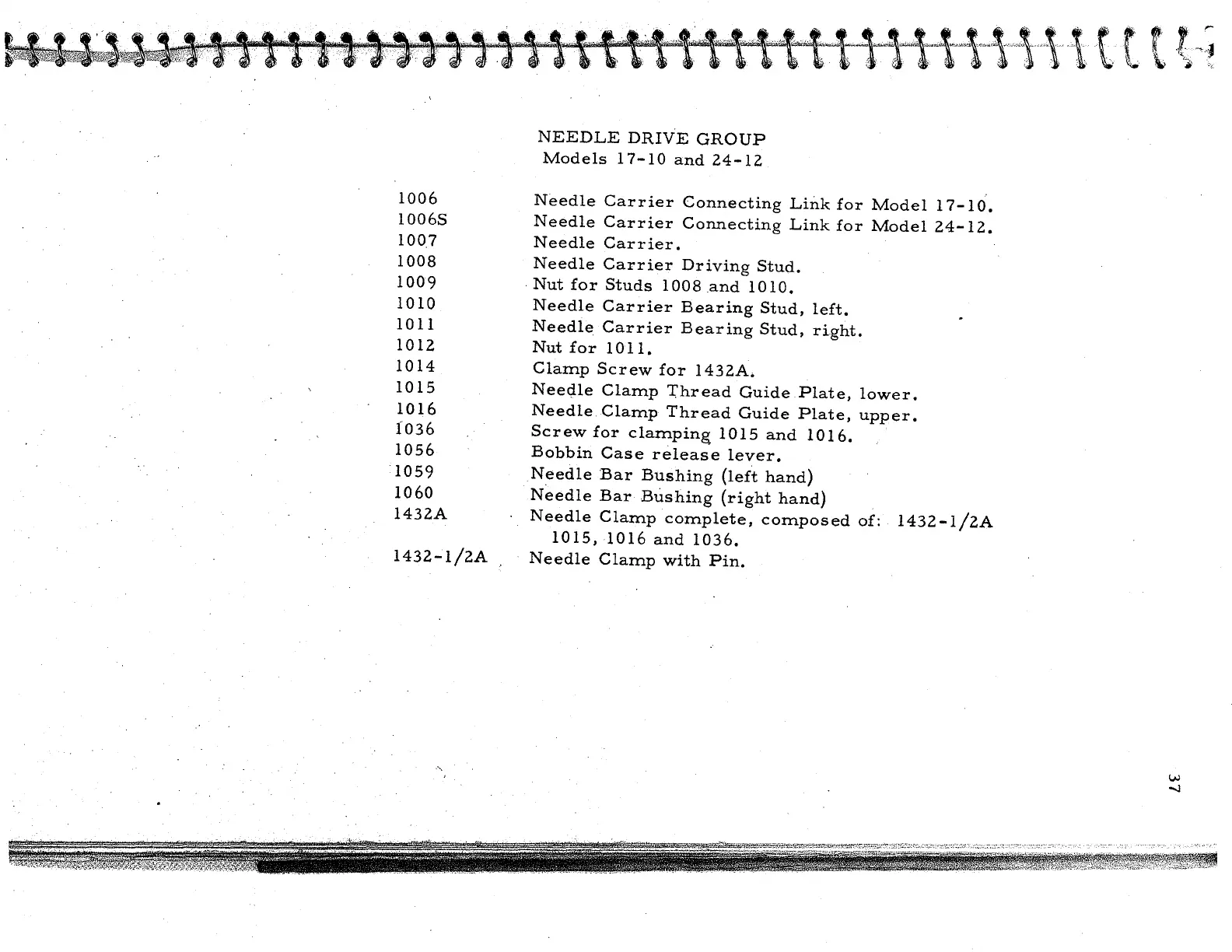

NEEDLE DRIVE GROUP
Models 17-10 and 24-12
Needle Carrier Connecting Link for Model 17-10.
Needle Carrier Connecting Link for Model 24-12.
Needle Carrier.
Needle Carrier Driving Stud.
·Nut for Studs 1008 and 1010.
Needle Carrier Bearing Stud, left.
Needle Carrier Bearing Stud, right.
Nutfor lOll.
Clamp Screw for 1432A.
Needle Clamp 'rhread Guide Plate, lower.
Needle Clamp Thread Guide Plate, upper.
Screw for clamping; 1015 and 1016.
Bobbin Case release lever.
Needle Bar Bushing (left hand)
Needle Bar Bushing (right hand)
Needle Clamp complete, composed of: 1432-l/2A
1015, 1016 and 1036.
Needle Clamp with Pin.
